Garantija
36 mėn.
Pristatymas iš Lietuvos
per 3 - 5*
d. d.
Overview
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
| 10G support | No |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cable types supported | Cat3/Cat4/Cat5/Cat5e |
| Certification | CE, FCC, RoHS |
| DC input voltage | 53.5 V |
| Depth | 126 mm |
| Flow control support | Yes |
| Forwarding rate | 14.88 Mpps |
| Heat dissipation | 261.66 BTU/h |
| Height | 26 mm |
| Jumbo frames | 16000 |
| LED indicators | Yes |
| MAC address table | 4000 entries |
| Model name | LS1210GP |
| Networking standards | IEEE 802.1p/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Package type | Box |
| Power consumption (max) | 76.96 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Power source | DC/PoE |
| Power supply included | Yes |
| Product colour | Black |
| Product Net Weight | 1 kg |
| Quality of Service (QoS) support | Yes |
| SFP module slots quantity | 1 |
| Shipping Box Depth | 32 cm |
| Shipping Box Height | 24 cm |
| Shipping Box Weight | 1.2 kg |
| Shipping Box Width | 7 cm |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |

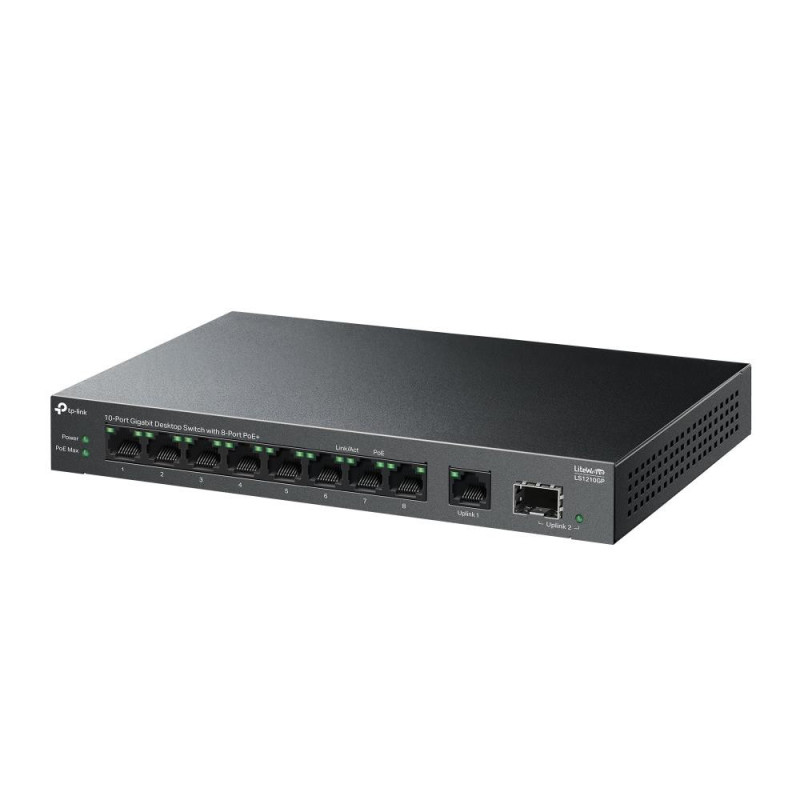

| Summary | TP-Link LiteWave 10-Port Gigabit Desktop Switch with 8-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE.... DC input voltage: 53.5 V. Power over Ethernet (PoE) |
| Switch type | Unmanaged |
| Switching capacity | 20 Gbit/s |
| Total Power over Ethernet (PoE) budget | 61 W |
| Unit Box Height | 0.24 |
| Unit Box Length | 0.32 |
| Unit Box Width | 0.07 |
| Unit Calculated Volume | 0.005376 cubm |
| Unit Calculated Weight | 1.2 kg |
| Unit Depth | 32 cm |
| Unit Height | 24 cm |
| Unit Width | 7 cm |
| Units per Shipping Box | 1 |
| User guide | Yes |
| Vendor Homepage | https://www.tp-link.com/uk/business-networking/soho-switch-poe/ls1210gp/ |
| Width | 209 mm |
