What This Product Does

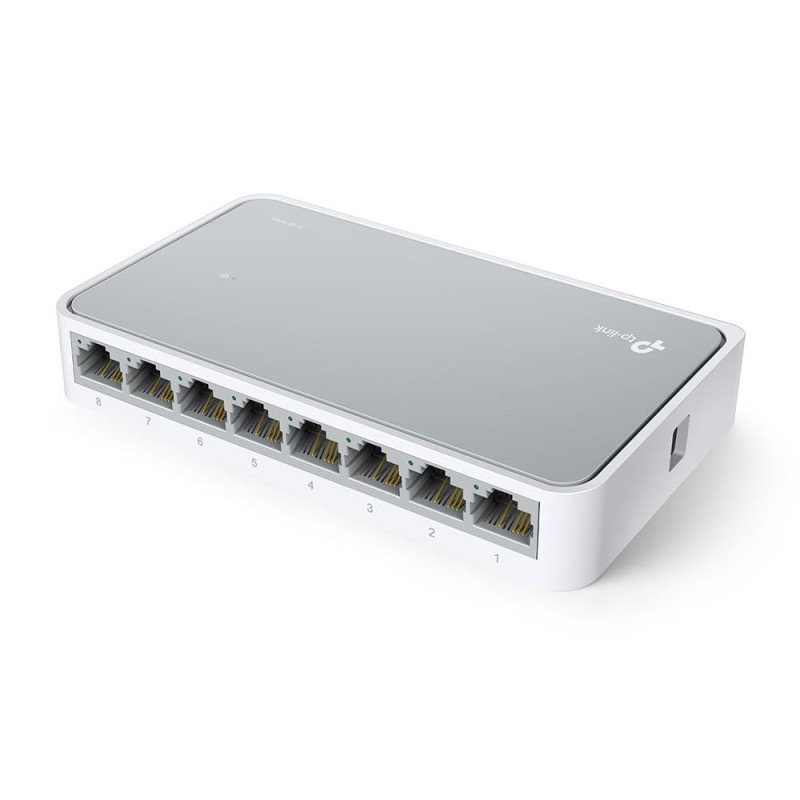

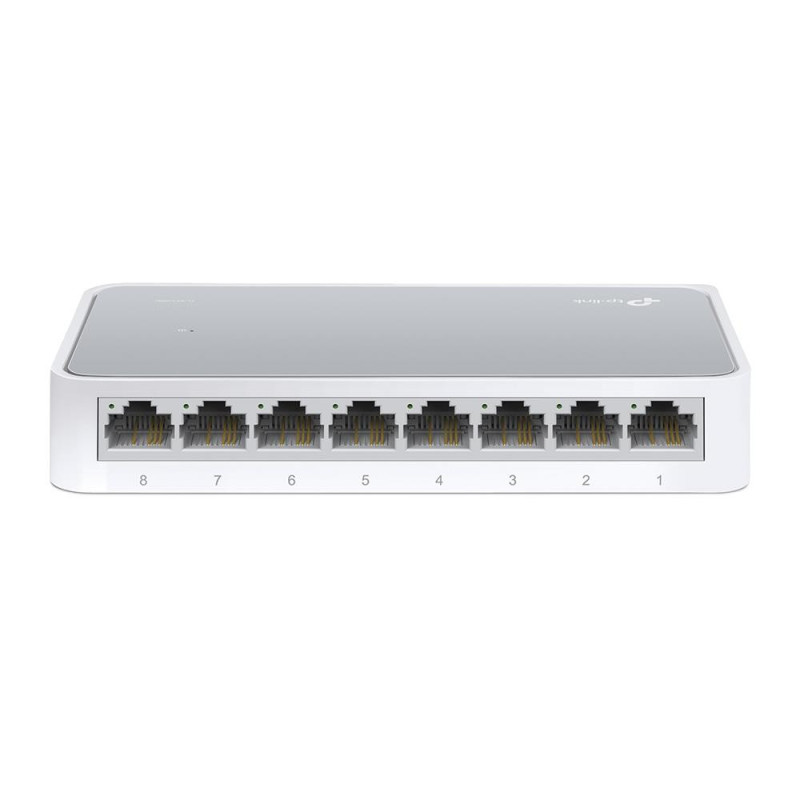

The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save power consumption, making it an eco-friendly solution for your business network.
High Performance
TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 2K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.
TP-Link Green Technology
This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
| 10G parama | Ne |
| AC įėjimo dažnis | 50/60 Hz |
| AC įėjimo įtampa | 100 - 240 V |
| Adreso lentelės dydis | 1000 įrašai |
| Atitikties sertifikatai | CE/Federalinė ryšių komisija (FCC)/RoHS |
| Aukštis | 22.5 mm |
| Auto MDI/MDI-X | Taip |
| Automatinis suderinimas (Auto-negotiation) | Taip |
| Be ventiliatoriaus | Taip |
| Bruto svoris | 0.263 kg |
| Darbo santykinės drėgmės diapazonas | 10 - 90 % |
| Darbo temperatūros diapazonas (TT) | 0 - 40 °C |
| Darniosios sistemos (DS) kodas | 85176990 |
| DC įėjimo įtampa | 5 V |
| Didinimas | Ne |
| Galios suvartojimas (maks.) | 2.05 W |
| Greito eterneto (varis) prievadų skaičius | 8 |
| Ilgis | 79 mm |
| Kintamosios srovės adapteris | Taip |
| LED indikatoriai | Taip |
| Maitinimas per Eternetą (PoE) | Ne |
| Maitinimo jungtis | DC lizdas |
| Maitinimo šaltinis | DC |
| Model name | TL-SF1008D |
| Naudojimo žinynas | Taip |
| Neto svoris | 0.13 kg |
| Pagrindinių perjungimo RJ-45 eterneto prievadų skaičius | 8 |
| Pagrindinių perjungimo RJ-45 eterneto prievadų tipas | Fast Ethernet (10/100) |
| Paketo buferio atmintis | 0.768 MB |
| Paketo svoris | 357 g |
| Pakuotės aukštis | 85 mm |
| Pakuotės gylis | 139 mm |
| Pakuotės plotis | 100 mm |
| Pakuotės tipas | "Box" |
| Palaikomi tinklo protokolai | CSMA/CD, TCP/IP |
| Perjungimo pajėgumas | 1.6 Gbit/s |
| Perjungimo tipas | Ne-valdomas |
| Pilnai abipusis (duplex) | Taip |
| Plotis | 134.5 mm |
| Pridėtas maitinimo šaltinis | Ne |
| Produkto spalva | Balta |
| Pusiau dvipusis | Taip |
| Sandėliavimo santykinis drėgmės diapazonas | 5 - 95 % |
| Sandėliavimo temperatūros norma (T-T) | -40 - 70 °C |
| Shipping Box Depth | 59 cm |
| Shipping Box Height | 45 cm |
| Shipping Box Weight | 15.8 kg |
| Shipping Box Width | 33 cm |
| Srauto kontrolės palaikymas | Taip |
| Stovo montavimas | Ne |
| Summary | TP-Link TL-SF1008D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3x. DC input voltage: 5 V. Power connector: DC-in jack |
| Tinklo standartai | IEEE 802.3/IEEE 802.3ab/IEEE 802.3x |
| Tvarumo reikalavimų laikymasis | Taip |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.14 |
| Unit Box Width | 0.085 |
| Unit Brutto Volume | 0.00146 cubm |
| Varinių eterneto kabelių technologija | 100BASE-TX/10BASE-T |
| Vendor Homepage | https://www.tp-link.com/us/home-networking/8-port-switch/tl-sf1008d/ |
| Vieneto aukštis | 10 cm |
| Vieneto gylis | 14 cm |
| Vieneto plotis | 8.5 cm |
| Vienetų skaičius vienoje siuntimo dėžėje | 60 |
| Įvesties srovė | 0.6 A |
| Šilumos sklaida | 6.99 BTU/h |
| "Store-and-forward" funkcija | Taip |
