With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes / residences, small-sized retail stores, and other small and medium-sized enterprises.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion Detection (General) technology triggers alarm or records.
Smart Illumination
Dahua Smart Illumination technology can display image in the environment of low illuminance or completely dark environment. According to the distance of the targets, the camera adjusts
Illuminations intensity automatically to display the details of the moving target.
Cyber Security
Dahua network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device.
Protection (IP67,wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

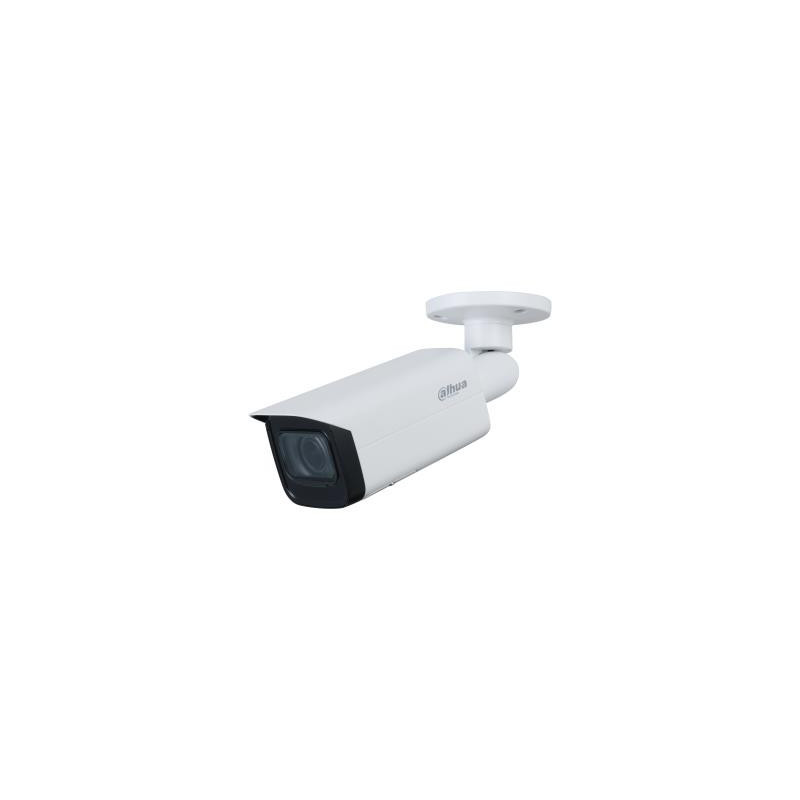

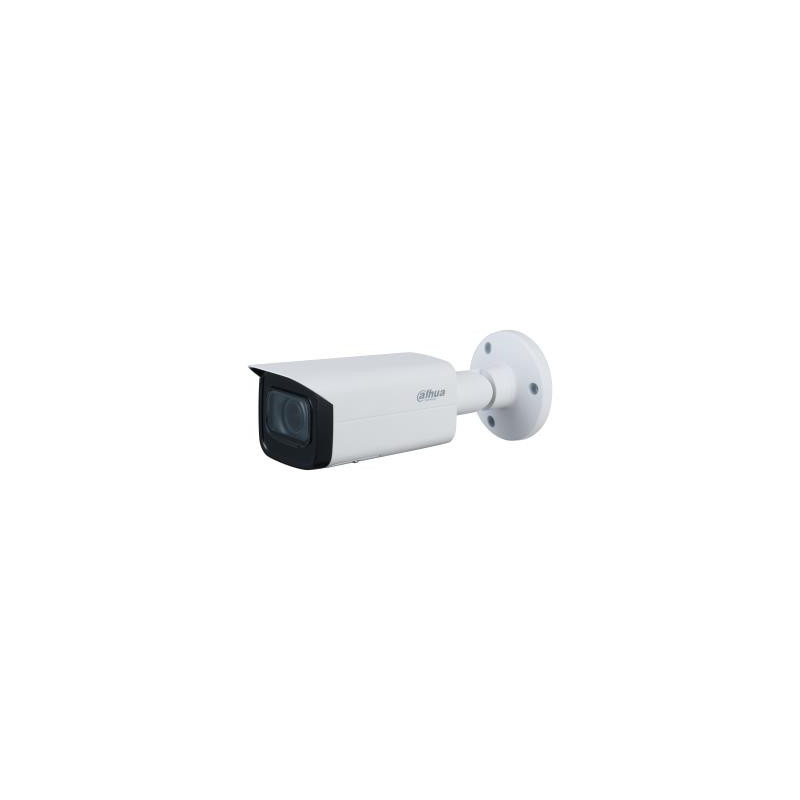

| Summary | Dahua Technology Entry IPC-HFW1230T-ZS-S5. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.0005 lx, Angle of rotation: 360°, Tilt angle range: 0 - 90°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 2.8 - 12, Focus: Motorized/Manual, Identify distance: 13 m |
| Vendor Homepage | https://www.dahuasecurity.com/mena/products/All-Products/Network-Cameras/Entry-Series/2MP/IPC-HFW1230T-ZS-S5 |
| Unit Box Height | 0.16 |
| Unit Box Length | 0.31 |
| Unit Box Width | 0.145 |
| Form factor | Bullet |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | Black/White |
| Auto pan mode | Yes |
| Certification | CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Maximum operating distance | 50 m |
| Placement supported | Outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Adjustment shutter speed | Auto/Manual |
| Angle of rotation | 360 ° |
| Camera pan control | Yes |
| Camera shutter speed | 1/3 s-1/100,000 s |
| Camera tilt control | Yes |
| Minimum illumination | 0.0005 lx |
| Pan range | 0 - 360 ° |
| Tilt angle range | 0 - 90 ° |
| White balance | Auto |
| Optical sensor size | 1/2.8 " |
| Sensor type | CMOS |
| Closest focusing distance | 1.2 m |
| Detect distance (tele) | 131 m |
| Detect distance (wide) | 48 m |
| Focal length range | 2.8 - 12 mm |
| Focus | Motorized/Manual |
| Identify distance | 13 m |
| Identify distance (tele) | 13 m |
| Identify distance (wide) | 5 m |
| Normal focusing range | 1.2 m |
| Number of lenses | 1 |
| Observe distance (tele) | 52 m |
| Observe distance (wide) | 19 m |
| Recognize distance (tele) | 26 m |
| Recognize distance (wide) | 10 m |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 50 m |
| Number of illumination LEDs | 2 |
| Back Light Compensation (BLC) | Yes |
| Bit rate | H.264: 32 kbps-6144 kbps, H.265: 12 kbps-6144 kbps |
| Bit rate control | Constant Bit Rate (CBR),Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/352 x 240/352 x 288/640 x 480 (VGA)/704 x 480/704 x 576 |
| Supported video modes | 1080p/720p |
| Total megapixels | 2 MP |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video streaming | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Number of users | 6 user(s) |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast; DDNS |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Internal memory | 128 MB |
| Maximum memory card size | 256 GB |
| ROM capacity | 16 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| DC output voltage | 12 |
| Power consumption (max) | 4.3 W |
| Power consumption (Power over Ethernet (PoE)) | 5.5 W |
| Power consumption (typical) | 1.8 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -30 - 60 °C |
| Diameter | 90.4 mm |
| Height | 244.1 mm |
| Weight | 860 g |
| Package weight | 1120 g |
| Number of cameras | 1 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.007192 cubm |
| Unit Calculated Weight | 1.08 kg |
