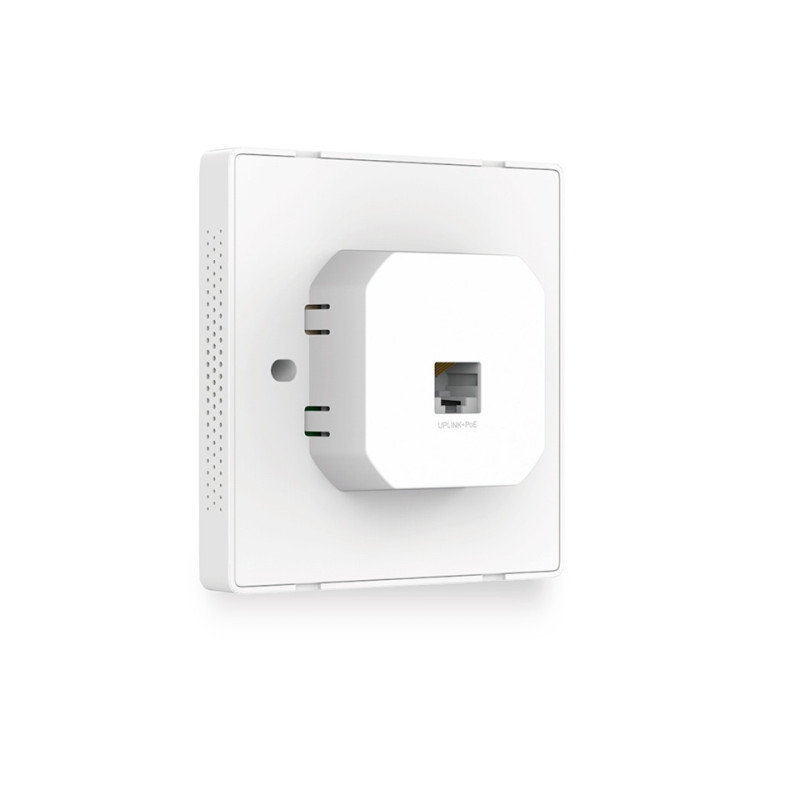

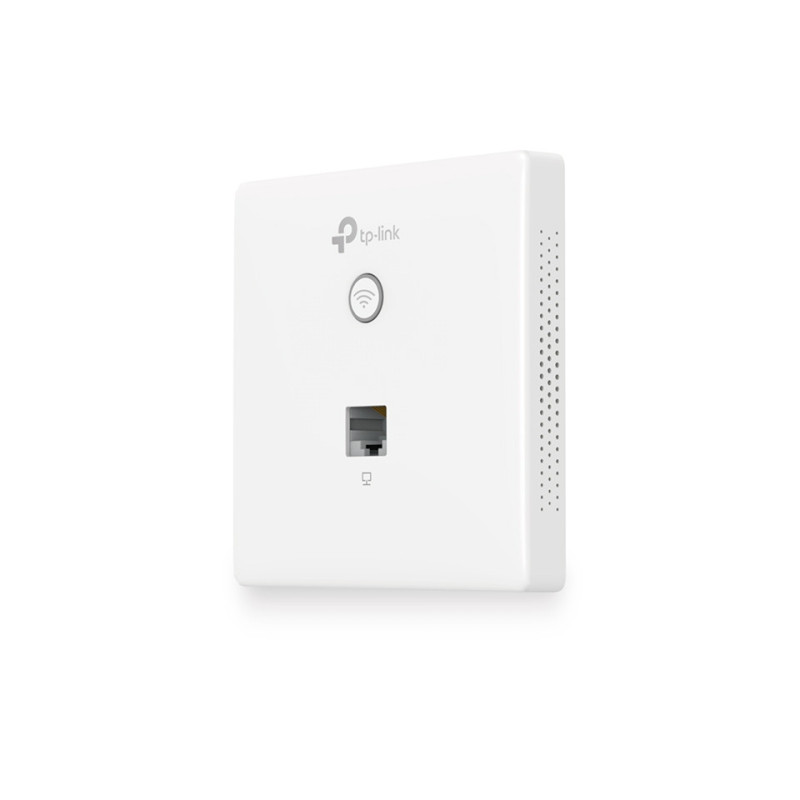

TP-Link 300Mbps belaidis N sieninis prieigos taškas

Easy-mount construction enables easy installation into any standard EU-type data wall-box

Sleek, compact design blends perfectly with the existing interior style

Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs

Support Power over Ethernet(802.3af) for convenient and affordable installation

300Mbps wireless data rate for uninterrupted wireless connection

Captive portal provides one convenient method of authentication for Wi-Fi guests

Access Control restricts or allows the client to access the specified network segment

Reboot Schedule enables all the APs to be rebooted automatically within a specified time

WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN

Compatible with 802.11 b/g/n products

QoS function prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic

Multiple operating modes satisfy different application conditions including managed AP and standalone AP modes

Load balance ensures large numbers of users have smooth network experiences in large business networks

Multi-SSID divides multiple wireless network for different users

Rate limit on per SSID to restrict the bandwidth of each client

HARDWARE FEATURES

Interface: 10/100Mbps Ethernet (RJ-45) Port *2

Button: LED/Wi-Fi Button、RESET

Power Supply: PoE(IEEE 802.3af)

Power Consumption: 2.8 W

Dimensions ( W x D x H ): 3.4×3.4×1.2 in. (86.8*86.8*30.2 mm)

Antenna Type: Internal 2*1.8dBi Omni

Mounting: Wall Plate Mounting

Physical Security Lock : -

Watch Dog: Yes

WIRELESS FEATURES

Wireless Standards: IEEE 802.11n/g/b/a

Frequency: 2.4GHz

Signal Rate:

11n: Up to 300Mbps(dynamic)

11g: Up to 54Mbps(dynamic)

11b: Up to 11Mbps(dynamic)

Transmit Power:

CE： <15dBm(2.4GHz)

Wireless Functions:

Multiple SSIDs（Up to 8 SSIDs）

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

Load Balance

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security:

Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

64/128/152-bit WEP / WPA / WPA2-Enterprise,

WPA-PSK / WPA2-PSK

MANAGEMENT

EAP Controller Software: Yes

Email Alerts: Yes

LED ON/OFF Control: Yes

Management MAC Access Control: Yes

SNMP: v1,v2c

System Logging Local/Remote Syslog: Local/Remote Syslog

Telnet: Yes

Web-based Management: HTTP/HTTPS

L3 Management: Yes

Multi-site Management: Yes

Management VLAN: Yes

OTHERS

Certification: CE, RoHS

Package Contents:

300Mbps Wireless N Wall-Plate Access Point EAP115-Wall

Installation Guide

Mounting Screw

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment:

Operating Temperature: 0 ~40 (32 ~104 )

Storage Temperature: -40 ~70 (-40 ~158 )

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
