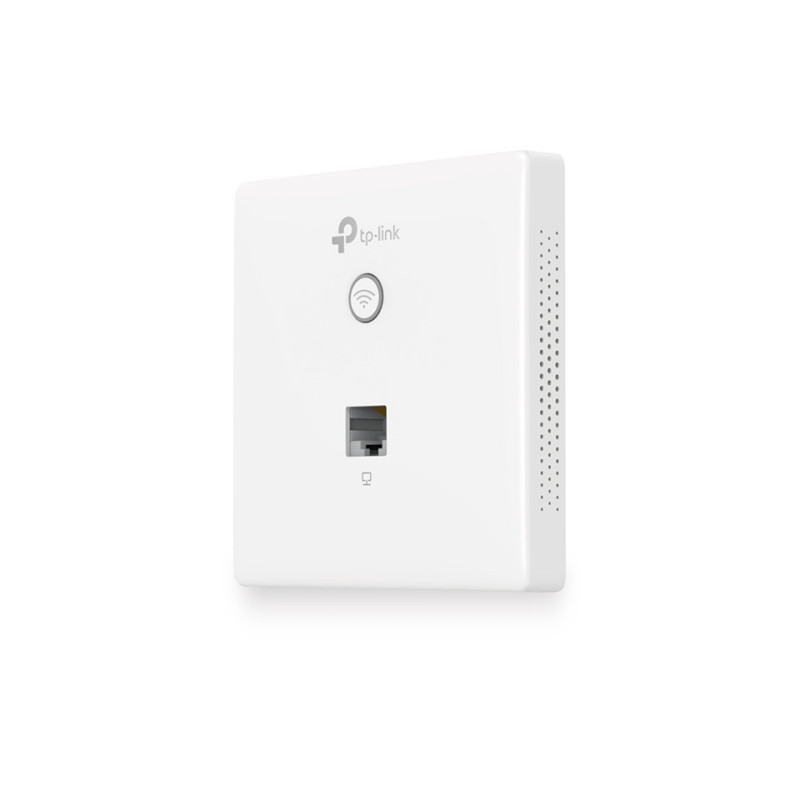

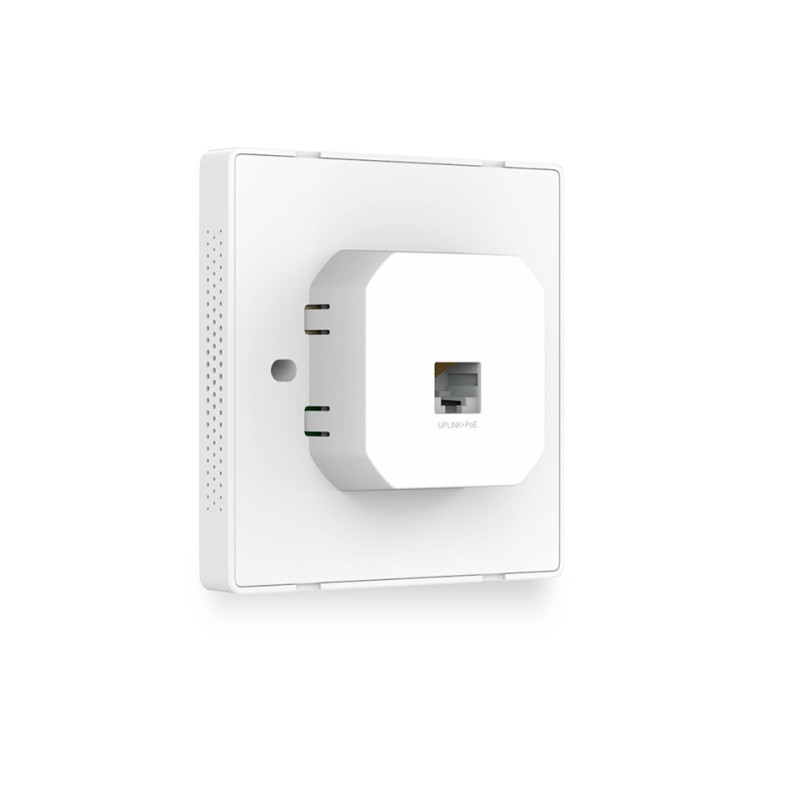

TP-LINK 300Mbps Wireless N Wall-Plate Access Point

Easy-mount construction enables easy installation into any standard EU-type data wall-box Sleek, compact design blends perfectly with the existing interior style Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs Support Power over Ethernet(802.3af) for convenient and affordable installation 300Mbps wireless data rate for uninterrupted wireless connection Captive portal provides one convenient method of authentication for Wi-Fi guests Access Control restricts or allows the client to access the specified network segment Reboot Schedule enables all the APs to be rebooted automatically within a specified time WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN Compatible with 802.11 b/g/n products QoS function prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic Multiple operating modes satisfy different application conditions including managed AP and standalone AP modes Load balance ensures large numbers of users have smooth network experiences in large business networks Multi-SSID divides multiple wireless network for different users Rate limit on per SSID to restrict the bandwidth of each client

HARDWARE FEATURES

Interface: 10/100Mbps Ethernet (RJ-45) Port *2 Button: LED/Wi-Fi Button、RESET Power Supply: PoE(IEEE 802.3af) Power Consumption: 2.8 W Dimensions ( W x D x H ): 3.4×3.4×1.2 in. (86.8*86.8*30.2 mm) Antenna Type: Internal 2*1.8dBi Omni Mounting: Wall Plate Mounting Physical Security Lock : - Watch Dog: Yes

WIRELESS FEATURES

Wireless Standards: IEEE 802.11n/g/b/a Frequency: 2.4GHz

Signal Rate: 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)

Transmit Power: CE： <15dBm(2.4GHz)

Wireless Functions: Multiple SSIDs（Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client

Wireless Security: Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

MANAGEMENT

EAP Controller Software: Yes Email Alerts: Yes LED ON/OFF Control: Yes Management MAC Access Control: Yes SNMP: v1,v2c System Logging Local/Remote Syslog: Local/Remote Syslog Telnet: Yes Web-based Management: HTTP/HTTPS L3 Management: Yes Multi-site Management: Yes Management VLAN: Yes

OTHERS

Certification: CE, RoHS

Package Contents: 300Mbps Wireless N Wall-Plate Access Point EAP115-Wall Installation Guide Mounting Screw

System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment: Operating Temperature: 0 ~40 (32 ~104 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
