TELTONIKA pramoninis Ethernet į 4G LTE IoT šliuzas

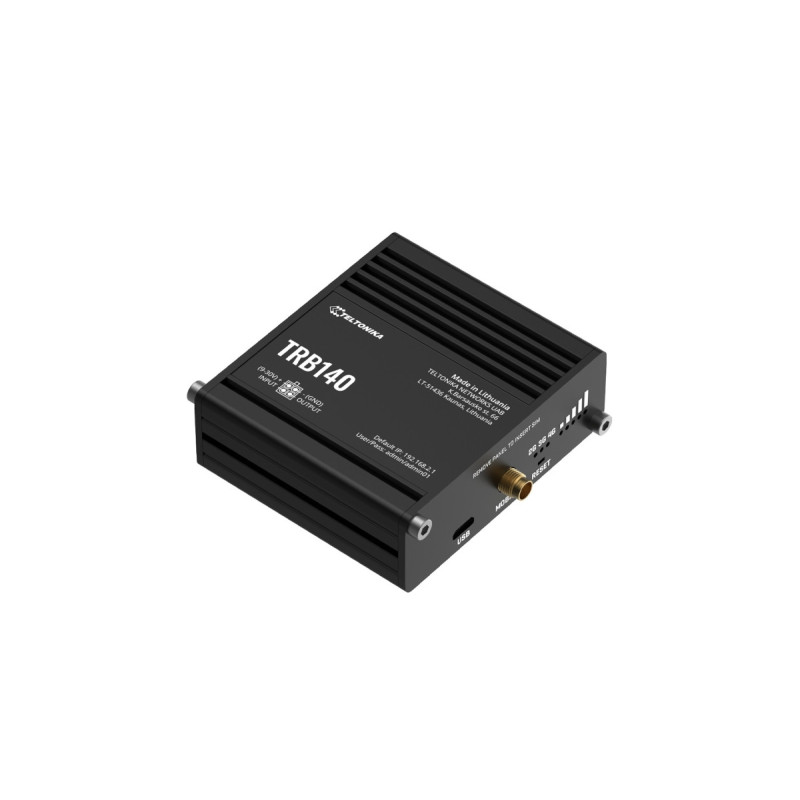

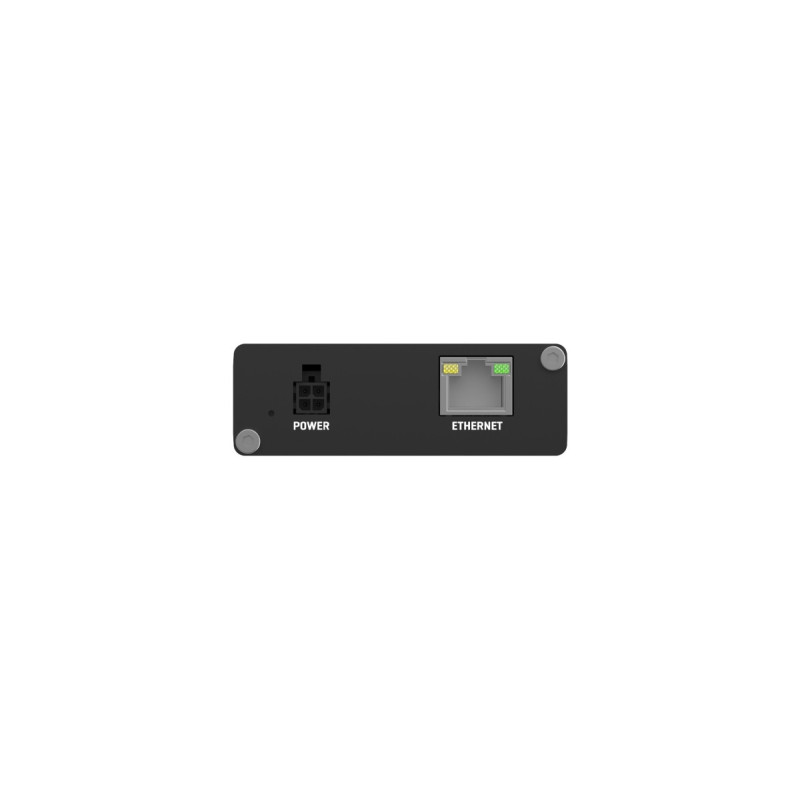

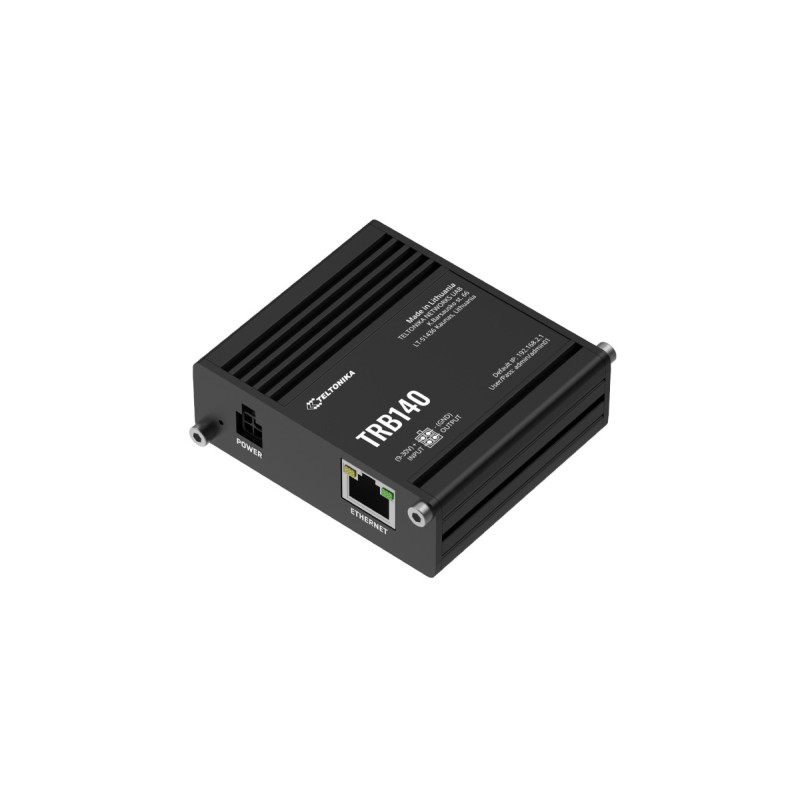

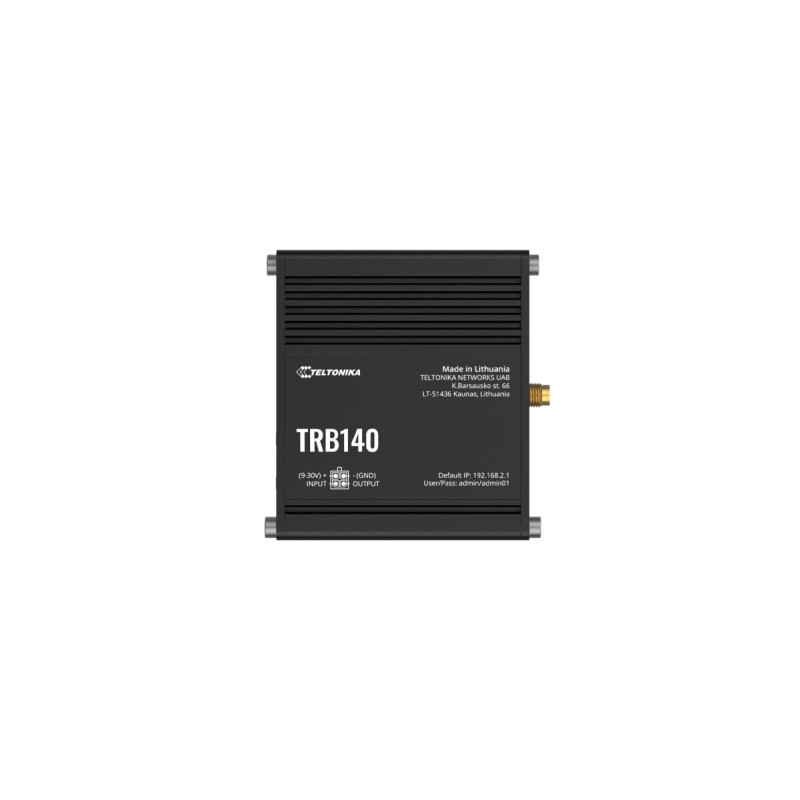

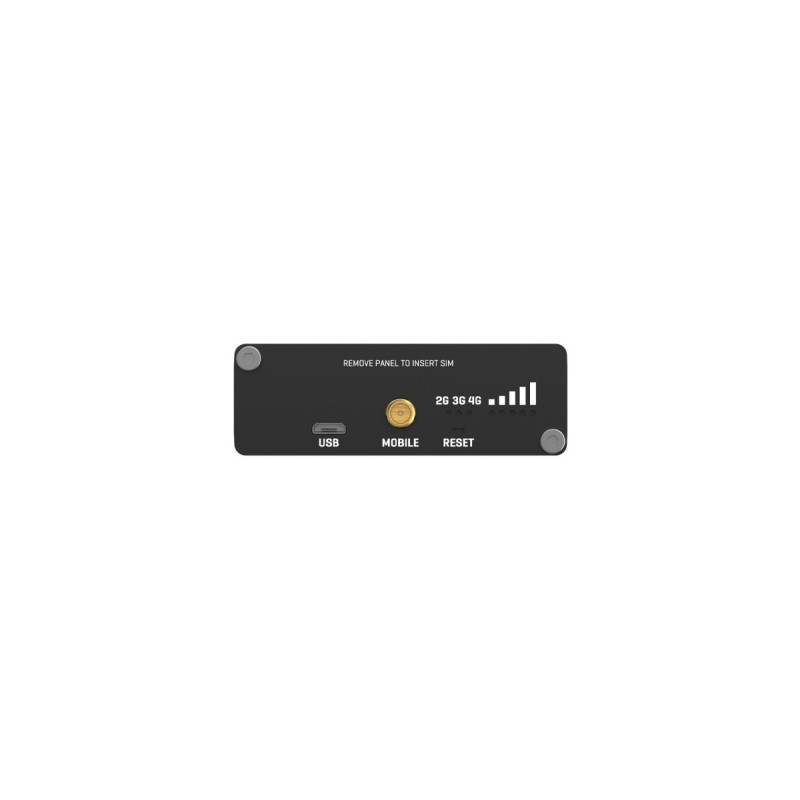

Industrial LTE Cat 4 Gateway Board TRB140 is equipped with a single Ethernet port, Digital Inputs/Outputs and micro-USB port. TRB140 compact design makes this Gateway perfect for an application where a sole gadget must be granted reliable Internet connectivity. TRB140 is engineered to be used in an Industrial application therefore it has a wide range of software features such as SMS control, Firewall, Open VPN, IPsec, RMS and FOTA support.

Learn more on wiki page

Hardware:• Mobile: LTE(Cat4)/3G/2G;

• SIM slot: Mini SIM (2FF);

• Antenna connector: 1 x SMA for LTE;

• Ethernet: 1 x 10/100/1000 Mbps;

• Input/Output: 2 x Digital Input/Output (configurable);

• CPU: ARM Cortex-A7 1.2 GHz CPU;

• RAM: 128 MB (50 MB available for userspace);

• Flash: 512 MB (70 MB available for userspace);

• Input voltage range: 9 - 30 VDC;

• Power connector: 4 pin industrial DC power socket;

• Configuration interface: Virtual NIC via Micro-USB connector;

• LED Indicators: Power, signal, network and data status LEDs.

Software:• Operating System: Linux OS with Yocto SDK (offering high software customisation);

• Network: NAT, Static/Dynamic routing, Firewall (port forward, traffic rules, custom rules), OpenVPN, DDNS ( > 25 service providers supported);

• Remote management: RMS Support, FOTA support, SSH, CLI, SMS Utilities (status/configuration);

• Status watchdogs: Ping reboot, periodic reboot;

• Additional features: Internet connectivity over USB virtual network interface.

Mechanical Environmental:• Operating temperature: -40° C to 75° C;

• Storage temperature: -45° C to 80° C;

• Operating humidity: 10% to 90% non-condensing;

• Storage humidity: 5% to 95% non-condensing;

• Dimensions: 60 mm x 70 mm x 18 mm;

• Weight: 35.8 g.

Standard package contains:• TRB140 board;

• Euro PSU;

• 1 x LTE antenna (magnetic mount, SMA male, 3 m cable);

• Micro-USB cable (0.8 m);

• LAN cable;

• QSG (Quick Start Guide);

• Packaging box.
