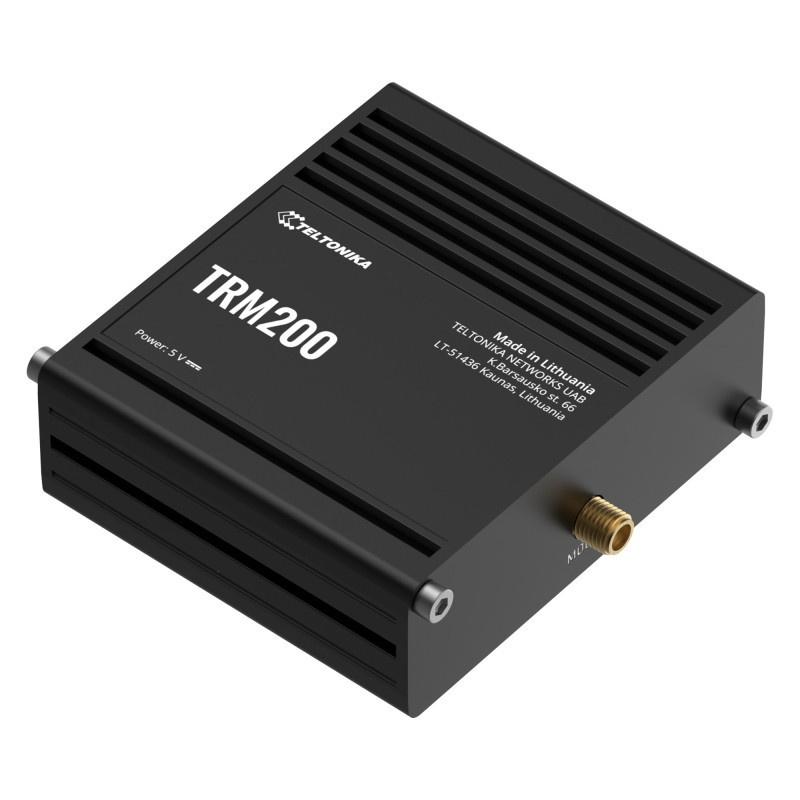

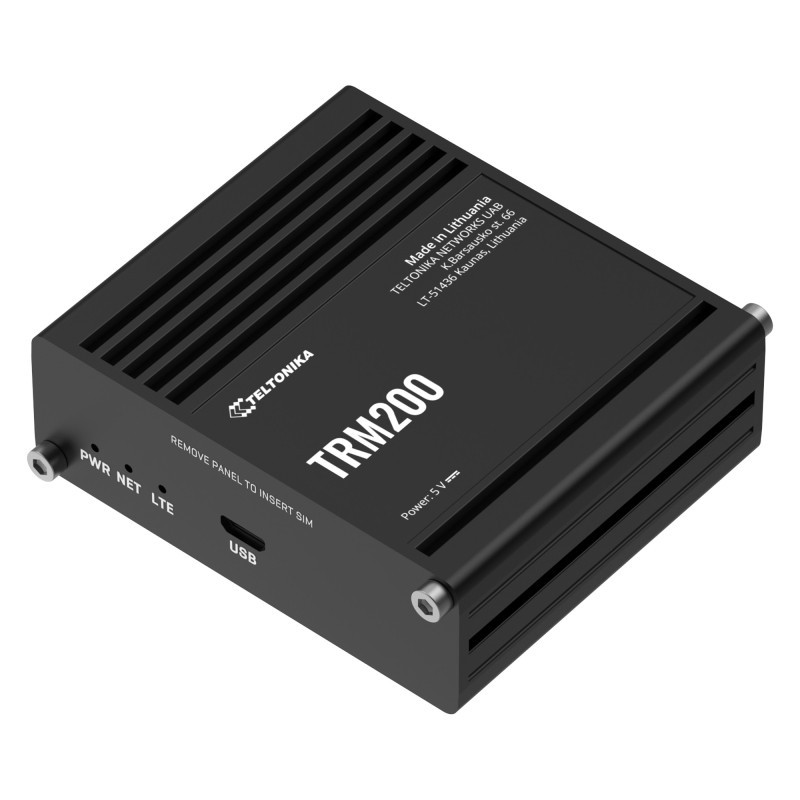

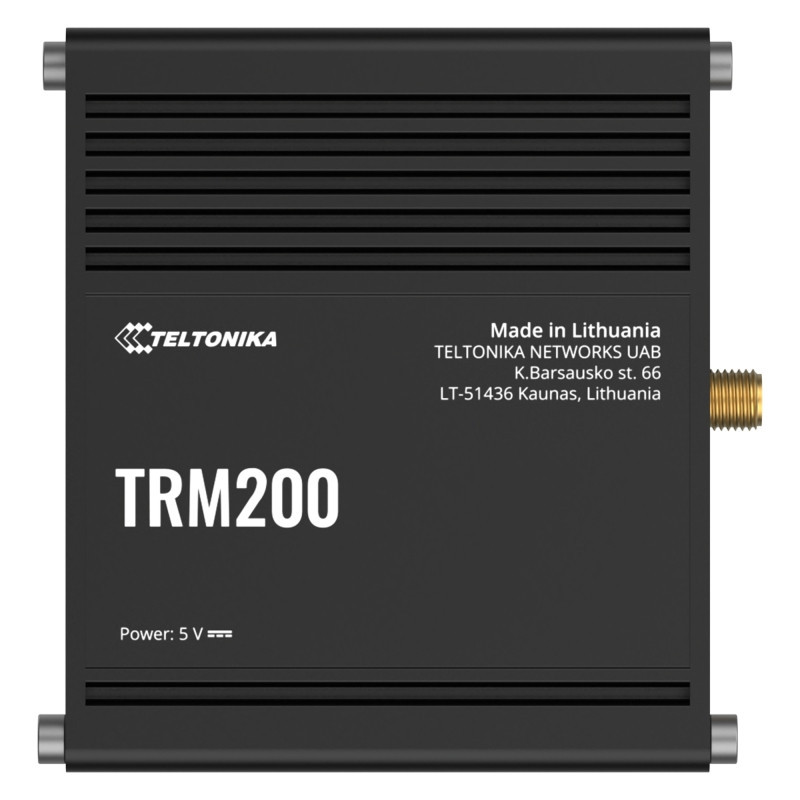

TELTONIKA pramoninis 4G Cat 4 modemas

TRM200 yra pramoninės klasės LTE Cat 4 modemas, užtikrinantis patikimą 4G ryšį su visišku atgaliniu suderinamumu 3G ir 2G tinklų palaikymui, užtikrinant sklandų veikimą įvairiose aplinkose. Su mikro USB jungtimi ir išorine antena, šis tvirtas modemas yra ekonomiškas sprendimas, leidžiantis pramoninei įrangai suteikti LTE ryšį.

MobileMobile module: 4G - Cat 4 up to 75 DL/50 UL Mbps, 3G - Up to 42 DL/5.76 UL Mbps, 2G - Up to 236.8 DL/ 236.8 UL kbps

3GPP Release: Release 9

PowerConnector: microUSB

Input voltage range: 5V - powered via microUSB

Power consumption: Idle: < 0.9 W, Max: < 3.2 W

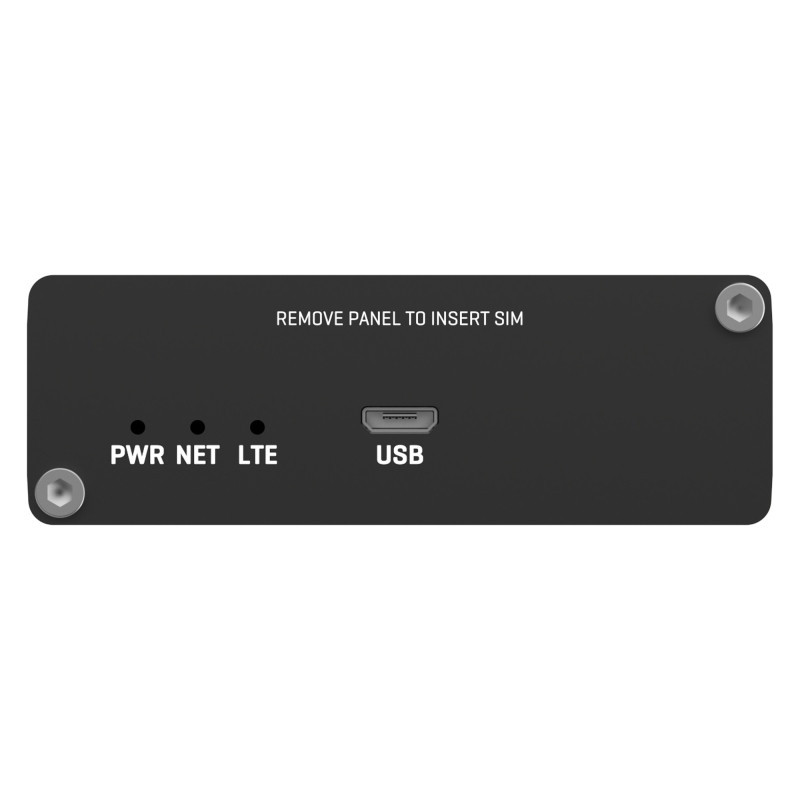

Physical InterfacesStatus LEDs: 1 x Power LED, 1 x Network LED, 1 x Mobile LED

SIM: 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V

Power: 1x microUSB

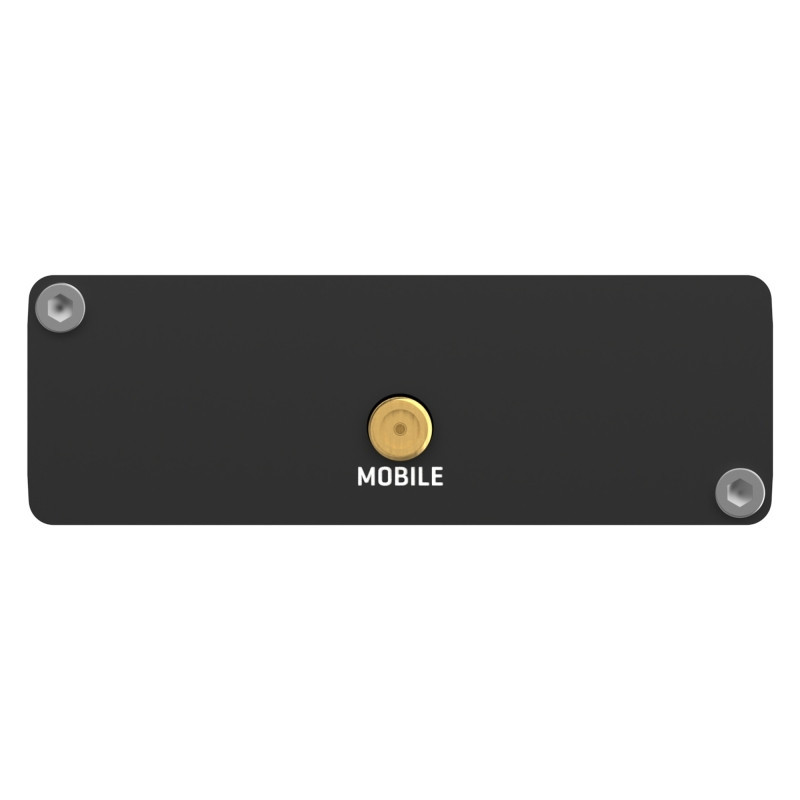

Antennas: 1 x SMA for Mobile

Physical SpecificationCasing material: Aluminium housing

Dimensions (W x H x D): 74.5 x 25 x 64.5 mm

Weight: 274 g

Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating EnvironmentOperating temperature: -40 °C to 75 °C

Operating humidity: 10% to 90% non-condensing

Ingress Protection Rating: IP30

TRM SoftwareTRM SOFTWARE USB Driver RUT#03: Windows 7/8/8.1/10, Linux 2.6 or later, Android 2.3/4.0/4.2/4.4/5.0/5.1/6.0/7.0

NDIS Driver: Windows 7/8/8.1/10

Regulatory Type ApprovalsRegulatory: CE, UKCA, CB, EAC, UCRF, WEEE

Standard package:

• TRM200


• 1x Mobile antenna (swivel, SMA male)


• Micro-USB cable (0.8 m)


• 1x hex key


• QSG (Quick Start Guide)


• Packaging box
