MIKROTIK lauko belaidis įrenginys su integruota antena SXTsq 5 ac

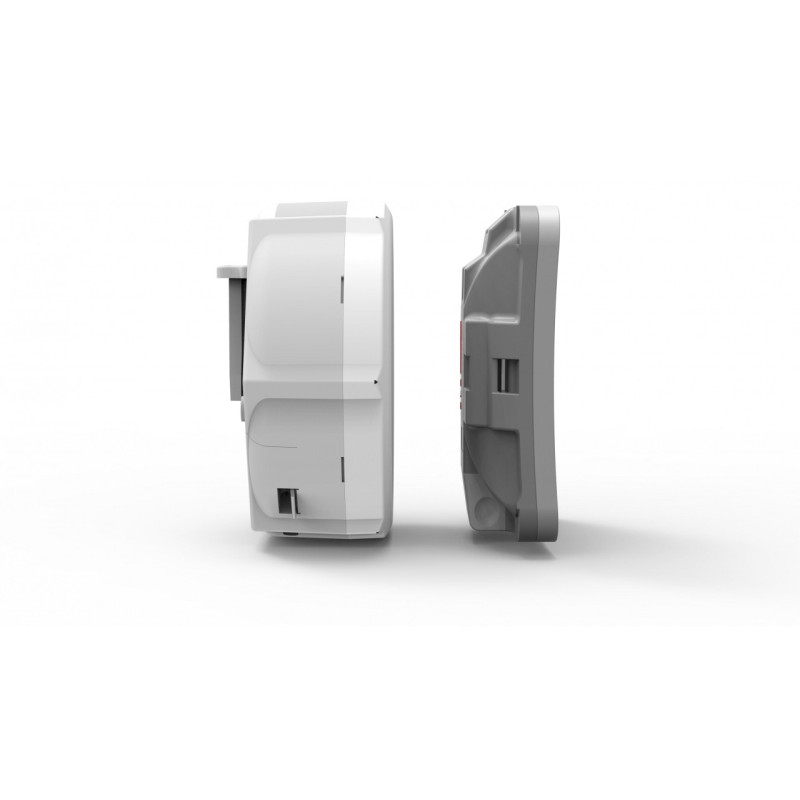

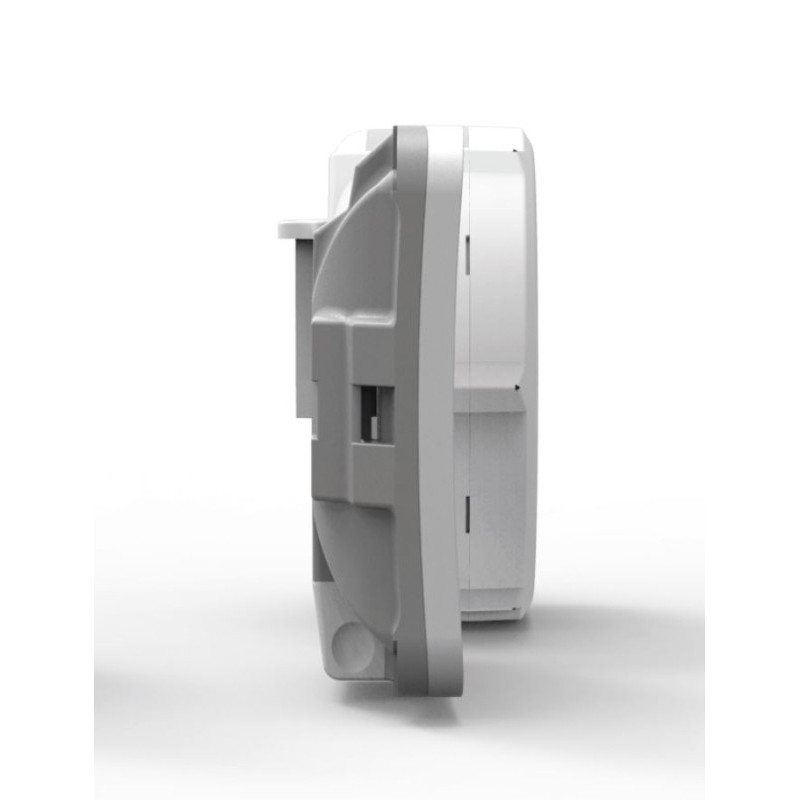

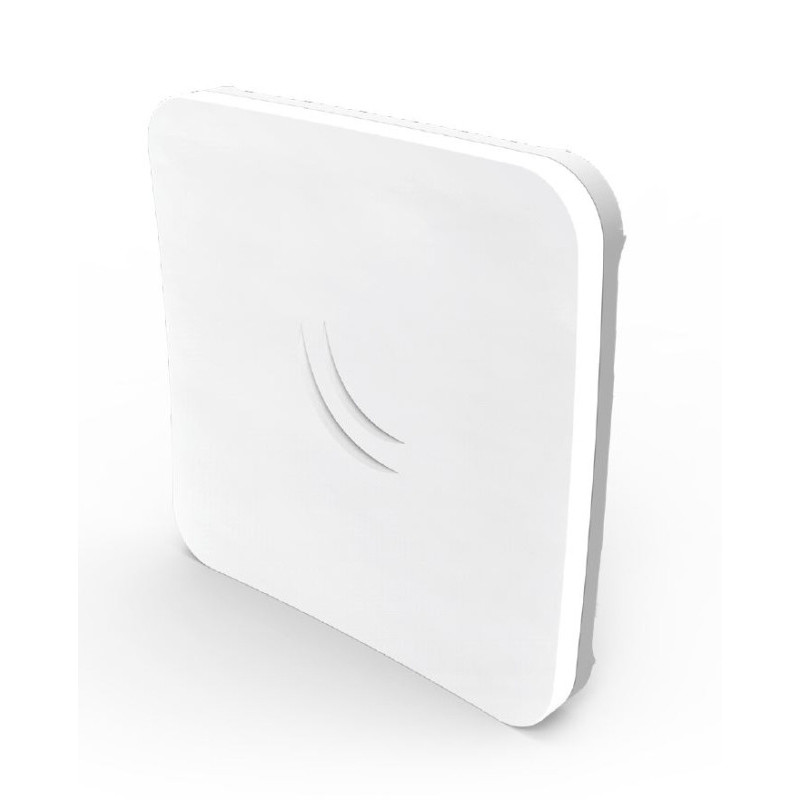

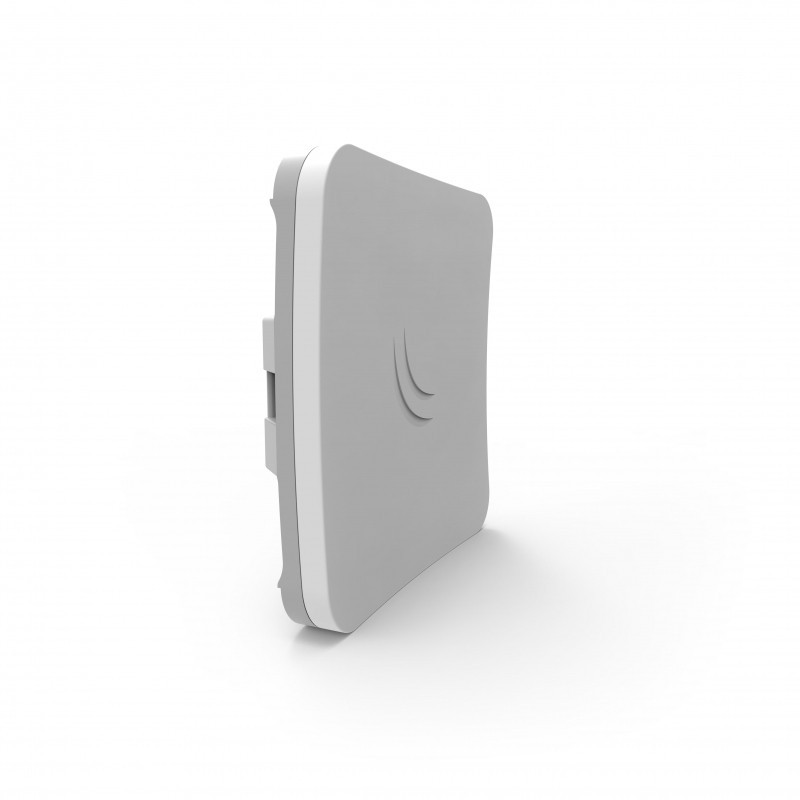

The SXTsq 5 ac is a compact and lightweight outdoor 5Ghz 802.11ac wireless device with an integrated antenna, perfect for point-to-point links or as a CPE unit. The device includes one 10/100/1000 Mbit Ethernet port to fully utilize speeds that 802.11ac protocol provides.

The SXTsq 5 ac retains a 16 dBi antenna like the SXT 5 ac, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner.

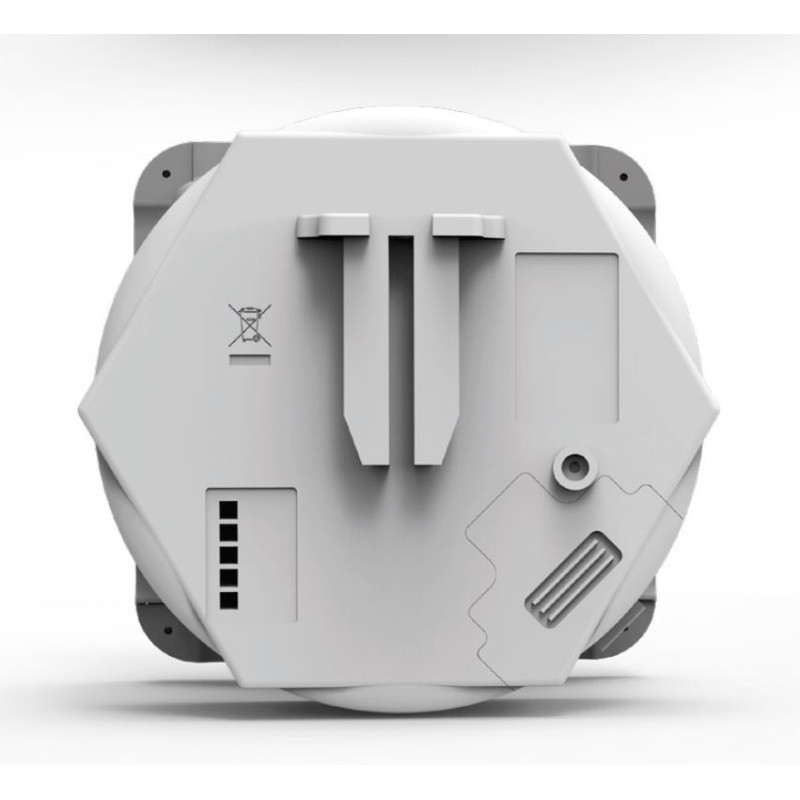

The weatherproof enclosure includes slots for directly attaching a hose clamp mount in three different mounting places, with ability to be mounted on horizontal railings. There is also an easily accessible grounding connection to protect it against lightning.

Product code: RBSXTsqG-5acD

CPU: IPQ-4018, 4 cores, nominal frequency 716 MHz

Size of RAM: 256 MB

Storage: 16 MB Flash

10/100/1000 Ethernet ports: 1

Wireless bands: 5 GHz radio

Wireless regulations: Specific frequency range may be limited by country regulations

Operating frequency: 5150 - 5875 MHz

Protocols: 802.11a/n/ac

Chains: 2

Antenna gain: 16 dBi

Antenna beam width: 23°

Wireless chip model: IPQ-4018

PoE in: Yes

Supported input voltage: 10 V - 30 V, passive PoE

Ingress protection: IP55

Dimensions: 129 x 129 x 34 mm; package: 255 x 180 x 45 mm

Weight Unit: 295 g; package: 492 g

Operating temperature: -40 to 70° C

Operating System: RouterOS (License level 3)

Max Power consumption: 7 W
