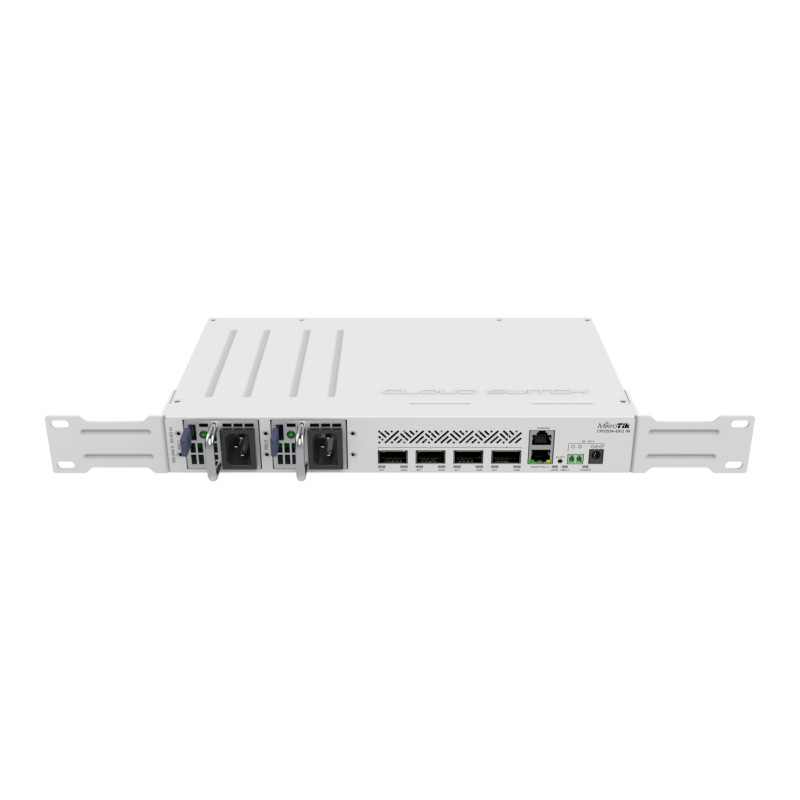

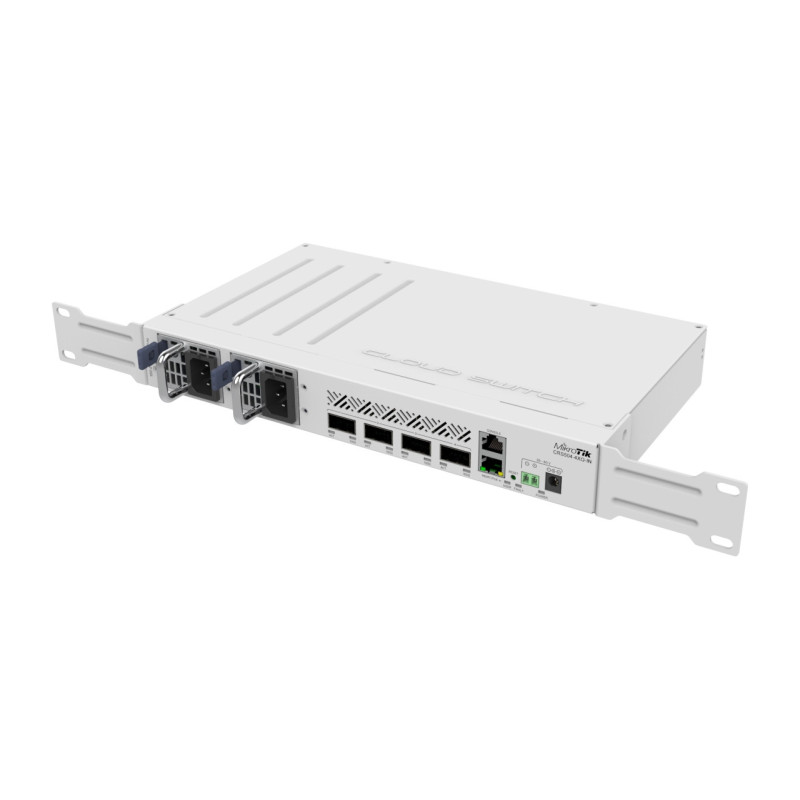

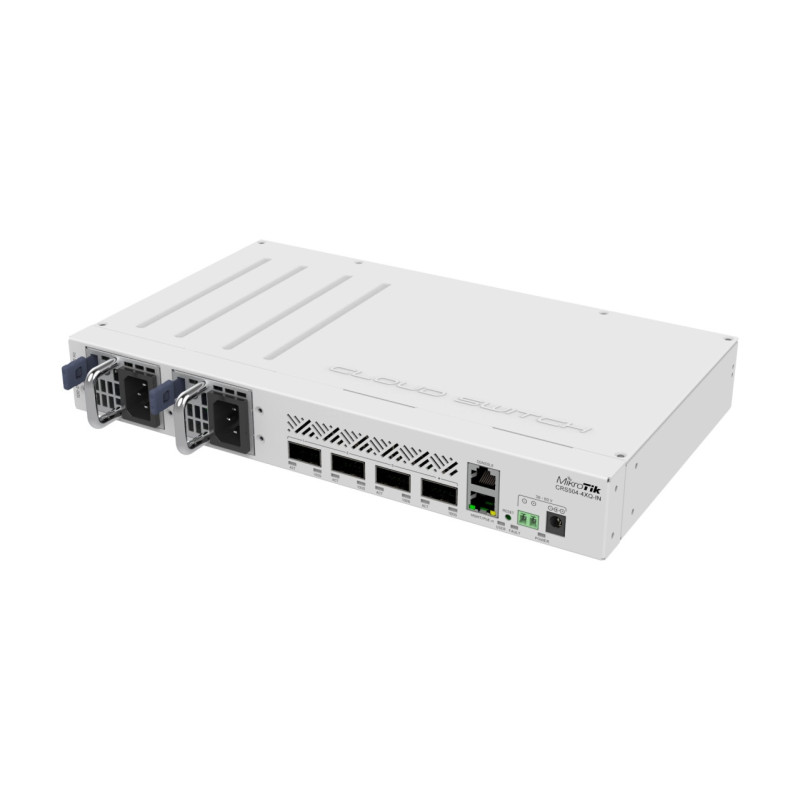

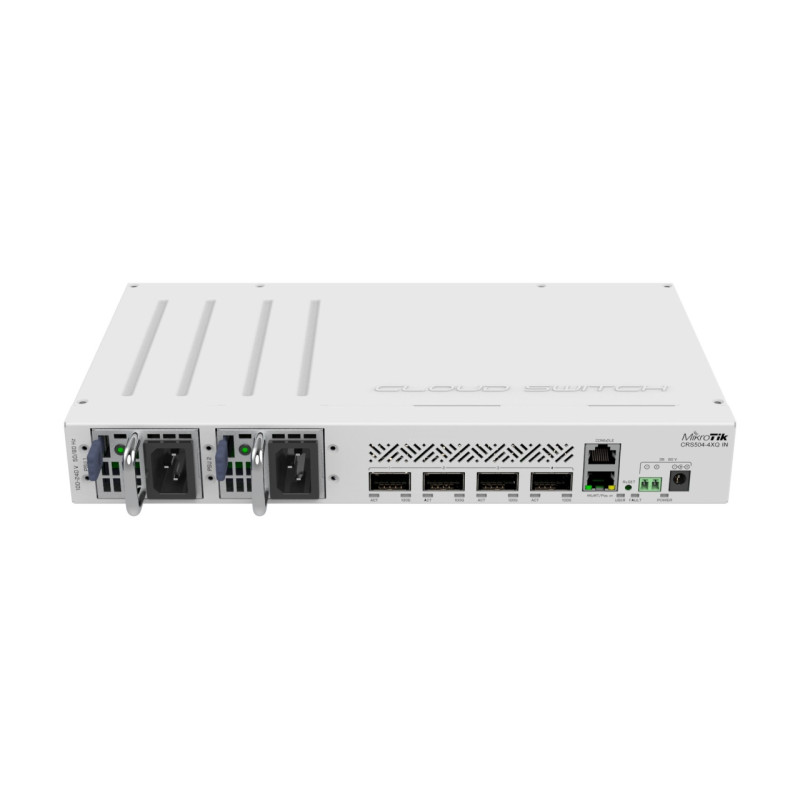

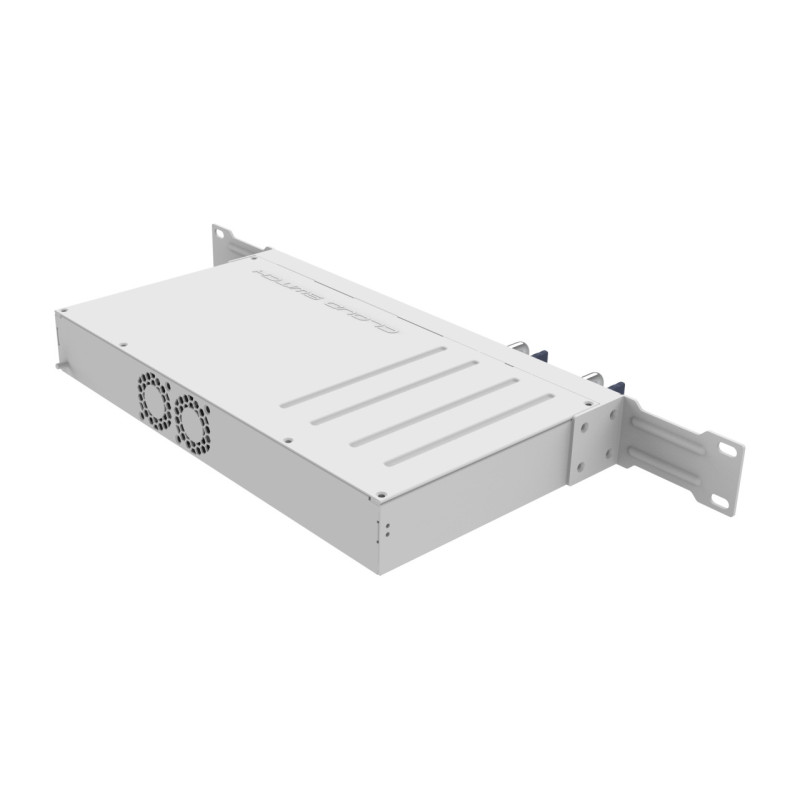

CRS504-4XQ-IN is a Mikrotik 100 Gigabit Managed Switch. The compact size and low power consumption of this device (only 25 W without additional devices connected!) are perfect for everyday expansion of 100 Gigabit networks. This speed is no longer reserved for data centers, ISPs or large offices. Now you too can upgrade your 10 or 25 Gigabit network and join the 'hundred club'!


Main features:



  • Four 100 Gigabit QSFP28 connectors that can be used to connect to other 100 Gigabit devices or to connect to multiple 25 Gigabit devices via a patch cable. Each connector connects to four 25 Gigabit lines, so you can connect up to 16 x 25 Gigabit devices.

  • The ability to connect various connections: one 100 Gigabit connection, another 40 Gigabit, a third 4x25 Gigabit, and a fourth even 10G or 1G cables. All this is perfectly managed by a powerfulMarvell DX4310switching chip.

  • The device also has an Ethernet connection for management purposes.


With multiple power options and wall mountability, this switch will be a great solution for any system administrator.


















































Product codeCRS504-4XQ-IN
ArchitectureMIPSBE
CPUQCA9531
CPU core count1
CPU nominal frequency650MHz
RouterOS license5
Operating System RouterOS
RAM size64MB
Storage size16MB
Storage typeFLASH
Tested ambient temperature-40°C to 70°C

Powering






















































Details
Number of AC inputs2
AC input range100-240
Number of DC inputs3 (DC jack, PoE-IN, 2-pin terminal)
DC jack input Voltage36-57 V
2-pin terminal input Voltage36-57 V
Frequency (Hz)47-63
Max power consumption41 W
Max power consumption without attachments25W
Cooling type2 fans
PoE in802.3 bt
PoE input voltage43-57 V

Ethernet














Details
10/100 Ethernet ports1

Fiber














Details
Number of 100G QSFP28 ports4

Peripherals














Details
Serial console portRJ45

Other






















Details
CPU temperature monitorYes
PCB temperature monitorYes
Voltage MonitorYes

Certifications Approvals


















Details
CertificationCE, EAC, ROHS
IP20
