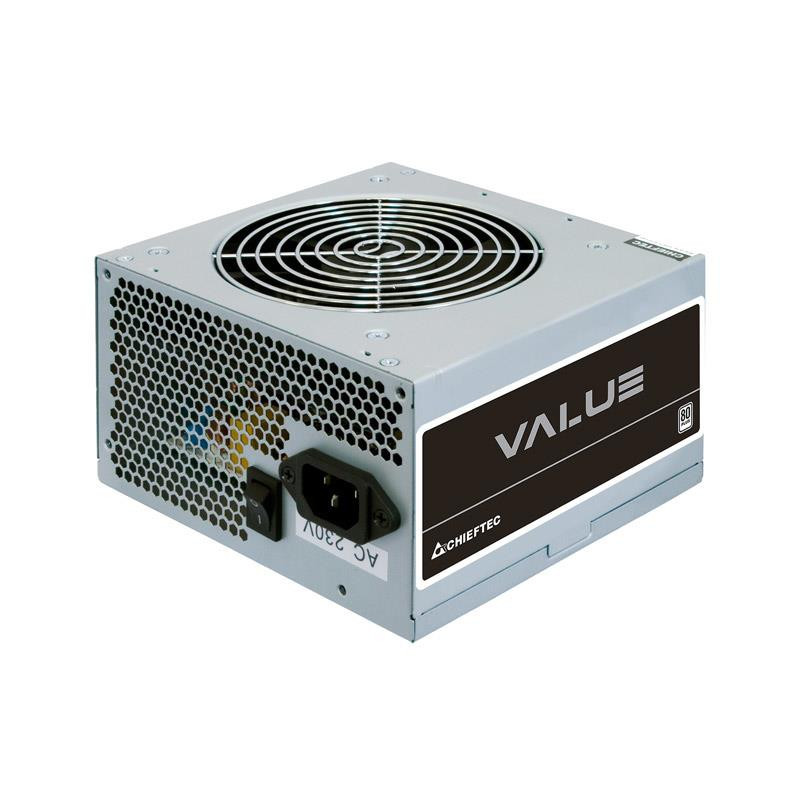

Maitinimo šaltinis, CHIEFTEC, 500 vatų, aktyvus PFC, APB-500B8
Prekės kodas: 2-4710713230569
Maitinimo šaltinis, CHIEFTEC, 500 vatų, aktyvus PFC, APB-500B8

Maitinimo šaltinis, CHIEFTEC, 500 vatų, aktyvus PFC, APB-500B8

Prekės kodas: 2-4710713230569
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
  • Įtraukti į patikusias prekes
  • Pridėta į patikusias prekes
  • Pašalinta iš patikusų prekių
Įtraukti į palyginimą
29,03 €
Prekė sandelyje

Garantija
24 mėn.

Pristatymas iš Lietuvos
per 3 - 5*
d. d.

Jūsų žinutė sėkmingai išsiųsta!
Užpildykite privalomus laukus*
Netaikoma

The APB-500B8 of the new VALUE SERIES offers both quality and efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with
installed thermal board, the PSU runs quietly on full load and provides REAL power, thereby providing all security features. Certified by CE, CB TÜV, EAC amongst many others, it's the VALUE choice!


80 PLUS certification 80 PLUS
AC input frequency 50 Hz
AC input voltage 230 V
ATX version 2.3
Cabling type Non-Modular
Certification CE, CB, TÜV, EAC
Combined power (+3.3V) 130 W
Combined power (+5V) 130 W
Combined power (+5Vsb) 12.5 W
Combined power (-12V) 3.6 W
Compliance certificates RoHS
Cooling type Active
Depth 140 mm
Efficiency 80 %
EPS power connector (8-pin) No
Fan diameter 120 mm
Floppy disk drive connector Yes
Harmonized System (HS) code 84733020
Height 87 mm
Input current 4 A
Max output current (+12V1) 24 A
Max output current (+12V2) 21 A
Max output current (+3.3V) 22 A
Max output current (+5V) 19 A
Max output current (+5Vsb) 2.5 A
Max output current (-12V) 0.3 A
Motherboard power connector 20+4 pin ATX
Number of fans 1 fan(s)
Number of SATA power connectors 3
On/off switch Yes
PCI Express power connectors (6+2 pin) 1
Peripheral (Molex) power connectors (4-pin) 2
Power factor 0.9
Power Factor Correction (PFC) type Active
Power protection features Over voltage/Overload/Short circuit/Under voltage
Power supply unit (PSU) form factor ATX
Product colour Silver
Purpose PC
Summary Chieftec Value APB-500B8. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE, CB, TÜV, EAC
Total power 500 W
Unit Box Height 0.15
Unit Box Length 0.22
Unit Box Width 0.09
Unit Calculated Volume 0.004455 cubm
Unit Calculated Weight 1.35 kg
Units per Shipping Box 10
Vendor Homepage https://www.chieftec.eu/products-detail/181/VALUE_SERIES/250/APB-500B8
Width 150 mm
