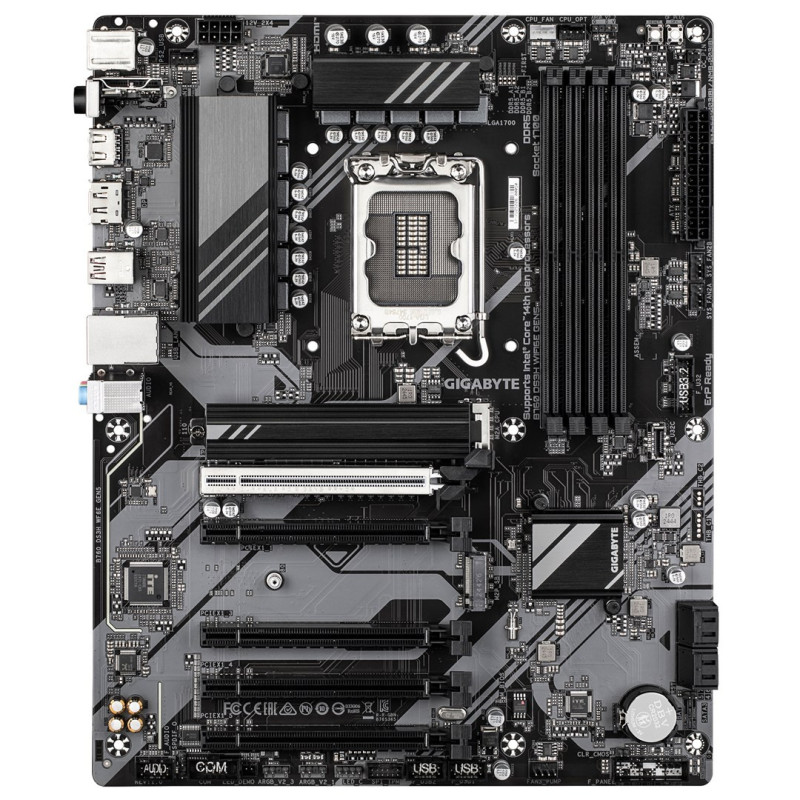

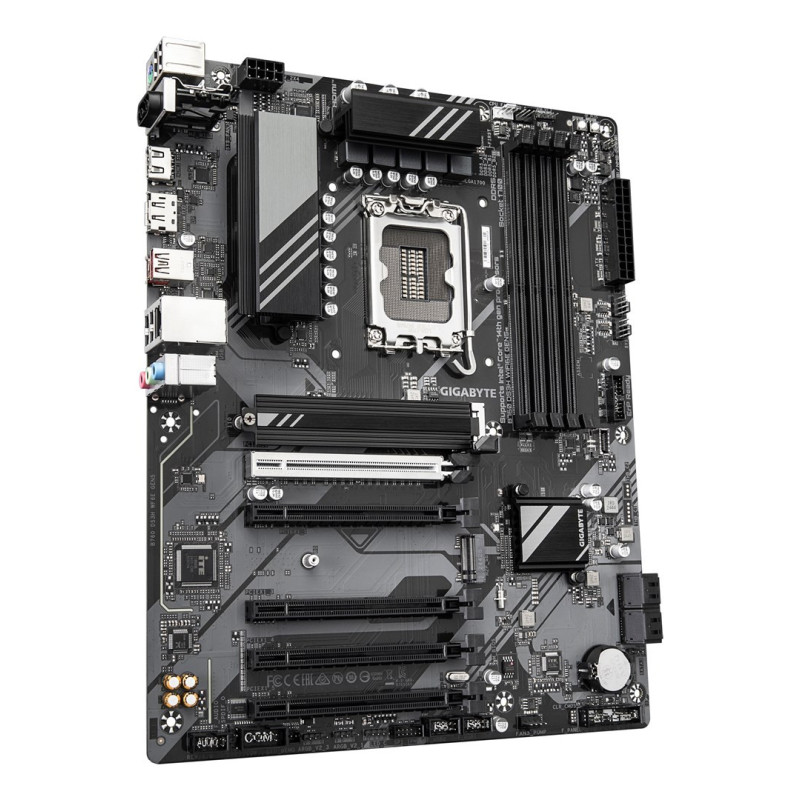

GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 5600MHz
Prekės kodas:
6-B760 DS3H WF6E GEN5
GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 1GbE LAN, USB 3.2 Gen 2x2
GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 5600MHz
Prekės kodas:
6-B760 DS3H WF6E GEN5
GIGABYTE B760 DS3H WIFI6E GEN5 Motherboard - Supports Intel Core 14th Gen CPUs, 8+2+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6E, 1GbE LAN, USB 3.2 Gen 2x2
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
- Įtraukti į patikusias prekes
- Pridėta į patikusias prekes
- Pašalinta iš patikusų prekių
Garantija
36 mėn.
Pristatymas iš Europos
per 6 - 11*
d. d.
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Pentium® Gold, Intel Core i7 12th Gen, Intel Core i5 14th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel Core i7 14th Gen, Intel Core i7 13th Gen, Intel Core i9 13th Gen, Intel Core i3 12th Gen, Intel Core i3 14th Gen, Intel® Celeron®, Intel Core i9 14th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen |
| Processor manufacturer | Intel |
| HDCP | Yes |
| Maximum resolution | 4096 x 2304 pixels |
| Motherboard form factor | ATX |
| Power source type | ATX |
| Motherboard chipset | Intel B760 Express |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | Intel |
| Supported memory clock speeds | 6000, 6800, 6600, 7000, 6200, 6400 MHz, 4000 MHz, 4800, 7600, 5800, 5400, 5600, 7200, 7400, 5200 |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Supported memory clock speed (max) | 7600 MHz |
| Maximum internal memory per slot | 64 GB |
| Number of memory slots | 4 |
| ECC сompatibility | ECC & Non-ECC |
| Width | 305 mm |
| Depth | 244 mm |
| Wi-Fi standards | 802.11b, 802.11g, 802.11a, Wi-Fi 6E (802.11ax), IEEE 802.11n, IEEE 802.11ac |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Bluetooth version | 5.3 |
| Ethernet LAN | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX210 |
| Wi-Fi | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Serial port headers | 1 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| S/PDIF out connector | Yes |
| TPM connector | Yes |
| USB 2.0 connectors | 2 |
| Front panel connector | Yes |
| CPU fan connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |
| Number of water pump connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of CPU fan connectors | 2 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| Supported storage drive types | HDD & SSD |
| RAID levels | 5, 10, 1 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| RAID support | Yes |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| DisplayPort version | 1.2 |

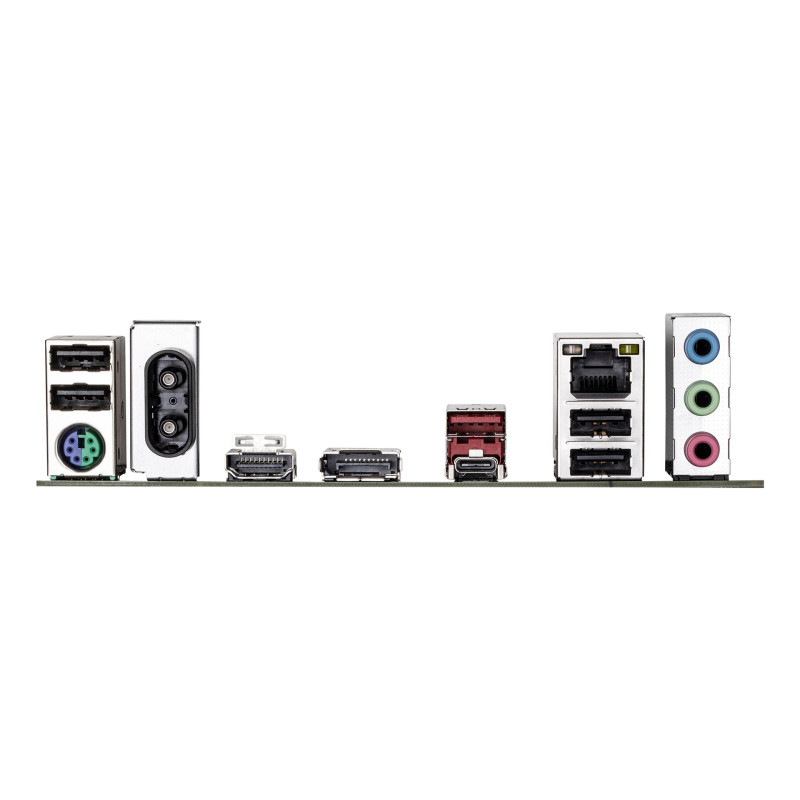

| DisplayPorts quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| HDMI version | 2.1 |
| WiFi-AP antenna jack | 2 |
| PS/2 ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 22110 |
