TP-LINK Omada debesies valdiklis

Professional Centralized Management for Wi-Fi Network

Dedicated In Network Centralized Management

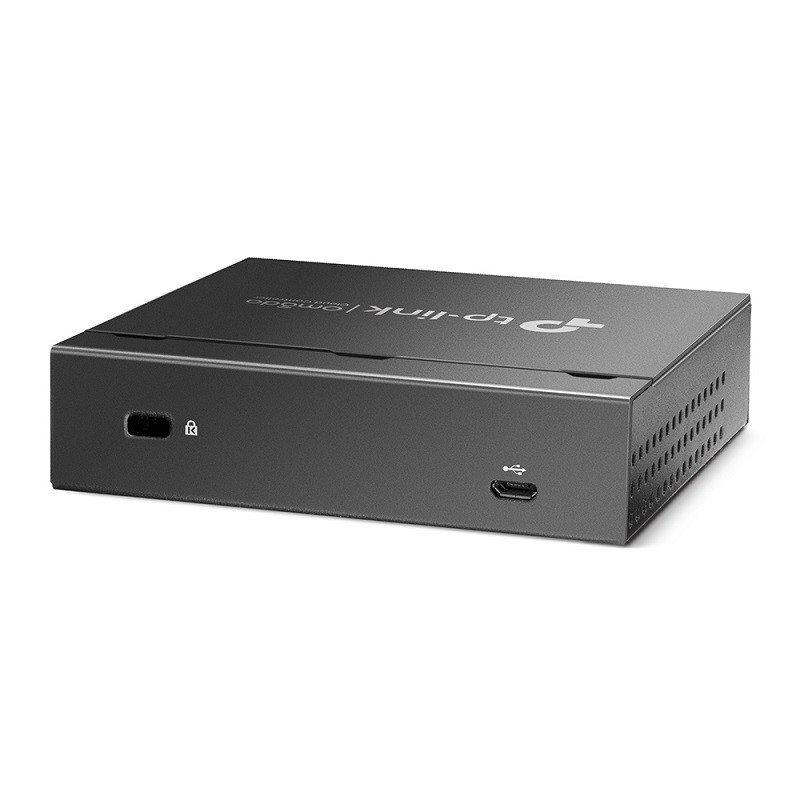

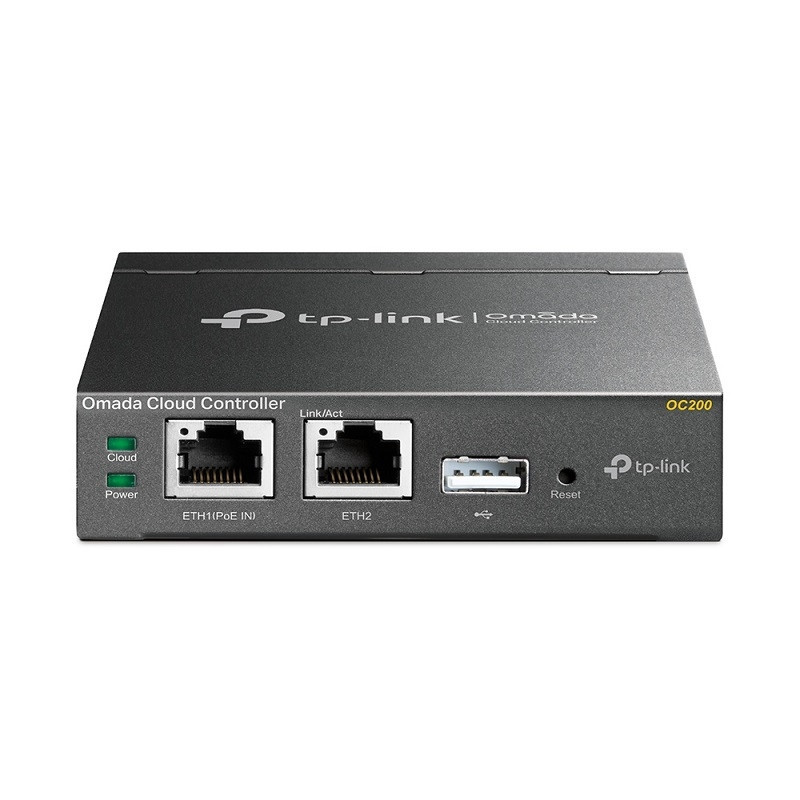

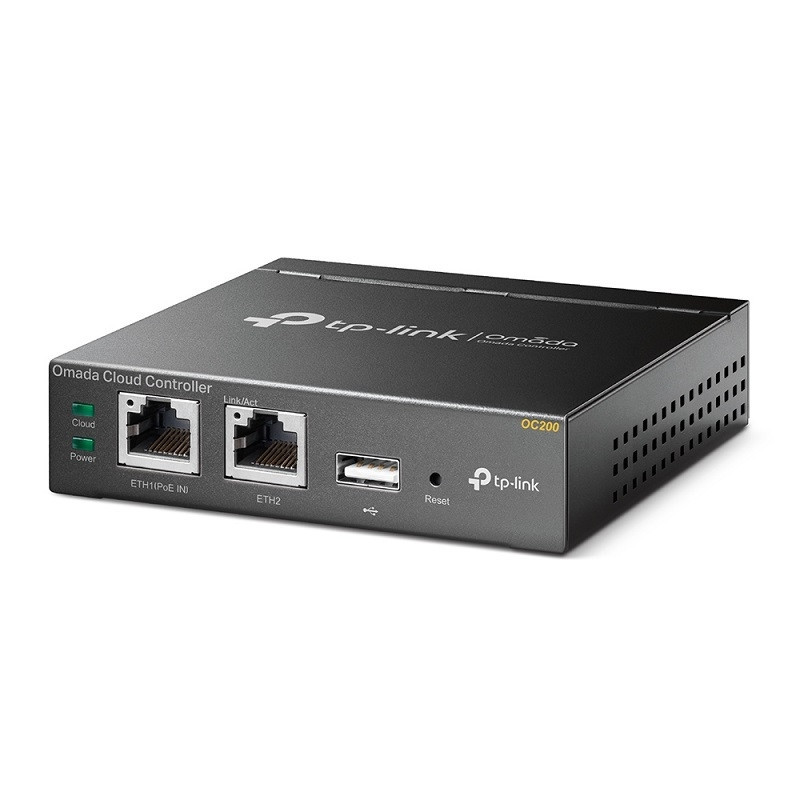

The OC200 Omada Cloud Controller delicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.

• No PC/Server is needed


• Reliability and Security


• Cloud Access for ultra convenience

HARDWARE FEATURES

Interface:2 x 10/100Mbps Ethernet Port

1 x USB 2.0 Port for configuration backup

1 x Micro USB Port for power

Power Supply: 802.3af/at PoE or Micro USB（DC 5V/Minimum 1A）

Power Consumption: 5 W

Dimensions: 3.9×3.9×1.0 inch. (100×98×25mm)

FEATURES

Management Scale: 100 EAPs

Wireless Fuction:

L3 Management

Multi-SSID:

Load Balance

Band Steering

Airtime Fairness

Beamforming

Rate Limit

Wireless Schedule

QoS

Wireless Security:

WEP/WPA-PSK/WPA2-PSK/WPA/WPA2 Encryption

Access Control

SSID to VLAN Mapping

Guest Network

AP Management:

Support Omada EAP Series

Cloud Access

Omada App Support

Reboot Wireless Schedule

Auto Backup Restore

Batch Firmware Upgrade

Authentication: Captive Portal

OTHERS

Certification: CE, FCC, RoHS

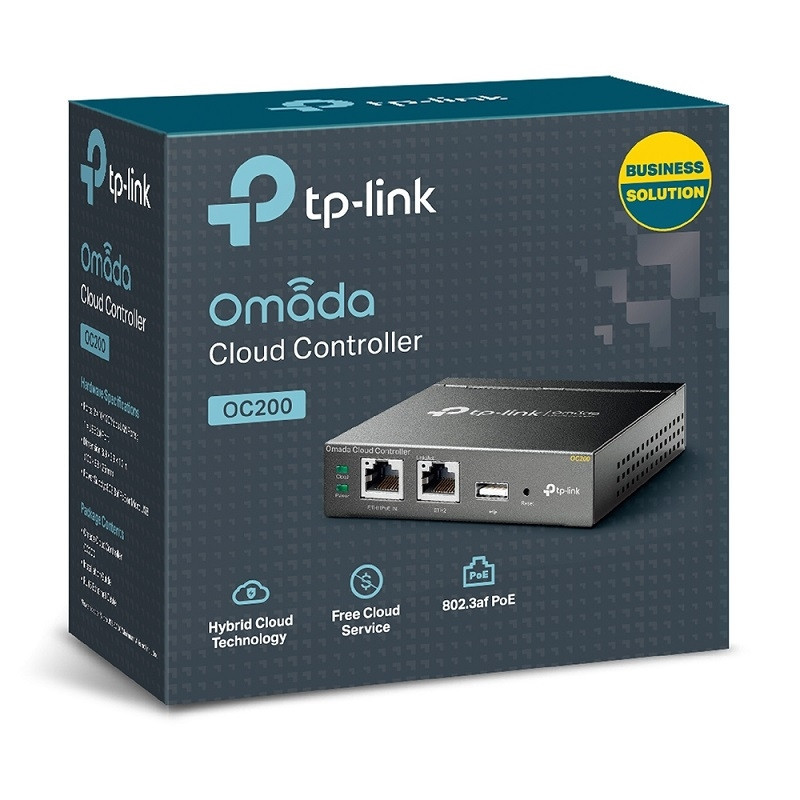

Package Contents:

Omada Cloud Controller OC200

Quick Installation Guide

Ethernet Cable

System Requirements: Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux

Environment:

Operating Temperature: 0 ~40 (32 ~104 )

Storage Temperature: -40 ~70 (-40 ~158 )

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
