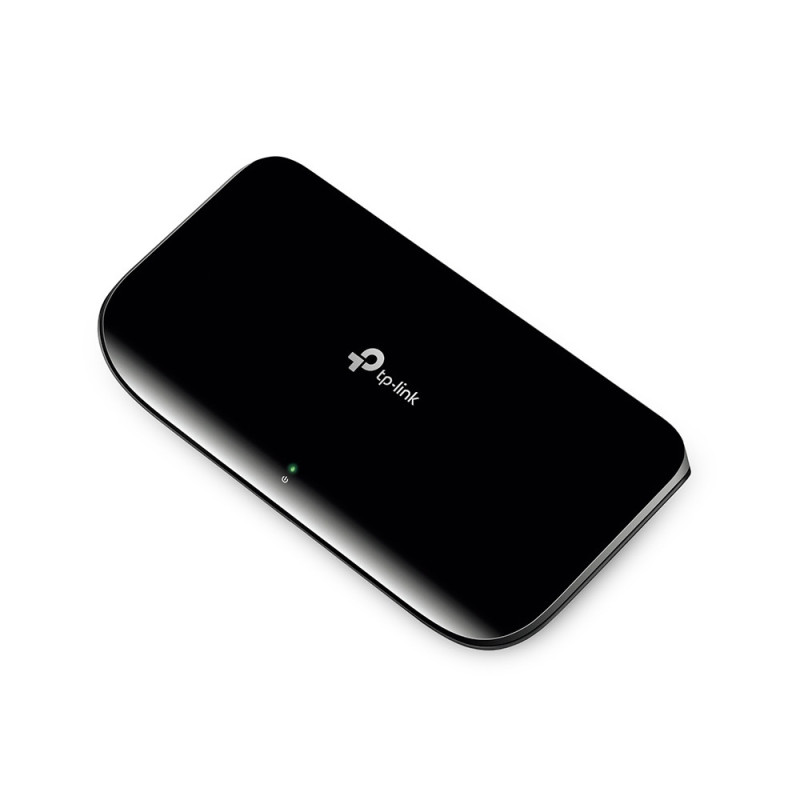

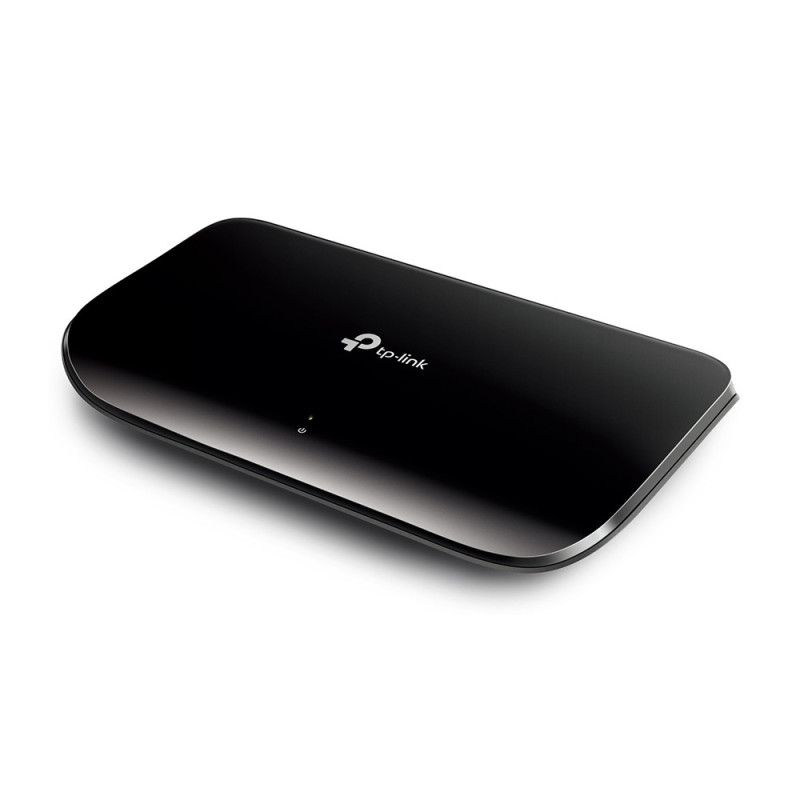

TP-LINK 8 prievadų gigabito darbalaukio komutatorius

• 8 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX


• Green Ethernet technology saves the power up to 80%


• IEEE 802.3x flow control provides reliable data transfer


• Plastic case, desktop or wall-mounting design


• Plug and play, no configuration required

HARDWARE FEATURESStandards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x

Interface:

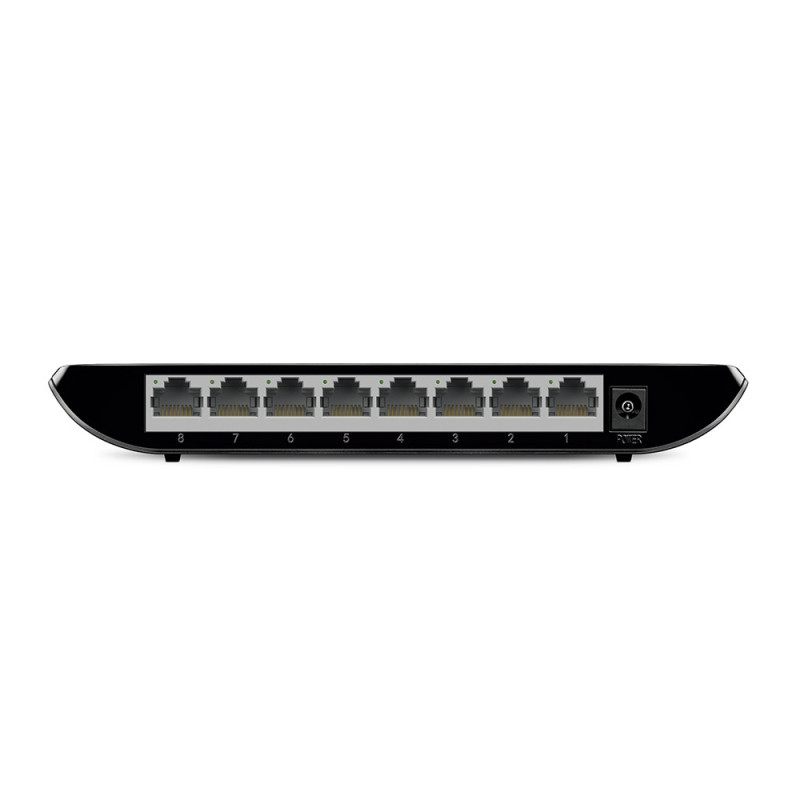

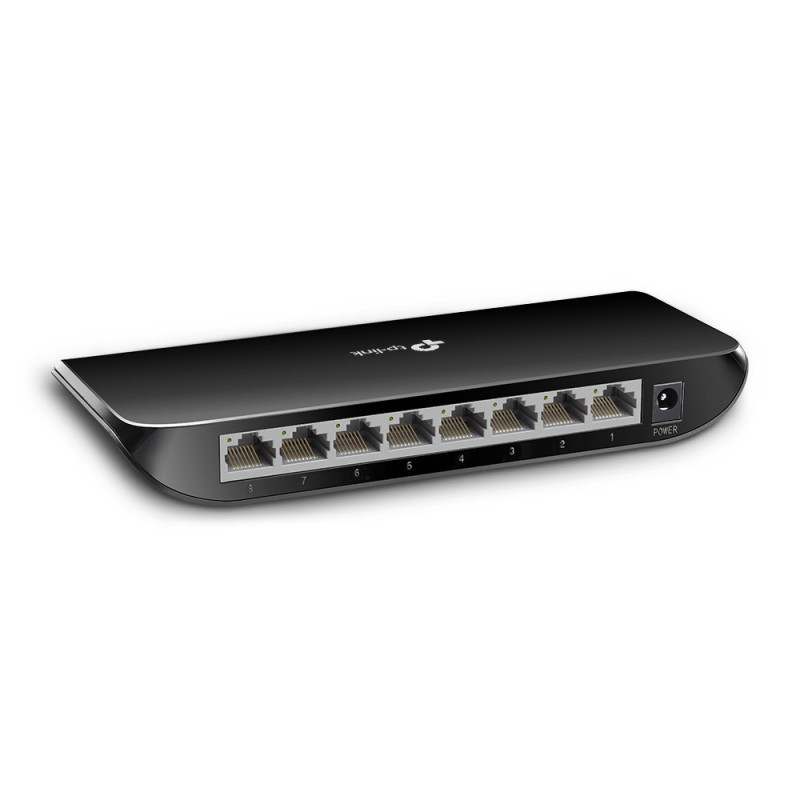

8 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Fan Quantity: Fanless

Physical Security Lock: No

External Power Supply: External Power Adapter (Output: 9VDC/0.6A)

Jumbo Frame: 15 KB

Switching Capacity: 16 Gbps

Dimensions ( W x D x H ): 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm)

Max Power Consumption: 4.63W(220V/50Hz)

Max Heat Dissipation: 15.80BTU/h

SOFTWARE FEATURESTransfer Method: Store and Forward

MAC Address Table: 4K

Advanced Functions:

Green Technology

802.3X Flow Control

Back Pressure

802.1p/DSCP QoS (for V7 and later version)

OTHERSCertification: FCC, CE, RoHs

Package Contents:

8-Port Gigabit Desktop Switch TL-SG1008D

Power Adapter

Installation Guide

Environment:

Operating Temperature: 0 ~40 (32 ~104 )

Storage Temperature: -40 ~70 (-40 ~158 )

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
