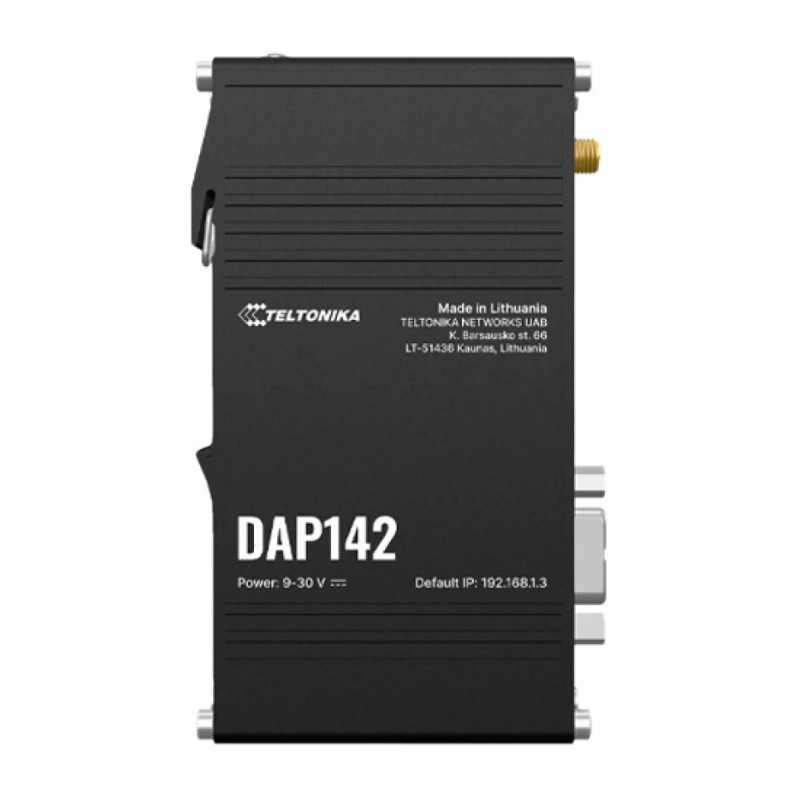

Prieigos taškas Teltonika DAP142
Prekės kodas: 26-TELDAP142
  • Tipas: Prieigos taškas
  • Modelis: Teltonika DAP142
  • LAN prievadai: 2x 100 Mbps
  • Atmintis: 128MB DDR2
  • Flash atmintis: 16MB NOR
  • Maitinimas: 3-pin, 9-30VDC
  • Antenos jungtis: 1x RP-SMA
  • Serijinė jungtis: 1x DB9
  • Wi-Fi vartotojų skaičius: iki 50
  • Dažnis: 50 MHz
  • Darbinė temperatūra: -40...75°C
Prieigos taškas Teltonika DAP142

Prieigos taškas Teltonika DAP142

Prekės kodas: 26-TELDAP142
  • Tipas: Prieigos taškas
  • Modelis: Teltonika DAP142
  • LAN prievadai: 2x 100 Mbps
  • Atmintis: 128MB DDR2
  • Flash atmintis: 16MB NOR
  • Maitinimas: 3-pin, 9-30VDC
  • Antenos jungtis: 1x RP-SMA
  • Serijinė jungtis: 1x DB9
  • Wi-Fi vartotojų skaičius: iki 50
  • Dažnis: 50 MHz
  • Darbinė temperatūra: -40...75°C
Jūsų palyginimo sąraše yra 3 prekės, prašome vieną pašalinti ir bandyti dar kartą.
  • Įtraukti į patikusias prekes
  • Pridėta į patikusias prekes
  • Pašalinta iš patikusų prekių
Įtraukti į palyginimą
66,55 €
Prekė sandelyje

Garantija
24 mėn.

Pristatymas iš Lietuvos
per 2 - 4*
d. d.

Jūsų žinutė sėkmingai išsiųsta!
Užpildykite privalomus laukus*
  • Bevielis ryšys
  • Belaidžio ryšio režimas IEEE 802.11b/g/n (Wi-Fi 4), Access Point (AP), Client (STA), Mesh (802.11s), Multi AP
  • Wifi apsauga WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-EAP, OWE, WPA2-EAP, WPA3-EAP
  • SSID/ESSID ESSID stealth mode
  • Wi-Fi naudotojai Up to 50 simultaneous connections
  • Belaidžio ryšio funkcijos Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
  • Belaidžio ryšio MAC filtras Allowlist, blocklist
  • Belaidžio ryšio QR kodų generatorius Once scanned, a user will automatically enter your network without needing to input login information
  • TravelMate Forward Wi-Fi hotspot landing page to a subsequent connected device
  • Ethernet
  • LAN 2 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
  • Tinklas
  • Maršrutas Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
  • Protokolai TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake On Lan (WOL)
  • VoIP praėjimo parama H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
  • Ryšio stebėjimas Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • Ugniasienė Port forward, traffic rules, custom rules
  • Ugniasienės būsenos puslapis View all your Firewall statistics, rules, and rule counters
  • Prievadų valdymas View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
  • Tinklo topologija Visual representation of your network, showing which devices are connected to which other devices
  • DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
  • QoS / išmanusis eilių valdymas (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
  • DDNS Supported > 25 service providers, others can be configured manually
  • DNS per HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
  • Tinklo atsarginės kopijos Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automatic Failover
  • Apkrovos balansavimas Balance Internet traffic over multiple WAN connections
  • Hotspot 2.0 Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks
  • SSHFS Possibility to mount remote file system via SSH protocol
  • VRF support Initial virtual routing and forwarding (VRF) support
  • Eismo valdymas Real-time monitoring, wireless signal charts, traffic usage history
  • Saugumas
  • Autentifikavimas Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
  • Ugniasienė Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
  • Įsilaužimo prevencija DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
  • VLAN Port and tag-based VLAN separation
  • WEB filtras Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
  • Prieigos kontrolė Flexible access control of SSH, Web interface, CLI and Telnet
  • SSL sertifikatų generavimas Let's Encrypt and SCEP certificate generation methods
  • VPN
  • OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods
  • OpenVPN šifravimas DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
  • IPsec XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
  • GRE GRE tunnel, GRE tunnel over IPsec support
  • PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
  • Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program's code
  • DMVPN Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
  • SSTP SSTP client instance support
  • ZeroTier ZeroTier VPN client support
  • WireGuard WireGuard VPN client and server support
  • Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
  • Tailscale Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
  • OPC UA
  • Palaikomi režimai Client, Server
  • Supported connection types TCP
  • MODBUS
  • Palaikomi režimai Server, Client
  • Supported connection types TCP, RTU(RS232)
  • Pasirinktiniai registrai MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
  • Palaikomi duomenų formatai 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
  • DATA TO SERVER
  • Protokolas HTTP(S), MQTT, Azure MQTT
  • Data to server Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
  • MQTT Gateway
  • Modbus MQTT Gateway Allows sending commands and receiving data from MODBUS Server through MQTT broker
  • DNP3
  • Palaikomi režimai Station, Outstation
  • Supported connection TCP, RTU(RS232)
  • DLMS/COSEM
  • DLMS Support DLMS - standard protocol for utility meter data exchange
  • Palaikomi režimai Client
  • Supported connection types TCP, RTU(RS232)
  • COSEM Allows to scan meter COSEM objects for automatic detection and configuration
  • API
  • Teltonika Networks Web API (beta) support Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
  • Monitoring & Management
  • WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
  • FOTA Firmware update from server, automatic notification
  • SSH SSH (v1, v2)
  • El. paštas Receive email message status alerts of various services
  • TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
  • MQTT MQTT Broker, MQTT publisher
  • SNMP SNMP (v1, v2, v3), SNMP Trap, Brute force protection
  • JSON-RPC Management API over HTTP/HTTPS
  • MODBUS MODBUS TCP status/control
  • RMS Teltonika Remote Management System (RMS)
  • IoT platformos
  • ThingWorx Utility to interact with Thingworx cloud platform
  • Cumulocity - Cloud of Things Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Has reboot and firmware upgrade actions
  • Azure IoT Hub Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
  • AWS IoT Core Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality
  • Sistemos Characteristikos
  • Procesorius Mediatek, 580 MHz, MIPS 24KEc
  • RAM 128 MB, DDR2
  • FLASH saugykla 16 MB serial NOR flash
  • Nustatymai
  • WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup
  • FOTA Update FW
  • RMS Update FW/configuration for multiple devices at once
  • Nustatymų įsiminimas Update FW without losing current configuration
  • Gamykloje nustatytų parametrų atstatymas A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
  • FIRMWARE CUSTOMISATION
  • Operacinė sistema RutOS (OpenWrt based Linux OS)
  • Kalbos Busybox shell (ash), Lua 5.1, C, C++
  • Kūrėjo įrankiai SDK package with build environment provided
  • GPL customization You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients' needs
  • Package Manager The Package Manager is a service used to install additional software on the device
  • Serial
  • RS232 Terminal block connector: TX, RX, RTS, CTS
  • Serial functions Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client
  • Energija
  • Jungtis 3-pos plugable terminal block
  • Įeinančios įtampos diapazonas 9-30 VDC, reverse polarity protection, surge protection > 31 VDC 10us max
  • PoE (pasyvus) Passive PoE over spare pairs. Possibility to power up through LAN2 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
  • Energijos suvartojimas Idle: < 1 W / Max: < 2 W
  • Fizinės sąsajos
  • Ethernet 2 x RJ45 ports, 10/100 Mbps
  • Būsenos LED indikatoriai 2 x LAN type LED, 1 x Power LED
  • Energija 1 x 3-pin power connector
  • Antenos 1 x RP-SMA for Wi-Fi
  • RS232 1 x DB9 socket
  • Perkrovimas Reboot/User default reset/Factory reset button
  • Kita 1 x Grounding screw
  • Fizinės specifikacijos
  • Korpuso medžiaga Aluminium housing
  • Matmenys (P x A x G) 113.10 x 25 x 68.6 mm
  • Svoris 149.2 g
  • Montavimas Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
  • Darbo aplinka
  • Darbinė temperatūra -40 °C to 75 °C
  • Drėgmė 10% to 90% non-condensing
  • IP reitingas IP30

Gamintojas Teltonika Networks
Gamintojo kodas TELDAP142
Svoris 0.149 kg
