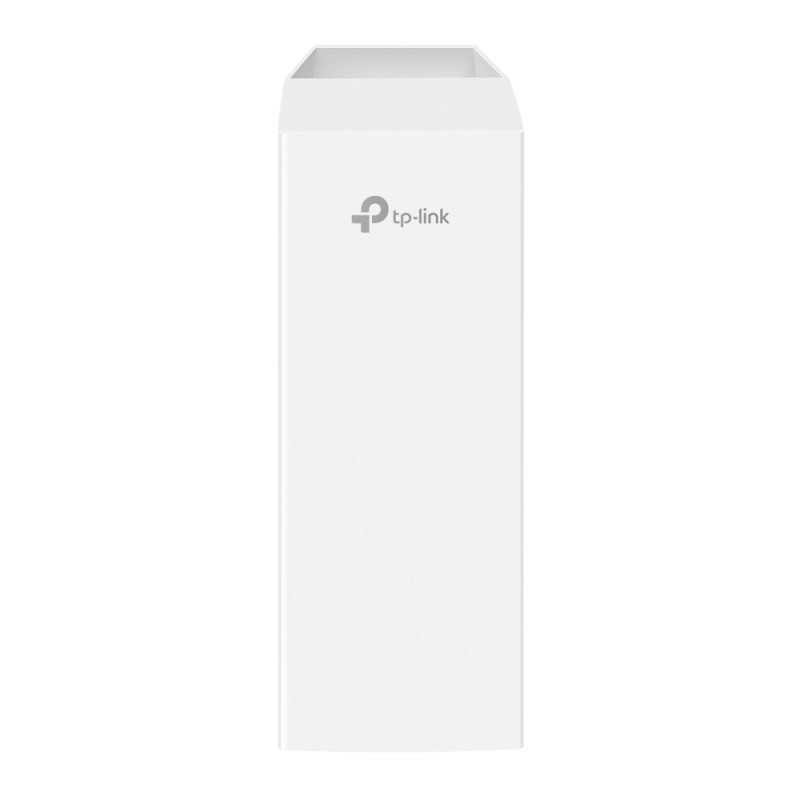

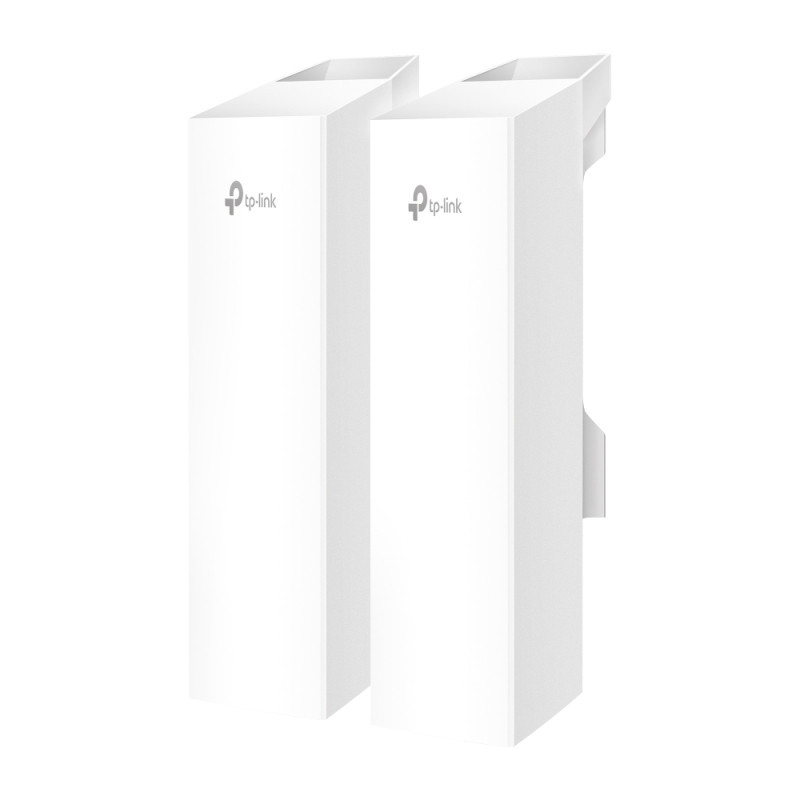

TP-LINK Omada Wireless Bridge 5 GHz 867 Mbps Indoor / Outdoor Access Point EAP211-Bridge KIT
Product reference:
18-EAP211-BridgeKIT
TP-LINK Omada Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point EAP211-Bridge KIT
TP-LINK Omada Wireless Bridge 5 GHz 867 Mbps Indoor / Outdoor Access Point EAP211-Bridge KIT
Product reference:
18-EAP211-BridgeKIT
TP-LINK Omada Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point EAP211-Bridge KIT
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 3
business days
- 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate
- Ideal for long-range wireless transmissionup to 1 km
- Auto-pairing and agile LEDs for efficient deployment
- 3× Gigabit Ethernet ports for more high-speed IP camera connections
- Supports Omada SDN for remote and centralized management
- IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability
- Supports Passive PoE for flexible deployment (adapter included)
| HARDWARE FEATURES | |
|---|---|

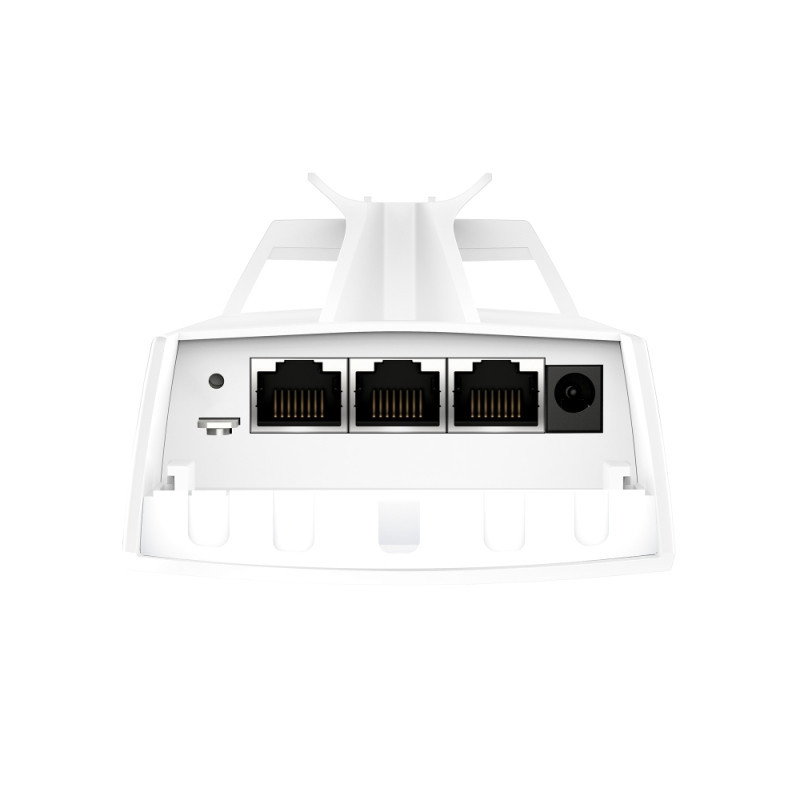

| Interface | 3x Gigabit Ethernet Ports |
| Button | Reset |
| Power Supply | 12V DC / 24V Passive PoE (Passive PoE adapter included.) |
| Power Consumption | 11.5W |
| Dimensions (W x D x H) | 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm) |
| Antenna Type | Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 7.0 dBi Horizontal:70°, Vertical: 70° |
| Weatherproof Enclosure | IP65 |

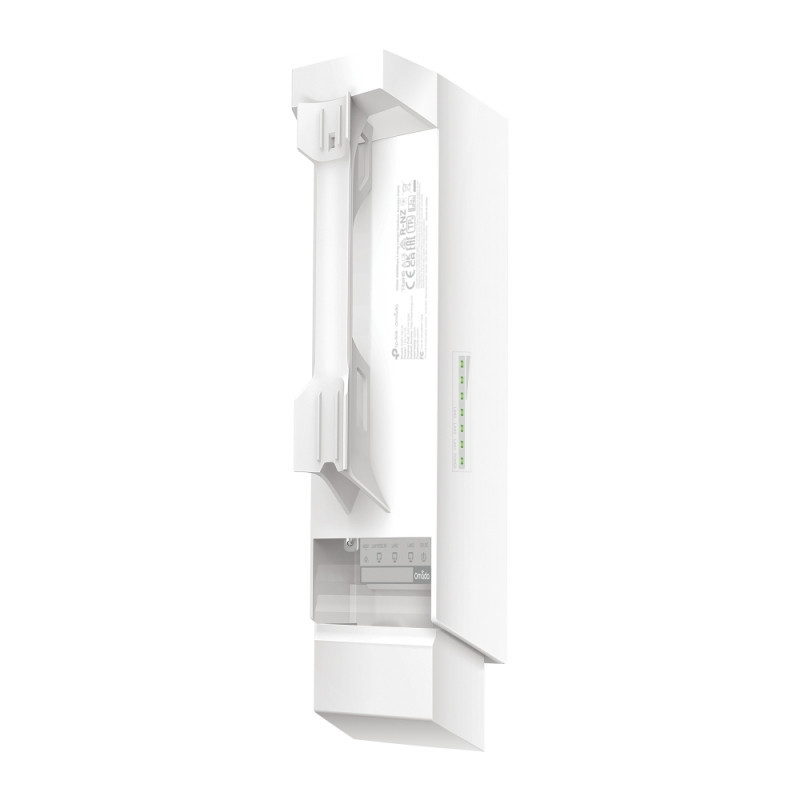

| Mounting | Pole Mounting (Accessories included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 1000m(3280ft) |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac |
| Frequency | 5GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | • Mesh • MU-MIMO: 5G 2x2 MU-MIMO DL • Load Balance • Seamless Roaming(802.11r) • Beamforming • Airtime Fairness • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
| Wireless Security | • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication • Maximum number of MAC Filter: 4,000 • WPA-Personal/Enterprise, WPA2-Personal/Enterprise |
| Transmission Power | • CE: <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5GHz band3, EIRP); • FCC: <22dBm (5 GHz band1/4) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Restore Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |

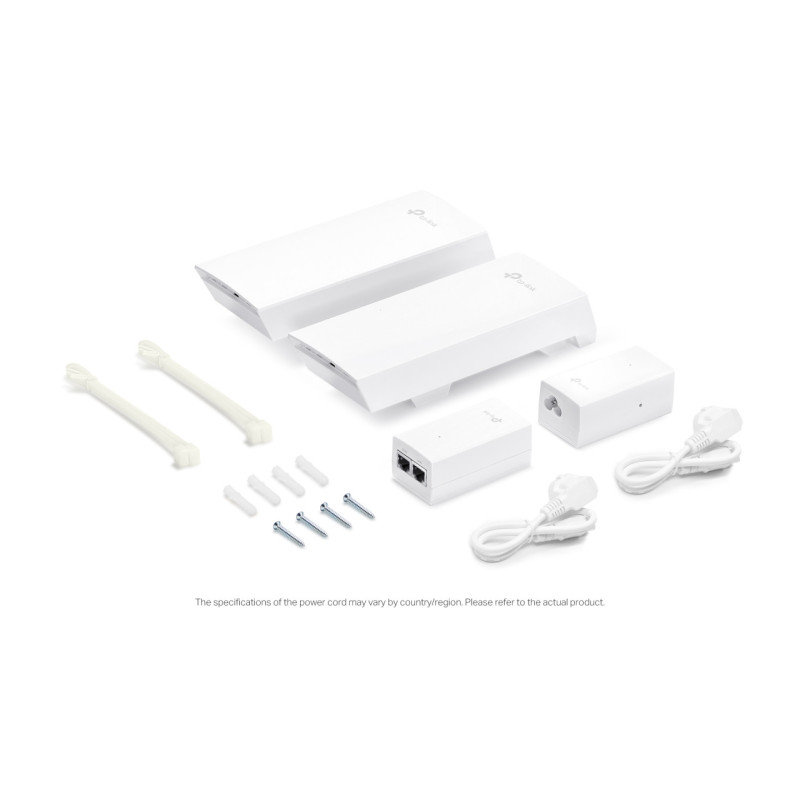

| Package Contents | • EAP211-Bridge KIT • Passive PoE Adapter • Power Cord • Installation Guide • Mounting Kit |
| Environment | • Operating Temperature: -40 °C-70 °C (-40 °F-158 °F); • Storage Temperature: -40 °C-70 °C (-40 °F-158 °F); • Operating Humidity: 10%-90% non-condensing; • Storage Humidity: 5%-90% non-condensing |
