TP-LINK AX6000 Ceiling Mount WiFi 6 Access Point EAP683 UR
Product reference:
18-EAP683UR
TP-LINK AX6000 Ceiling Mount WiFi 6 Access Point EAP683 UR
TP-LINK AX6000 Ceiling Mount WiFi 6 Access Point EAP683 UR
Product reference:
18-EAP683UR
TP-LINK AX6000 Ceiling Mount WiFi 6 Access Point EAP683 UR
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 3
business days
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz
- Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.
- Integrates with the Omada SDN platform for centralized management
- Advanced Features: Omada Mesh, Seamless Roaming, and more
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 2.5 Gigabit PoE+ Port |
| Button | Reset |
| Power Supply | • 802.3at PoE • 12 V / 2 A DC Note：Power adapter is not included. |
| Power Consumption | • EU: 20.43W • US: 23.69W |
| Dimensions (W x D x H) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna Type | Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi |
| Bluetooth | V5.2 |
| Mounting | Ceiling/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 185㎡(2000ft²) |
| Concurrent Clients | 510+ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 1148 Mbps |
| Wireless Functions | • 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO (4*4 MU-MIMO DLUL) • MIMO [4*4 (2.4G and 5G) MU-MIMO; 4*4 (2.4G and 5G) SU-MIMO] • HE160 (160 MHz Bandwidth) • Seamless Roaming • Omada Mesh • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, band1 band2, EIRP) <28 dBm(5 GHz, band3, EIRP) • FCC: <26 dBm (2.4 GHz) <26 dBm (5 GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE,FCC,RoHS |

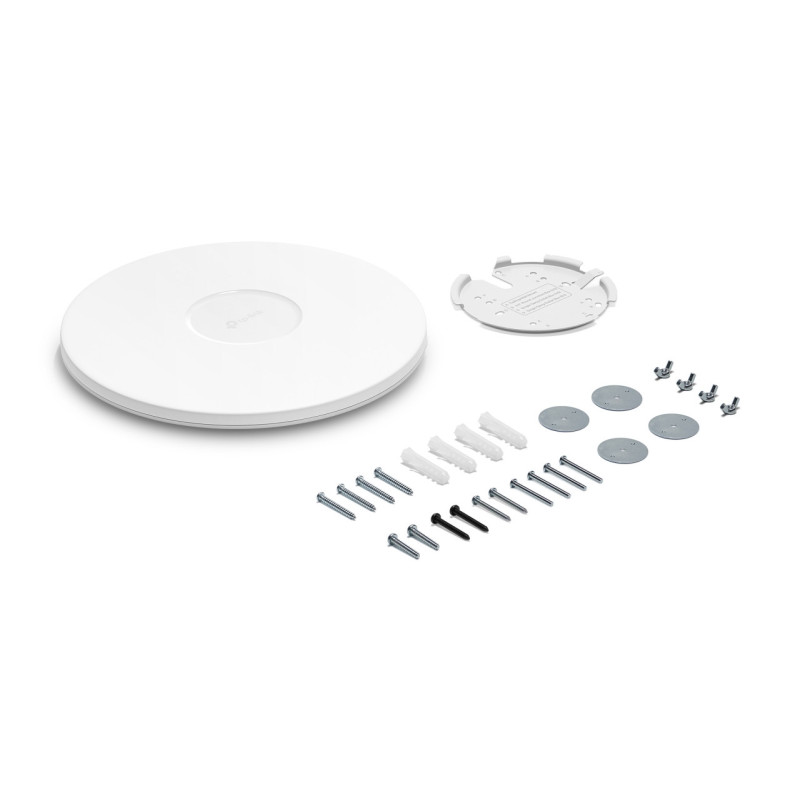

| Package Contents | • EAP683 UR • Ceiling/Wall Mounting Kits • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0-40 (32-104 ) • Storage Temperature: -40-70 (-40-158 ) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing |
