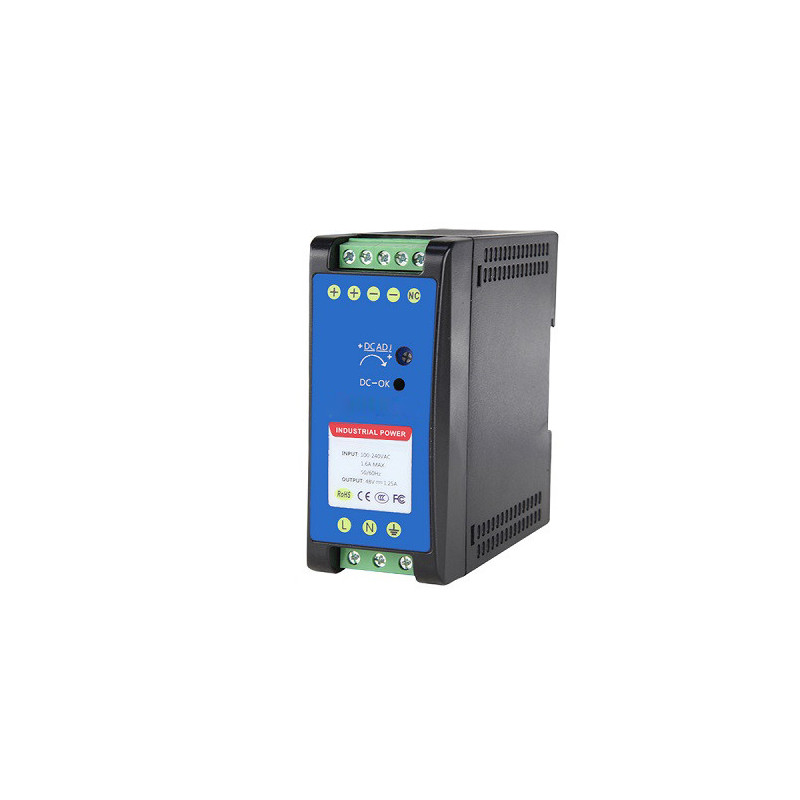

Switching power supply 48V, 1.25A, 60W, DIN.
Features:
Switching power supply, can be mounted on a DIN rail (TS-35/7.5 or TS-35/15).
Protection: against overload, voltage surge, short circuit.
It can operate at temperatures from -40°C to +70°C and is cooled by free air convection.
High efficiency, durable, reliable, narrow profile, economical.
Complies with EU electromagnetic compatibility standards EN61000-3-2.
Technical data:
Input voltage: AC 90-264V. Frequency: 47-63Hz.
Output voltage: DC 48V.
Ability to adjust output voltage 47~56V.
Maximum output current: 1.25A.
Maximum power: 60W.
Irregularities and noise: 100mV pp.
AC voltage: 1.4A/115V, 0.8A/230V.
Efficiency: > 89%.
Leakage current in the input circuit at AC 264V: up to 0.25mA.
Operating temperature: from -40°C to +70°C.
Operating humidity: 20%-95%RH.
Dimensions: 93x102.5x41mm.
Certificates: RoHS, CE.
Warranty: 24 months
