Radio frame 9 inch Volkswagen Scirocco III (13) 2008-2014 381320-96-3

Product description

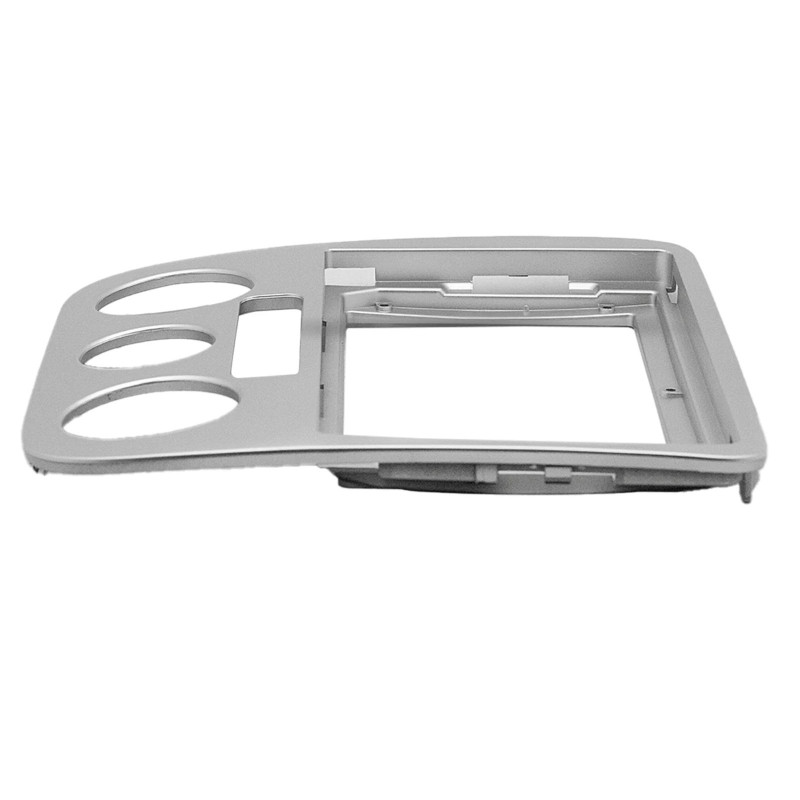

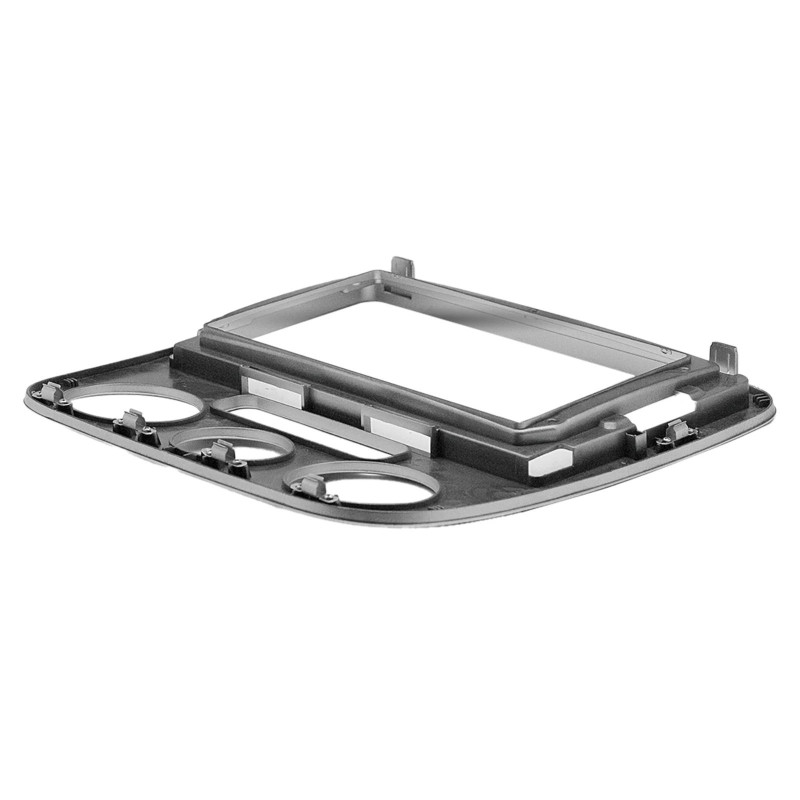

The 9-inch mounting frame for the Volkswagen Scirocco III (type 13) is a practical solution enabling the replacement of the factory radio or navigation system with a modern multimedia device.

Many vehicles use OEM systems that are visually and functionally matched to the car's interior. When installing an aftermarket radio, it's essential to use a suitable frame that adapts the mounting hole to the 9-inch standard and provides an aesthetically pleasing finish to the center console.

The product is designed for vehicles equipped with manual air conditioning, thus guaranteeing full compatibility and proper fit of interior components.

Advantages of the radio frame

• Precise fit for VW Scirocco III
• Allows installation of an aftermarket 9″ radio
• Aesthetic appearance - matching the factory interior
• Dedicated to the version with manual air conditioning
• Durable and solid workmanship

Vehicle compatibility

Volkswagen Scirocco III (13)

• 08/2008 - 04/2014

Attention: only vehicles with manual air conditioning

Technical data

• Radio size: 9 inches
• Color: silver

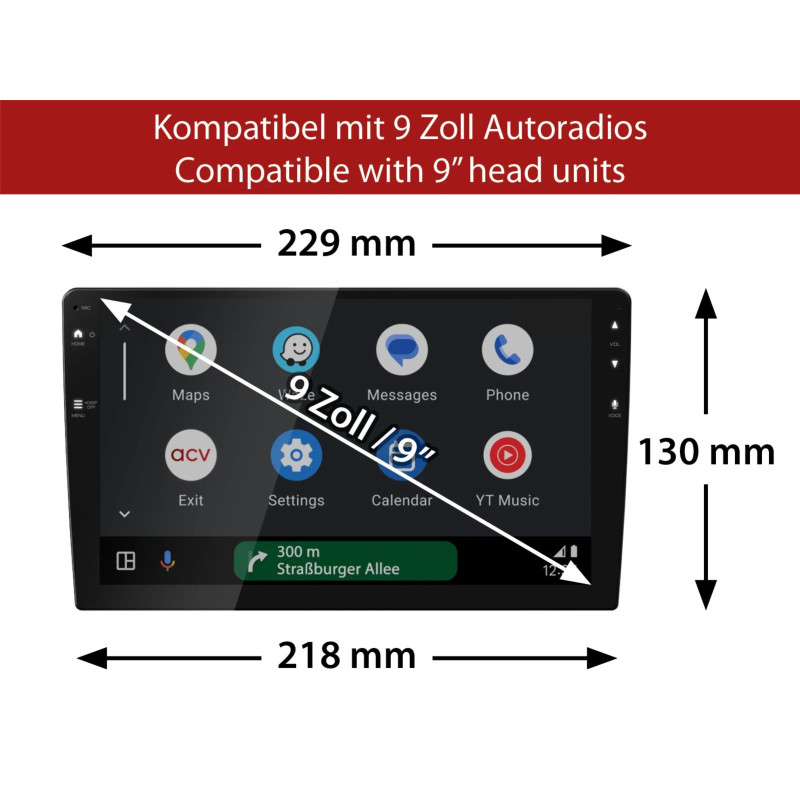

• Mounting hole dimensions: 230 / 220 × 130 mm

Additional adapters and interfaces

Depending on the vehicle's equipment, the following may be required:

• radio connection cables
• antenna adapter
• steering wheel control adapter
• reversing camera adapter
• active system adapter

Supported devices

• 9″ devices
• 9″ Short Body devices
• 9″ modular devices with display and Silverbox unit

Installation

• assembly of the device with individually selected accessories
• display assembly with appropriate installation elements
• Before installation, it is recommended to compare the shape of the frame with the dashboard

Application

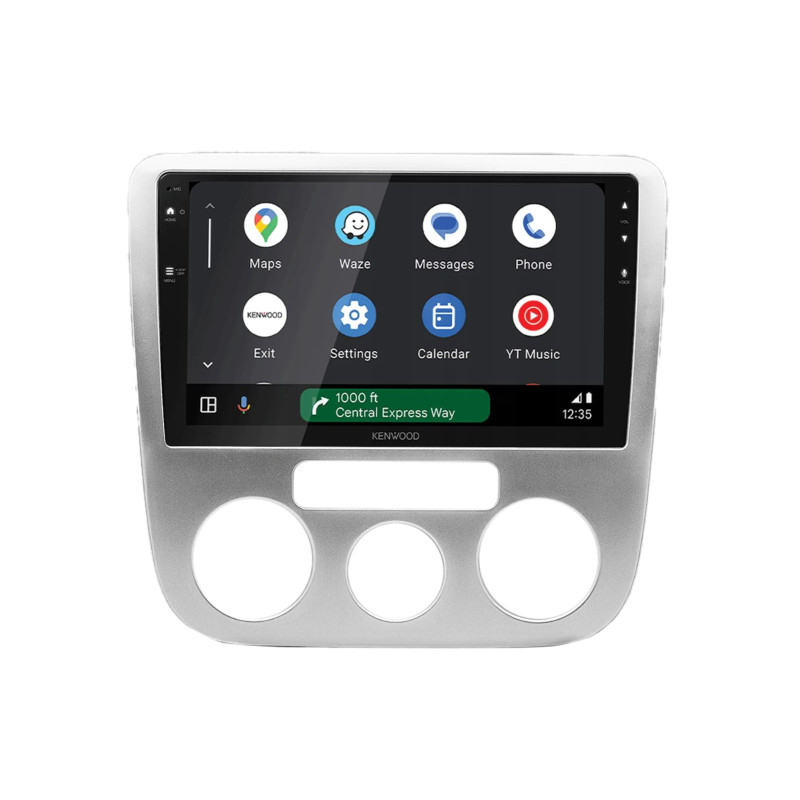

This frame is designed to upgrade the multimedia system in a VW Scirocco III (2008-2014) with manual air conditioning. It allows for the installation of an Android radio, GPS navigation, a rearview camera, Apple CarPlay, and Android Auto.
