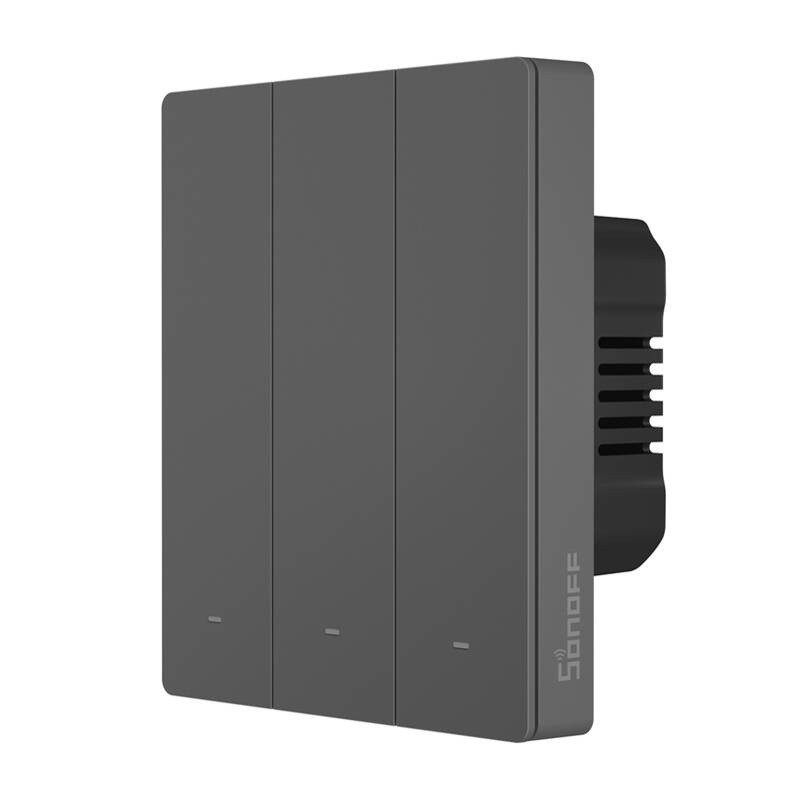

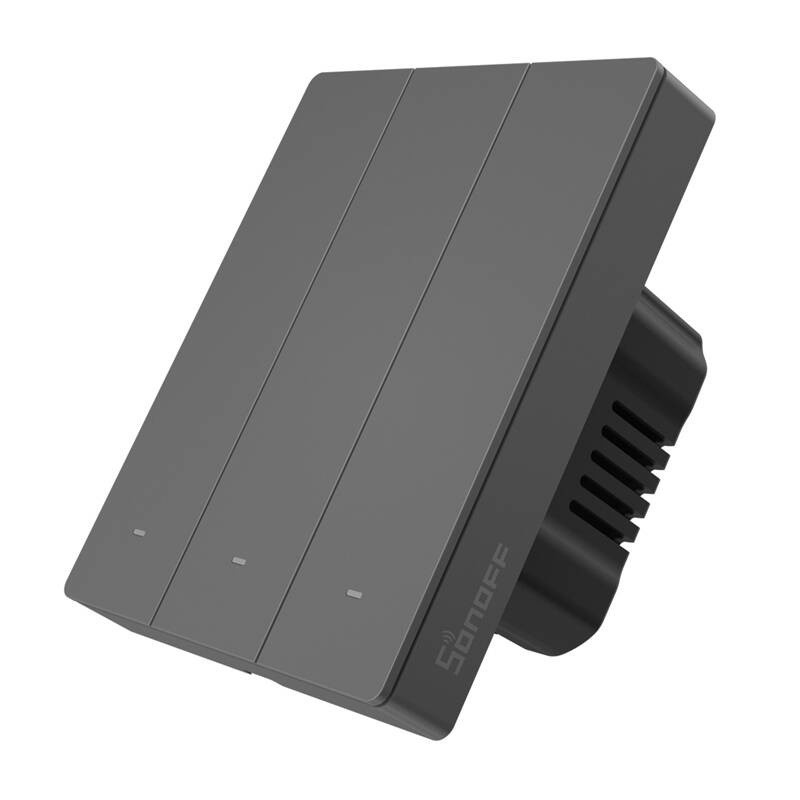

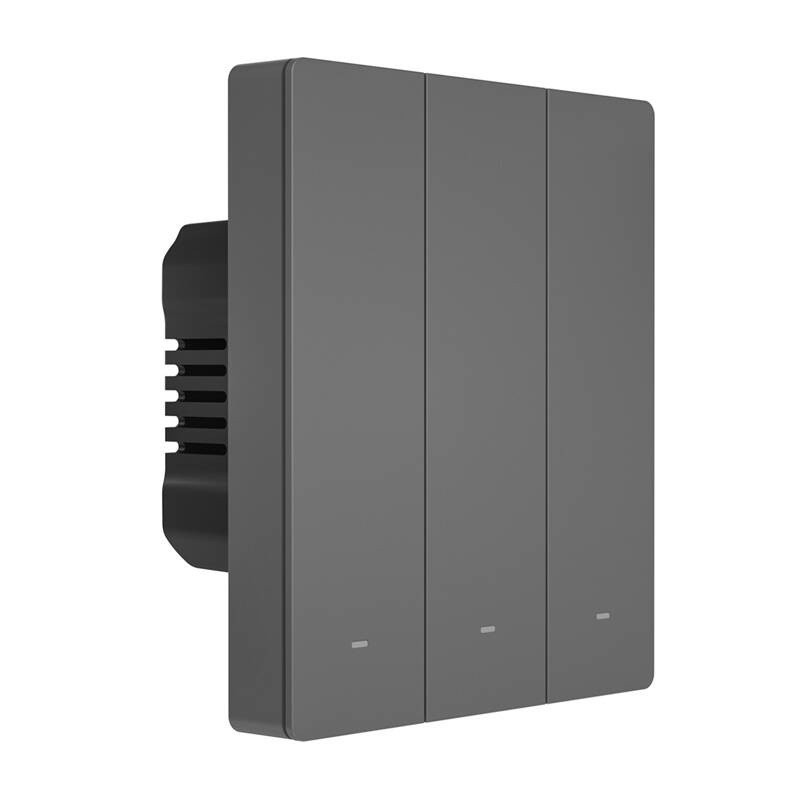

SONOFF M5-3C-80 WiFi smart wall switch (3-channel, for frame, graphite).

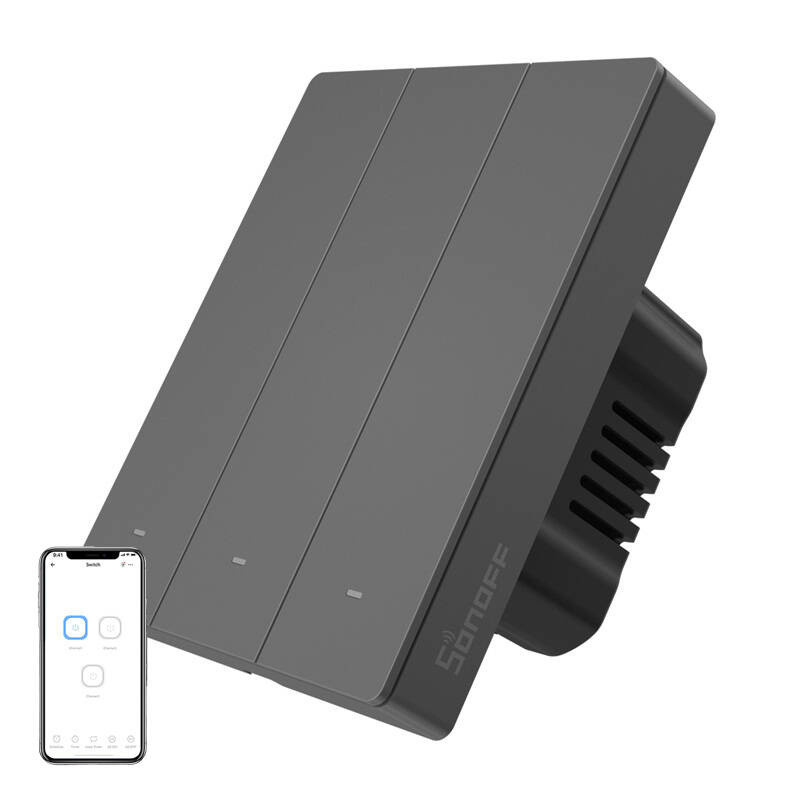

SONOFF M5-3C-80 is a three-channel mechanical WiFi smart wall switch that combines innovative technology with ease of use. With the eWeLink app, you have full control over the devices in your home, even when you are away. Operating the switch is extremely easy and convenient, even for the elderly. Whether you use the local button, the app, or voice commands, the SONOFF M5 provides convenience at every turn.




Convenient operation in a variety of ways


The SONOFF M5 switch allows you to control it with physical buttons that are fast and responsive. The buttons can be operated even when wearing gloves, making them easy to use. A single press is all it takes to turn the lights on. In addition, thanks to its cooperation with the voice assistants Alexa, Google Home, Alice and Siri Shortcut, you can control the light with voice commands, which is especially useful during daily activities.




Security at the highest level


The SONOFF M5-3C-80 is designed with user safety in mind. It is CE certified and offers resistance to high temperatures. Thanks to its well-thought-out design, it is possible to safely separate high and low voltage during disassembly. This smart device not only makes life more comfortable, but also takes care of the safety of your home and users.




Functionality tailored to your needs

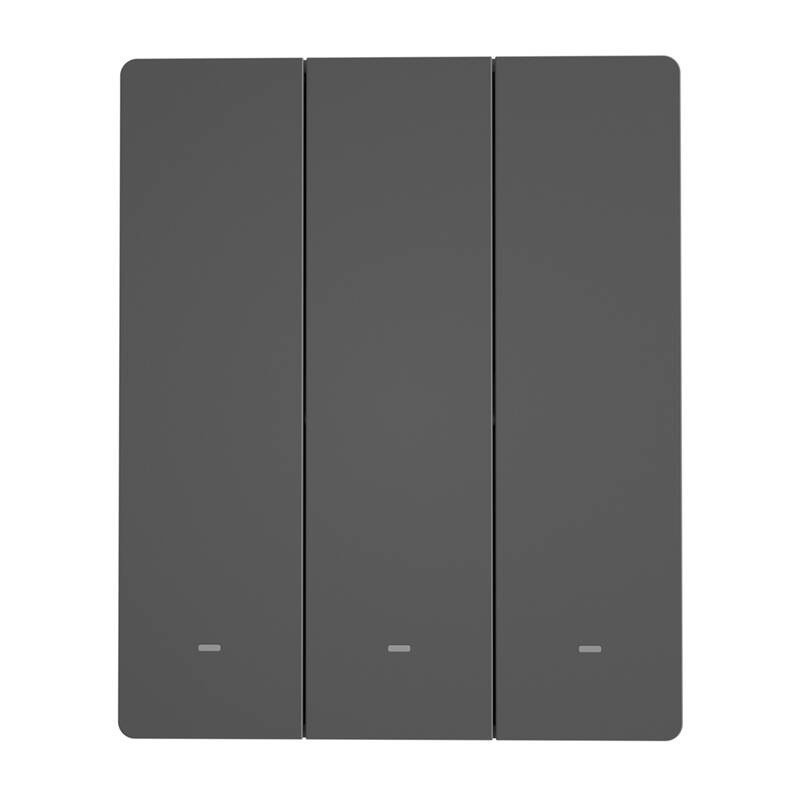

Having trouble finding the switch when it's dark? The SONOFF M5 features an adjustable LED indicator whose brightness can be adjusted to suit your preferences. You can also set up smart scenes that connect the switch to other devices, such as the DW2-WiFi door sensor. This way, the light will automatically turn on when the door is opened. Schedules allow you to set the lights to turn on automatically at selected times, which is ideal for bedrooms or other rooms.




Simple integration with your smart home system


The SONOFF M5 switch works with the NSPanel, allowing you to control lights and appliances via a touch screen. The uniform color of the switch and NSPanel ensure a consistent interior look. In addition, with the multi-station control feature, you can control the same light from at least two locations, eliminating the problem of complicated wiring (note: a remote scene management remote control will be available soon).




Easy installation and modern design


With its simple installation and sleek graphite design, the SONOFF M5-3C-80 blends seamlessly into modern interiors. Whatever the style of your home, this smart switch will be the perfect addition to your smart home system.





Included


  • wall switch
  • 2x mounting screws








Manufacturer Sonoff
Model M5-3C-80
Material PC V0 fire resistant plastic
Dimensions 86 x 71 x 12.8 x 29.9 mm
Channels 3-channel
Connectivity WiFi 2.4 GHz (IEEE 802.11 b/g/n)

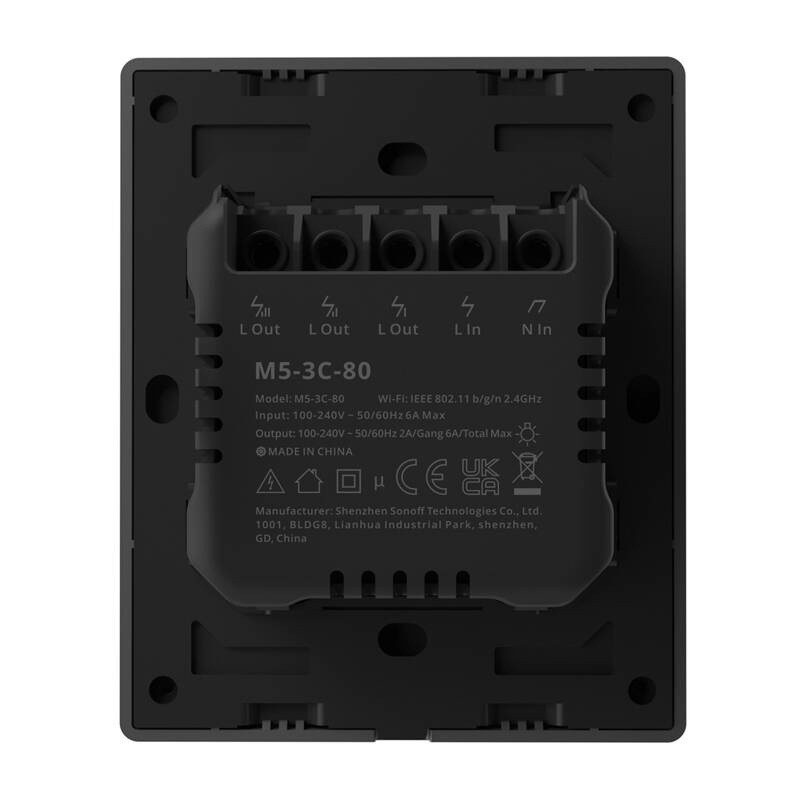

Rated voltage 100-240 V AC, 50/60 Hz
Output 100-240 V AC, 50/60 Hz
Output current 6 A (2 A per channel)
Maximum power 1320 W (440 W per channel)
Operating temperature -10°C to 40°C
Microcontroller (MCU) ESP32
Certifications CE
Dedicated application eWeLink
Voice control Yes (Alexa, Google Home, Alice, Siri)
Compatibility NSPanel, DW2-WiFi door sensor
Additional features Adjustable LED indicator, schedules and automatic scenes, bi-directional and omni-directional light control

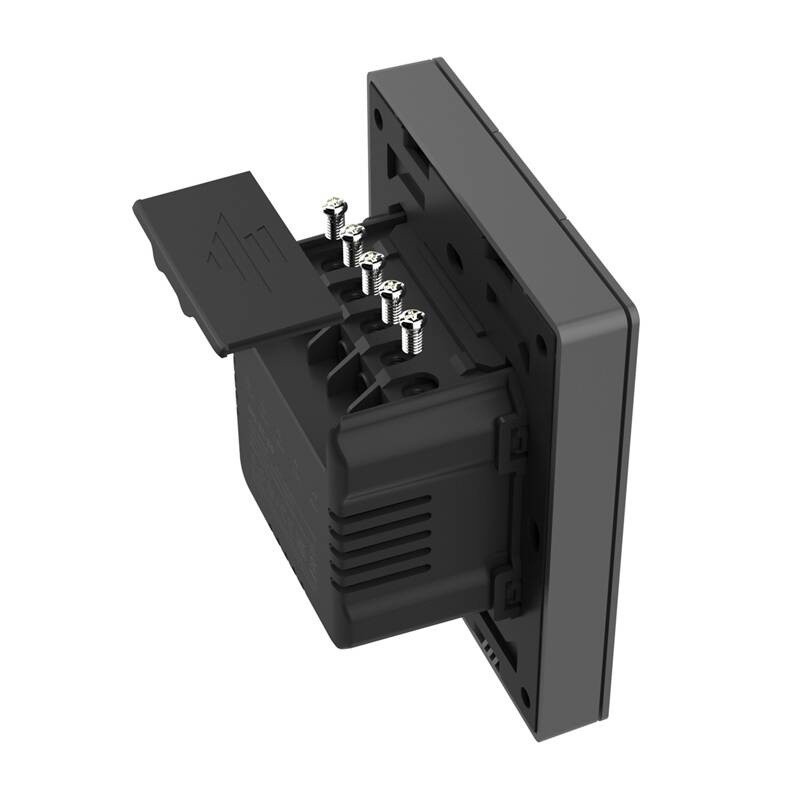

Installation In a standard mounting box (compatible with most mounting boxes)


Gamintojas Sonoff
Connectivity Wi-Fi
App Google Home,
Amazon Alexa,
IFTTT,
SmartThings
Gross weight 170 g.
Net weight 137 g.
Box length 9,00 cm.
Box width 7,50 cm.
Box height 4,00 cm.
