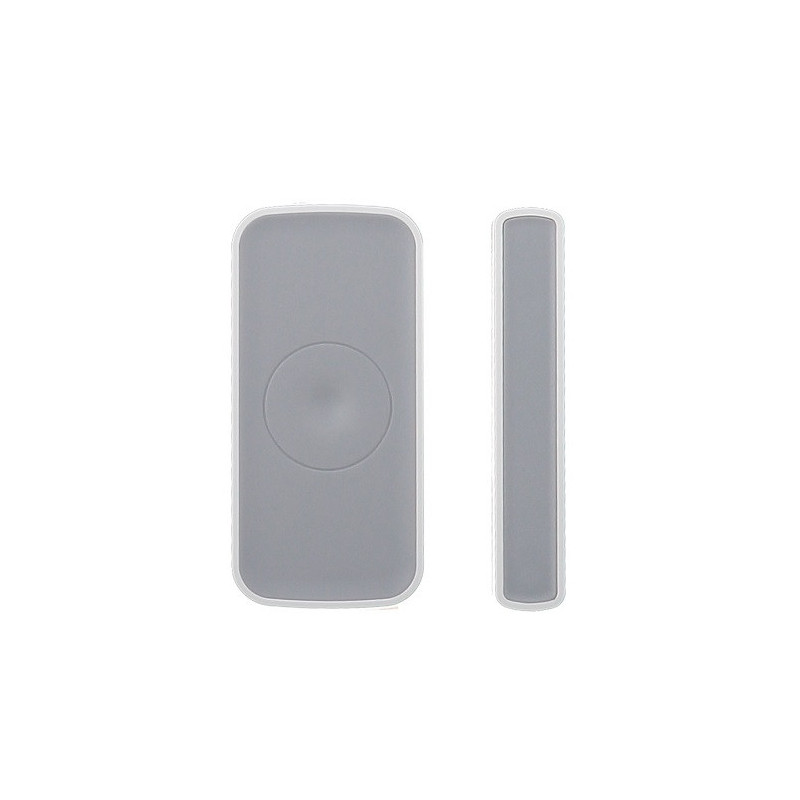

TUYA smart door, window sensor, ZigBee

TUYA smart door, window sensor, ZigBee.
Features:

• This product is a smart door/window sensor that helps you monitor the status of doors or windows.


• It uses ultra-low-power ZigBee wireless networking technology, which results in longer battery life.


• It can sense the open or closed state of doors or windows when the sensor comes into contact with or separates from the magnet.


• The dual sensor design allows for more flexible installation and easier adaptation to the required zones.


• The free SmartZone mobile app is used for settings.


• Suitable for monitoring homes, villas, factories, computer rooms, shops, hotels, office buildings, banks and many other places for possible intrusion.


• The bottom of the product has a reliable 3M adhesive, the sensor can be glued directly to the desired surface without damaging it.


• Thanks to the DIY principle, it can be installed in a few minutes.

Notes:

• Align both parts, the distance between the sensor and the magnet must be less than 15 mm.


• The sensor should be installed in a fixed location, such as a door jamb or window frame, while the magnet can be installed in an active location, such as a doorknob.

Technical data:

• Alarm current: <=30uA.


• Static current: <=5uA.


• Detection distance: > 15 mm.


• Communication protocol: Zigbee.


• Wireless network distance: <=100 m (in open area).


• Operating voltage: DC 3V (2x AAA battery, - batteries included).


• Operating temperature: -10°C- +50°C.


• Operating humidity: Mounting: on a door or window (with 3M adhesive).


• Dimensions:


• Detector: 76x36.6x16.5 mm.


• Magnet: 76x13.9x16.5 mm.


• Color: white/light gray.
