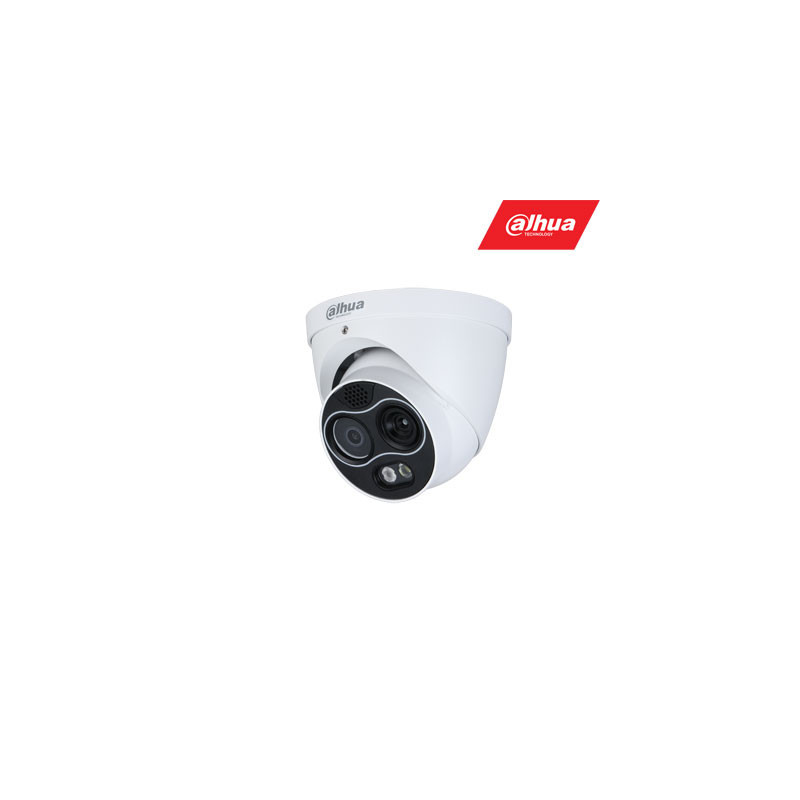

Thermal hybrid IP camera TPC-DF1241-D3F4. Thermal resolution 256x192, lens 2mm + 4MP 4mm.
Product reference:
14-6939554923302
• Uncooled VOx thermal sensor technology. • Athermalized lens (thermal camera), no focus. • 1/2.7 inch 4 megapixel progressive scan CMOS. • Supports ROI, motion detection, color palettes. • Smoke and call behavior detection. • Supports fire detection and alarm. • Integrated 1/1 alarm input/output. • Micro SD memory, IP67, PoE. • Smart connection with light signal and sound. • Dual image fusion (visible and thermal image)
Thermal hybrid IP camera TPC-DF1241-D3F4. Thermal resolution 256x192, lens 2mm + 4MP 4mm.
Product reference:
14-6939554923302
• Uncooled VOx thermal sensor technology. • Athermalized lens (thermal camera), no focus. • 1/2.7 inch 4 megapixel progressive scan CMOS. • Supports ROI, motion detection, color palettes. • Smoke and call behavior detection. • Supports fire detection and alarm. • Integrated 1/1 alarm input/output. • Micro SD memory, IP67, PoE. • Smart connection with light signal and sound. • Dual image fusion (visible and thermal image)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Thermal hybrid IP camera TPC-DF1241-D3F4. Thermal resolution 256x192, lens 2mm + 4MP 4mm.
Features:• Uncooled VOx thermal sensor technology. • Athermalized lens (thermal camera), no focus. • 1/2.7 inch 4 megapixel progressive scan CMOS. • Supports ROI, motion detection, color palettes. • Smoke and call behavior detection. • Supports fire detection and alarm. • Integrated 1/1 alarm input/output. • Micro SD memory, IP67, PoE. • Smart connection with light signal and sound. • Dual image fusion (visible and thermal image).Technical specifications:
Thermal• Detector type Vanadium oxide Uncooled FPA. • Max. 256 × 192 resolution. • Pixel pitch 12 µm. • Spectral range 8 µm-14 µm. • Thermal sensitivity (NETD) < 50 mK (@f/1.0,25Hz,300K). • Focal length 2 mm. • Field of view H: 87.8°, V: 63.8°. • Close focus distance 0.3 m (1.64 ft). • Aperture F1.0. • Digital detail. • Enhancement (DDE) Yes. • Digital zoom 16 ×. • AGC Auto; manual. • Noise reduction 2D NR; 3D NR. • Image flip 90°; 180°; 270°. • 18 color palettes (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/Globow/Iconbow1/Iconbow2, etc.) 3 fusion modes (warm color; cold color; iron red).
Visible• Image Sensor 1/2.7 inch CMOS. • Max. 2336 × 1752 Resolution. • Pixel 4MP. • Electronic Shutter Speed 1/30000 s-1 s. • Min. Illumination Color: 0.05 lux B/W: 0.005 lux 0 lux (IR on). • IR Illumination Distance = 30 m (98.43 ft). • IR Illumination On/Off. • Control Auto; Manual. • Focal Length 2 mm • Aperture F2.2 • Field of View H: 94° V: 72° D: 116°. • Fixed Focus Control. • Close Focus Distance 0.3 m. • Day/Night Auto (ICR); Color and B/W. • BLC Yes. • WDR DWDR. • HLC Yes. • White Balance Auto/Manual/Indoor/Outdoor/Tracking/Street Lamp/Natural. • AGC Auto; Manual. • Noise Reduction 2D NR; 3D NR. • S/N Ratio = 55 dB. • Region of Interest (ROI) Yes. • Image Flip 90°; 180°; 270°. • Exposure Compensation Yes.
Intelligence• General Intelligence Tripwire, Intrusion. • Advanced Intelligence: Fire Detection and Alarm, Cold and Hot Spot Tracking, People and Vehicle Classification, Smoke Detection, Call Detection.
Video and audio• Video compression H.265 / H.264M / H.264H / H.264B / MJEPG
Resolution• Thermal: Main stream: 1280 × 960 (1.3M) / XVGA (1024 × 768) / VGA (640 × 480) / 256 × 192, 1280 × 960 by default Substream: VGA (640 × 480) / 256 × 19, 256 × 192 by default. • Image: Main stream: 2336 × 1752 / 1080P (1920 × 1080) / 720P (1280 × 720) / D1 (704 × 576), 2336 × 1752 by default Substream: 720P (1280 × 7) 576)/CIF (352 × 288), 352 × 288 by default.
Frame rate• Thermal: 50 Hz: (main stream) 1 fps - 25 fps adjustable, 25 fps default; (sub stream) 1-25 fps adjustable, 15 fps default 60 Hz: (main stream) 1 fps - 30 fps adjustable, 30 fps default; (sub stream) 1-30 fps adjustable, 15 fps default. • Image: 50 Hz: (main stream) 1 fps adjustable - 25 fps, default 25 fps; (substream) 1-25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps - 30 fps adjustable, 30 fps by default; (substream) 1-30 fps adjustable, 15 fps by default. • Audio compression G.711a; G.711mu; PCM.
Network• Protocol: HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP. • Edge Storage Micro SD card (256G). • Interoperability ONVIF; CGI. • Browser: IE: IE8 and above and browser with IE core Google: 42 and below Firefox: 42 and below. • 10 user/host. • Security: Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access.
Certification• CE: EN55032:2015; EN61000-3-2:2014. • FCC: CFR 47 FCC Part 15 Subpart B; ANSI C63.4-2014.
Port• Network 1 10M/100M Ethernet port (RJ-45). • 1 audio input. • 1 audio output. • Alarm input 1. • 1 alarm output. • RS-485 1 pair.
Power• Power supply 12V±20% DC/PoE. • Basic power consumption: <8W (LED off). • Max.: <14W (LED on, heater on).
Environment• Operating temperature -30°C to +60°C (-22°F to +140°F). • Storage temperature -30°C to +70°C (-22°F to 158°F). • Operating humidity = 95%. • Protection IP67, surge protection 6KV, anti-electrostatic 6KV (contact), anti-electrostatic 8KV (air).
Structure• Product dimensions 122 mm × 122 mm × 112 mm (4.8' × 4.8' × 4.41'). • Package dimensions 155 mm × 155 mm × 135 mm (6.10' × 6.10' × 5.31'). • Net weight = 0.85 kg (1.87 lb). • Gross weight = 1 kg (2.20 lb). Accessories • PFB203W. • PFA130-E. • PFA106. • PFB220C.
