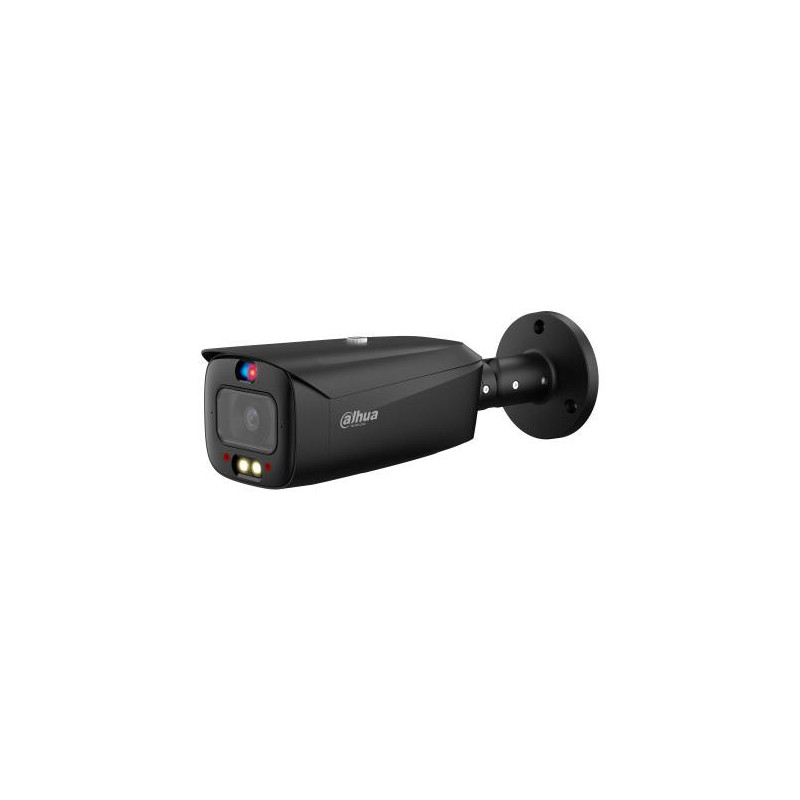

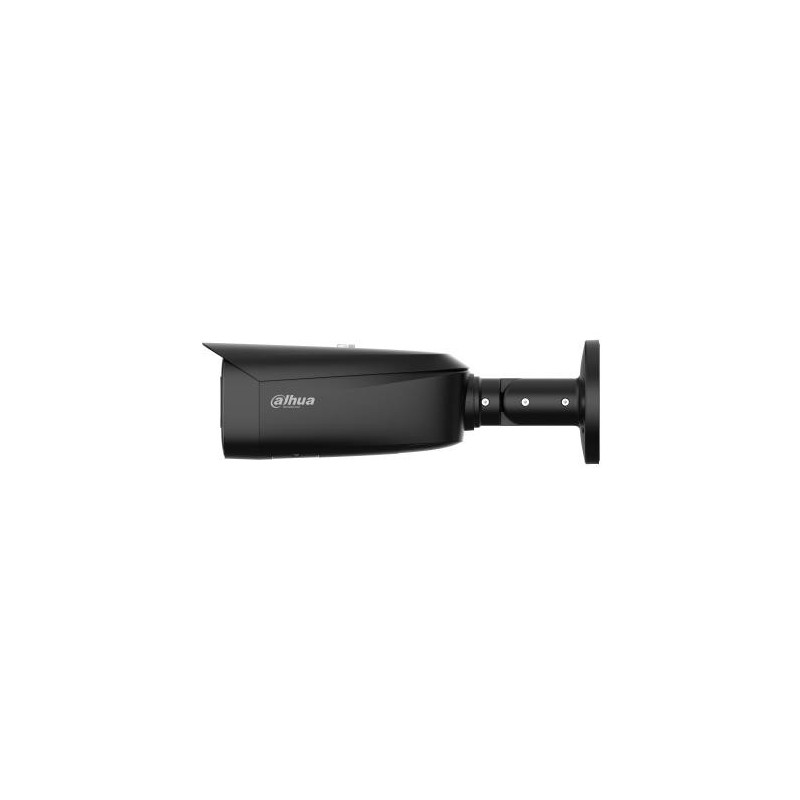

NET CAMERA 5MP BULLET / HFW3549T1-ASPV0280BS5-B DAHUA
Product reference:
2-6939554967498
NET CAMERA 5MP BULLET / HFW3549T1-ASPV0280BS5-B DAHUA
Product reference:
2-6939554967498
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
- 5MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
- Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps
- H.265 codec, high compression rate, low bit rate
- Built-in warm illuminator, and the max. illumination distance: 40 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing
- Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker
- 12V DC/PoE power supply
- IP67 protection
- SMD Plus
- Red and blue flashlight alarm
| Summary | Dahua Technology WizSense IPC-HFW3549T1-AS-PV. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Bullet. Minimum illumination: 0.003 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 98°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 67.4 m, Observe distance: 27 m, Recognize distance: 13.5 m |
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/TiOC/IPC-HFW3549T1-AS-PV=S5 |
| Unit Box Height | 0.325 |
| Unit Box Length | 0.57 |
| Unit Box Width | 0.045 |
| Form factor | Bullet |
| Housing material | Metal/Plastic |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | Black |
| Alarm input/output | Yes |
| Certification | CE-LVD: EN62368-1; CE-EMC: 2014/30/EU; FCC: 47 CFR FCC 15, B |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Angle of rotation | 360 ° |
| Camera pan control | Yes |
| Camera shutter speed | 1/3 - 1/100000 s |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 129 ° |
| Lens viewing angle, horizontal | 98 ° |
| Lens viewing angle, vertical | 71 ° |
| Minimum illumination | 0.003 lx |
| Pan range | 0 - 360 ° |
| Tilt angle range | 0 - 90 ° |
| White balance | Auto/Custom modes/Manual/Natural/Outdoor |
| Number of sensors | 1 |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 1.2 m |
| Detect distance | 67.4 m |
| Fixed focal length | 2.8 mm |
| Identify distance | 6.7 m |
| Maximum aperture number | 1 |
| Number of lenses | 1 |
| Observe distance | 27 m |
| Recognize distance | 13.5 m |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 40 m |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 32 - 8192 Kbps, 12 - 8192 Kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 2592 x 1944 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2304 x 1296/2560 x 1440/2592 x 1944/2688 x 1520/640 x 480 (VGA)/704 x 480/704 x 576 |
| Total megapixels | 5 MP |
| Video compression formats | H.264/H.264+/H.265/H.265+/M-JPEG |
| Video streaming | Yes |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Built-in microphone | Yes |
| Voice codecs | AAC/G.711a/G.711Mu/G.723/G.726/PCM |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP |
| Wi-Fi | No |
| Built-in HDD | No |
| Internal memory | 512 MB |
| ROM capacity | 128 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Intelligent Video Surveillance (IVS) system features | Intrusion/Tripwire |
| Mirror | Yes |
| Video motion detection | Yes |
| Web-based management | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 2 W |
| Power consumption (Power over Ethernet (PoE)) | 2.6 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 - 95 % |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -40 - 60 °C |
| Depth | 84.7 mm |
| Length | 288.4 mm |
| Weight | 1000 g |
| Width | 94.4 mm |
| Package weight | 1230 g |
| Number of cameras | 1 |
| Model | IPC-HFW3549T1-AS-PV |
| Units per Shipping Box | 8 |
| Unit Calculated Volume | 0.008336 cubm |
| Unit Calculated Weight | 1.38 kg |
