Electronic cylinder WELOCK PCB10EBL41

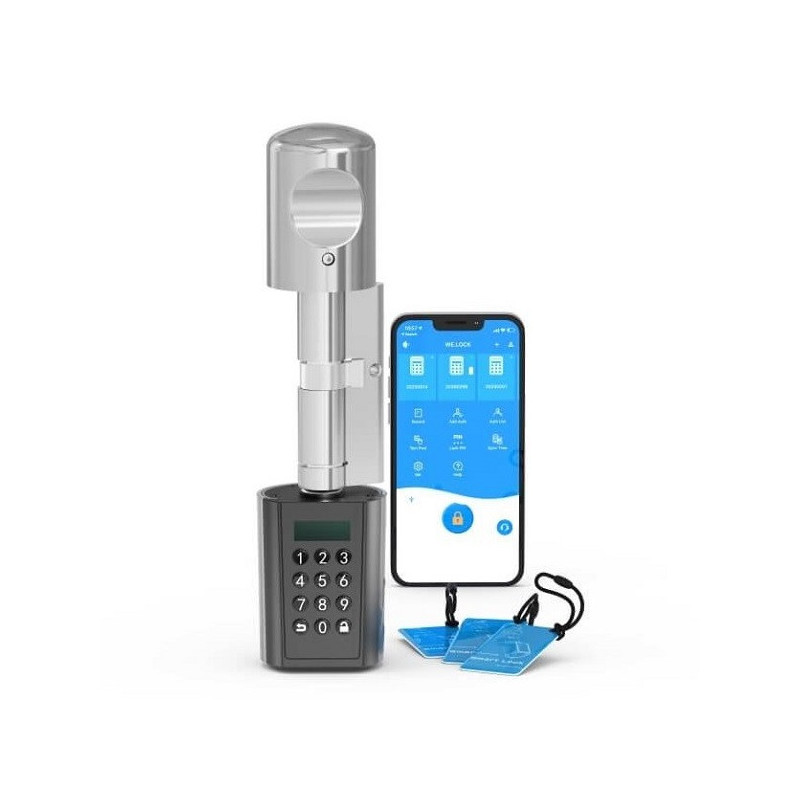

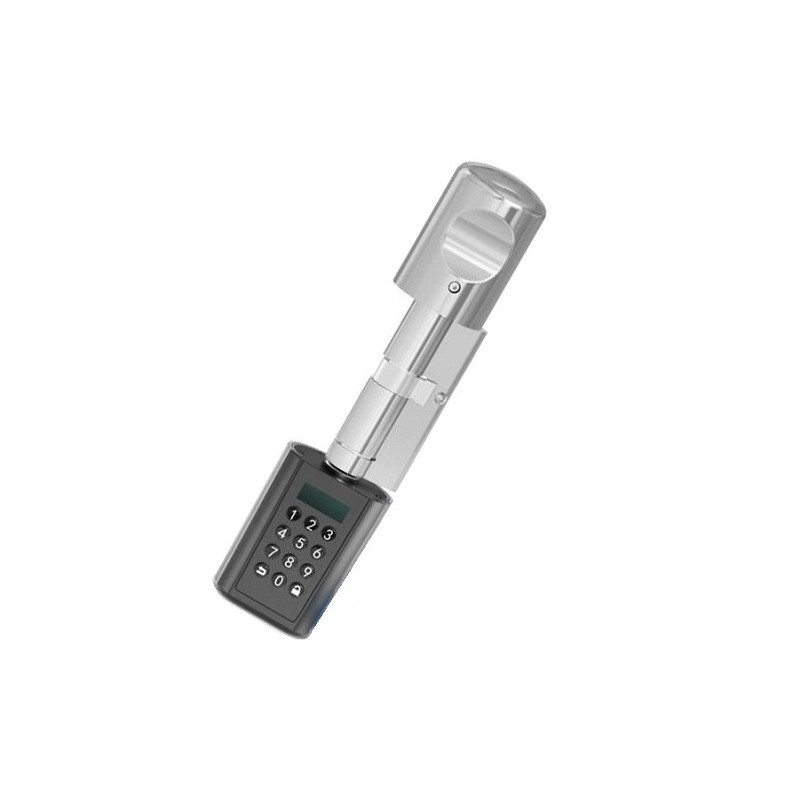

Electronic cylinder Welock PCB10EBL41The smart door lock cylinder is an innovative yet simple solution in access control, offering features such as keyless entry or remote door access control via phone. It is a reliable electronic key that is installed in the door, operates on batteries, and is extremely easy to install, as there is no need to run wires, install additional shutters, readers, etc.Features:

• Smart key functions: provides access to unlock and lock the doors with a mobile phone via Bluetooth / or using a password (memory holds up to 10 digit codes) / or by swiping an RFID card (up to 20 cards can be paired). The doors are locked and unlocked by turning the lock handle.


• The lock is easy to install by following the instructions in the included manual or videos online.


• The adjustable cylinder length allows it to be adapted to doors of various widths (from 55mm to 105mm).


• Highly secure authentication: The lock is equipped with Bluetooth Low Energy (BLE) and the latest bank-grade encryption technology.


• Guest Access: Temporary passwords grant access for a set amount of time, never worry about lost, stolen or copied keys again.


• Door opening records capture lock activity 24/7.


• Emergency unlocking: If the batteries run out, you can use a portable charger to unlock the door.


• Supports remote control via Welock Wi-Fi controller (sold separately).

Technical data:

• Lock control: Bluetooth, RFID, password, temporary password.


• Password capacity: 1 admin + 9 users.


• Password digits: 6-10.


• Number of RFID cards supported: 20 (only 3 RFID cards are included).


• Cylinder standard: EU.


• Door thickness: 55mm~105mm.


• Power supply: 3x AAA batteries (not included).


• Battery life: ~1 year.


• Keyboard: with backlight.


• Display: LED.


• Material: 304 stainless steel + aluminum + plastic.


• Safety class: IP65.


• App: WeLock app (iOS, Android, QR code).


• Mechanical life: ~100,000 cycles.


• Operating temperature: -30°C ~ 60°C.
