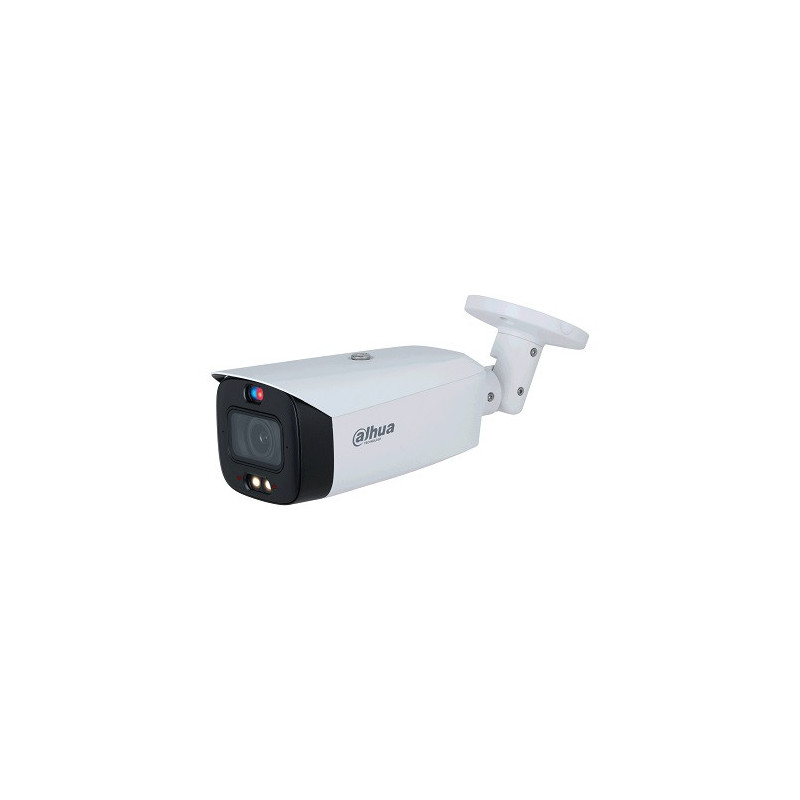

Camera - 4K IP Network 8MP HFW3849T1-ZAS-PV 2.7-13.5mm Lens
Product reference: 14-6923172535467

The 4K IP network camera has an 8MP CMOS sensor with a maximum resolution of 3840 x 2160. The device has a motorized vari-focal lens with a focal length of 2.7 mm to 13.5 mm and supports advanced video compression formats such as H.265 and H.264.

Camera - 4K IP Network 8MP HFW3849T1-ZAS-PV 2.7-13.5mm Lens

Camera - 4K IP Network 8MP HFW3849T1-ZAS-PV 2.7-13.5mm Lens

Product reference: 14-6923172535467

The 4K IP network camera has an 8MP CMOS sensor with a maximum resolution of 3840 x 2160. The device has a motorized vari-focal lens with a focal length of 2.7 mm to 13.5 mm and supports advanced video compression formats such as H.265 and H.264.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
47203 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

4K IP Network Camera 8MP HFW3849T1-ZAS-PV 2.7-13.5


The 4K IP network camera has an 8MP CMOS sensor with a maximum resolution of 3840 x 2160. It includes a motorized varifocal lens with a focal length of 2.7 mm to 13.5 mm and supports advanced video compression formats such as H.265 and H.264.


  • High-definition 4K resolution (3840 × 2160) for crystal-clear images.
  • Advanced night vision capabilities with illumination range up to 50 meters.
  • Smart features including Intelligent Video Surveillance (IVS) for security monitoring.
  • Durable construction with IP67 rating for protection against dust and water.

Features

Image Sensor 1/2.8" CMOS
ROM 128MB
RAM 1GB
Scanning System Gradual
Electronic Shutter Speed Auto/Manual 1/3 s-1/100,000 s
Min. Lighting 0.004 lux@F1.0 (Color, 30 IRE); 0.0004 lux@F1.0 (B/W, 30 IRE); 0 lux (light on)
S/N Ratio ≥56dB
Lighting Distance 50 m (164.04 ft) (IR); 40 m (131.23 ft) (warm light)
Rotation/Tilt/Rotation Range Pan: 0°-360°; Tilt: 0°-90°; Rotation: 0°-360°

Lens

Mounting Type ?16
Max Aperture F1.0
Field of View Horizontal: 108°-34°; Vertical: 56°-19°; Diagonal: 130°-39°
Close Focus Distance 1.5 m (4.92 ft)

Video

Image Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported in substream)
Video Frame Rate Main stream: 3840 × 2160@ (1-30 fps); Sub stream: 704 × 576@ (1-25 fps)/704 × 480@ (1-30 fps)
Flow Ability 3 streams
Bit Rate Control CBR/VBR

Network

Network Interface RJ-45 (10/100 Base-T)
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Spacing ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

Power supply

Power Source 12V DC/PoE (802.3af)
Power Consumption Basic: 4.3 W (12 VDC); 5.5 W (PoE); Max: 7.9 W (12 VDC); 9.8 W (PoE)

Environment

Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F); Less than 95% RH
Storage Conditions -40 °C to +60 °C (-40 °F to +140 °F)

Construction

Housing Metal + plastic
Dimensions 288.4 mm × 94.4 mm × 84.7 mm (11.35" × 3.72" × 3.33")
Net Weight 1.05 kg (2.31 lb)
Total Weight 1.35 kg (2.98 lb)
