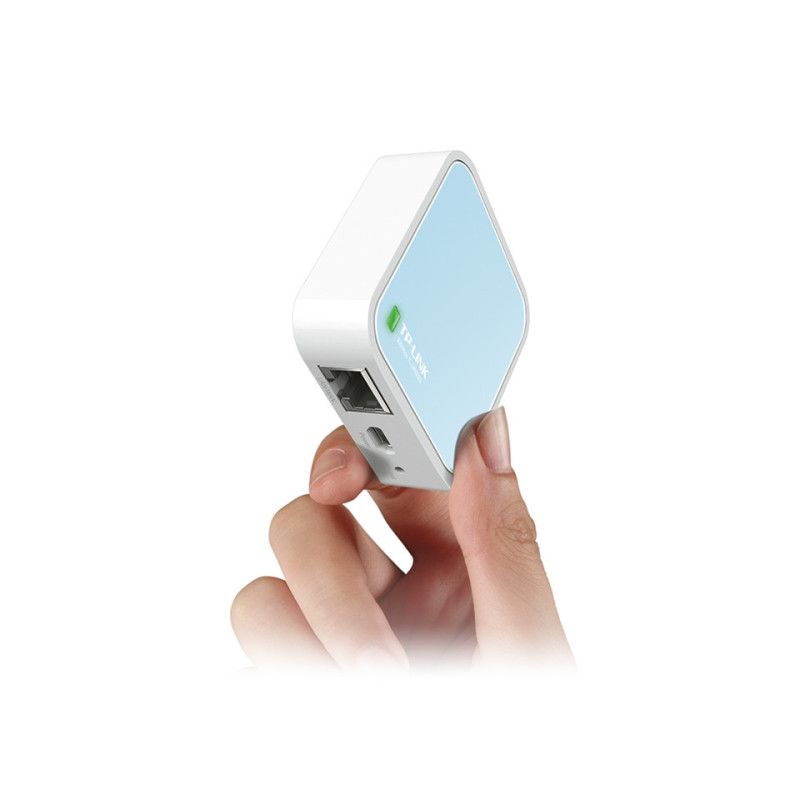

Wireless Nano Router TL-WR802N

TP-LINK's 300 Mbps TL-WR802N WiFi nano router is ideal for use on the go, and turns a wired internet access into a WiFi hotspot for multiple devices in the blink of an eye. Thanks to its compact size, it fits perfectly into any handbag or pocket. With a speed of 300 Mbps it is powerful enough to handle the most common Internet applications.

WiFi speed up to 300 Mbps, ideal for video streaming and online gaming Compact design, ideal for on the go Multiple operating modes: AP (Standard), Client, Router, Repeater and Bridge Power supply via external power adapter or via USB port on the computer Easy setup in just a few minutes.

HARDWARE FEATURES Interface 1 10/100Mbps WAN/LAN Port 1 Micro USB Port 1 Reset Button Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Dimensions ( W x D x H ) 2.2 x 2.2 x 0.7 in. (57 x 57 x18 mm) Antenna Type On-Board

WIRELESS FEATURES Frequency 2.4-2.4835GHz Signal Rate 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) Reception Sensitivity 270M: -65dBm@10% PER 130M: -70dBm@10% PER 108M: -82dBm@10% PER 54M: -73dBm@10% PER 11M: -82dBm@8% PER 6M: -86dBm@10% PER 1M: -90dBm@8% PER Transmit Power CE: <20dBm(2.4GHz) FCC: <30dBm Wireless Modes Router Mode, Repeater Mode, Client Mode, AP Mode, WISP Router Mode Wireless Functions Enable/Disable Wireless Radio, WMM, Wireless Statistics Wireless Security 64/128/152-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

SOFTWARE FEATURES Quality of Service WMM, Bandwidth Control WAN Type Dynamic IP/Static IP/PPPoE/ PPTP/L2TP Management Access Control Local Management Remote Management DHCP Server, Client, DHCP Client List, Address Reservation Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ Dynamic DNS DynDns, Comexe, NO-IP VPN Pass-Through PPTP, L2TP, IPSec (ESP Head) Access Control Local Management Control, Host List, Access Schedule, Rule Management Firewall Security DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding

OTHERS Certification CE, FCC, RoHS Package Contents TL-WR802N Power Adapter USB Cable Ethernet cable Quick Installation Guide Resource CD System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 10/8.1/8/7 MAC®OS, NetWare®, UNIX® or Linux Environment Operating Temperature: 0 ~40 (32 ~104 ) Storage Temperature: -40 ~70 (-40 ~158 ) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
