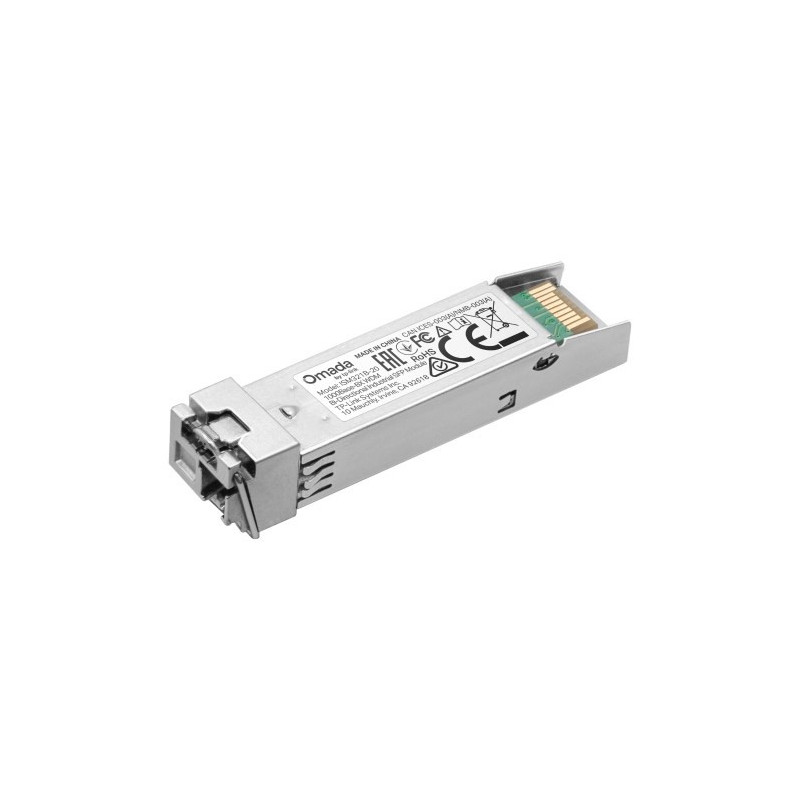

Network - TP-Link ISM321B-20 1250Mbit/s SFP Single-Mode Fiber
Product reference: 14-1210002602013

TP-Link ISM321B-20 is a fiber optic SFP transceiver module that supports a maximum data rate of up to 1250 Mbit/s over single-mode fiber. It operates in a temperature range of -40 °C to 85 °C and can transmit data up to 20,000 meters.

Network - TP-Link ISM321B-20 1250Mbit/s SFP Single-Mode Fiber

Network - TP-Link ISM321B-20 1250Mbit/s SFP Single-Mode Fiber

Product reference: 14-1210002602013

TP-Link ISM321B-20 is a fiber optic SFP transceiver module that supports a maximum data rate of up to 1250 Mbit/s over single-mode fiber. It operates in a temperature range of -40 °C to 85 °C and can transmit data up to 20,000 meters.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
4966 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

TP-Link Ism321B-20 Network Switching Module Fiber Optic 1250 Mbit/s SFP


TP-Link ISM321B-20 is a fiber optic SFP switching module that supports a maximum data transfer rate of up to 1250 Mbit/s over single-mode fiber. It operates in a temperature range of -40 °C to 85 °C and can transmit data up to 20,000 meters.


  • High-speed data transfer with a maximum rate of 1250 Mbit/s.
  • Supports single-mode fiber optic connections with a maximum distance of 20,000 meters.
  • Hot-swappable design allows for easy installation and maintenance without downtime.
  • Compliant with IEEE 802.3z network standards for reliable operation.

Features

Product Type Fiber Optic SFP Switching Module
Product Brand TP-Link
Model ISM321B-20

Specifications

Dimensions 56.4 × 11 × 13.4 mm (W × H × D)
Weight Not specified
Color Gray

Technical Data

Input Voltage 3.3V
Operating Temperature Range -40°C to 85°C
Storage Temperature Range -40°C to 85°C
Operating Relative Humidity 5 - 85%
Single Mode Fiber Supported Yes
Maximum Transmission Distance 20,000 m
Maximum Data Transfer Rate 1250 Mbps
Supported Fiber Optic Cable Diameters (Core/Sheath) 9/125 µm
Fiber Optic Connector LC (UPC)
Network Standards IEEE 802.3z

Safety Warning

Use the product for its intended purpose to ensure optimal performance and safety.
