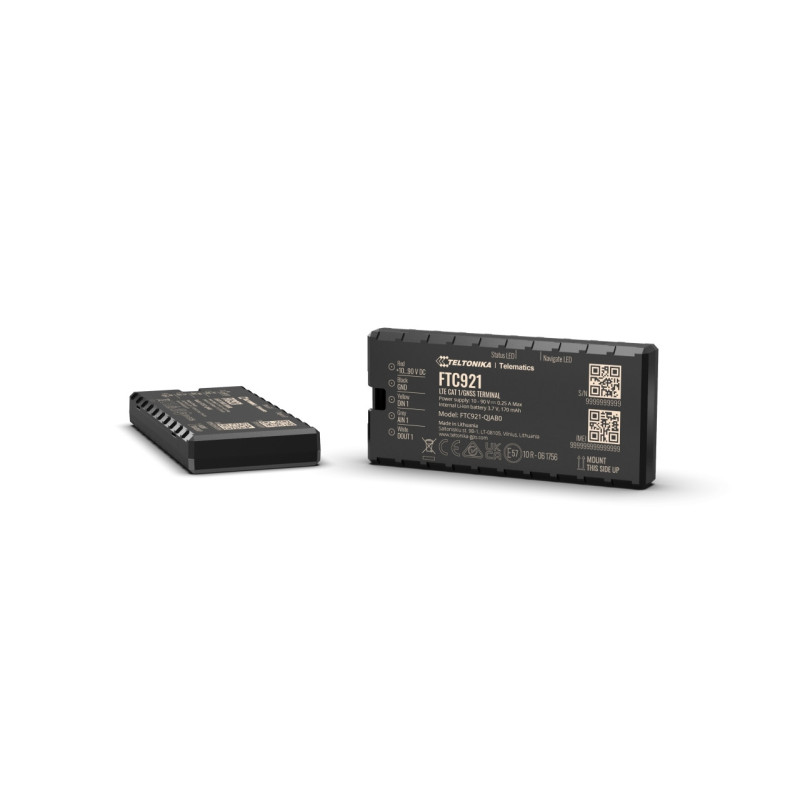

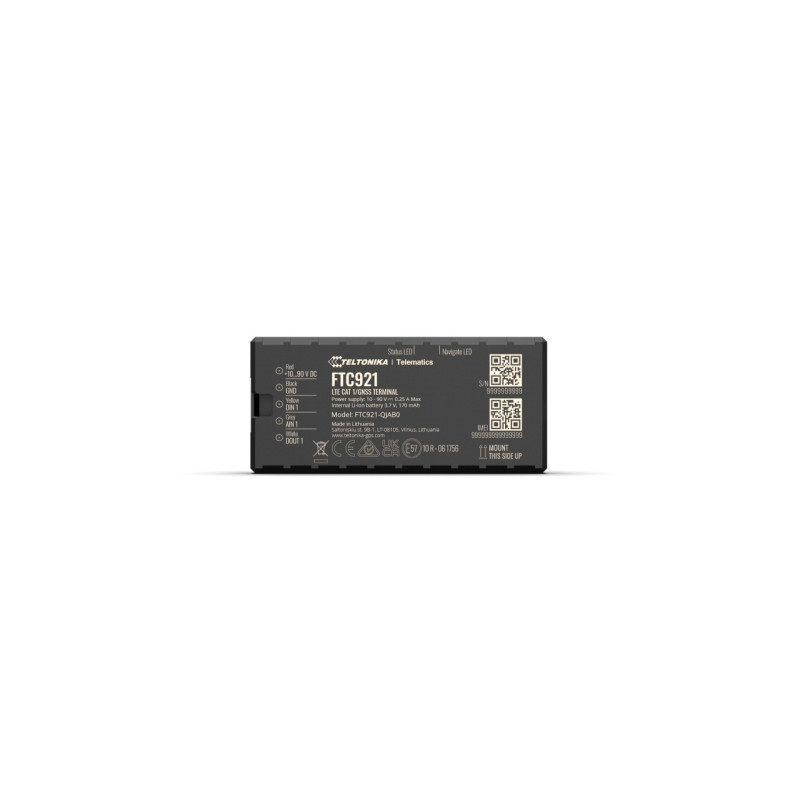

TELTONIKA High Voltage 4G LTE Cat 1 Vehicle GPS Tracker

FT PLATFORM
The Fleet Telematics (FT) platform offers advanced software and hardware that takes vehicle tracking capabilities to a new level.

HIGHER GNSS ACCURACY
More accurate GNSS with up to 41 visible satellites, ensuring significantly higher location quality and reliable location-based services.

LONGER OPERATION, LESS ENERGY CONSUMPTION
Optimized sleep modes allow the device to operate autonomously for long periods of time and significantly reduce vehicle battery drain.

HIGH VOLTAGE POWER SUPPLY
Advanced integration capabilities ensure seamless use in electric motorcycles, electric mopeds, e-rickshaws and other electric vehicles.

Product
Model name: FTC921-QJAB0

Module
Name: EG915U-EU
Technology: LTE CAT 1/GSM/GPRS/GNSS

GNSS
GNSS: GPS, GLONASS, GALILEO, BEIDOU
Receive type: 135 tracking/acquisition channels
Tracking sensitivity: -165 dBM
Position Accuracy: < 1.8 m CEP
Velocity Accuracy: < 0.1 m/s (within +/- 15% error)
Hot start: < 1 s
Warm start: < 25 s

Cellular
Technology: LTE CAT 1/GSM
2G bands:GSM: B2/B3/B5/B8
4G LTE bands: LTE FDD B1/B3/B5/B7/B8/B20/B28
Data transfer:
LTE FDD (CAT 1): Max. 10 Mbps (DL) / Max. 5 Mbps (UL)
GSM (GPRS): Max. 85.6 Kbps (DL) / Max. 85.6 Kbps (UL)
Transmit power:
Class 5 for GSM850/900: 30±5dBM
Class 3 for GSM1800/1900: 29±5dBM
Class 3 for LTE-FDD: 26±5dBM
Data support: SMS (TEXT, PDU), Network protocols (TCP)

Data codec
Codec support: Codec 8 Extended

Power
Input voltage range: 10-90 V
Internal Back-up battery: 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Internal fuse: 3A, 125V
Power consumption:
At 12V < 25 mA (nominal with no load)
At 12V < 0.25A Max (with full Load/Peak)

Physical specification
Dimensions: 93 x 43 x 12.5 mm (L x W x H)
Weight: 65 g

Operating environment
Operating humidity: 65 ± 20% non-condensing
Operating temperature: -30 °C to +85 °C
Storage temperature: -30 °C to +85 °C
Battery charge temperature: 0 °C to +45 °C
Battery discharge temperature: -20 °C to +60 °C
Battery storage conditions:
-10 °C to +50 °C for 1 month
-10 °C to +35 °C for 3 months
0 °C to +30 °C for 1 year

Interface
Digital Inputs: 1
Digital Outputs: 1
Analog Inputs: 1
GNSS antenna: Internal High Gain
Cellular antenna: Internal High Gain
USB: USB 2.0 USB Type-C
LED indication: 2 status LED lights
SIM: Nano SIM
Memory: 128MB internal flash memory

Features
Sensors: Accelerometer
Scenarios: Crash Detection, Over Speeding, Trip, Odometer, Eco Driving, Excessive idling, Network Jamming Detection, Unplug Detection, Auto Geofence, Towing Detection, Static Navigation, Custom Scenarios
Sleep modes: Online sleep, Deep sleep, Power off sleep
Configuration and firmware update: FOTA WEB, Teltonika Configuration Tool (TCT)
SMS: Configuration, DOUT control, Debug
GPRS commands: Configuration, DOUT control, Debug
Time Synchronization: GNSS, NITZ, NTP
Ignition detection: Digital Input 1, Accelerometer, External Power Voltage

Certifications approvals
Regulatory: CE/RED, E-Mark, RCM, RoHS, REACH, Pulse 5b
