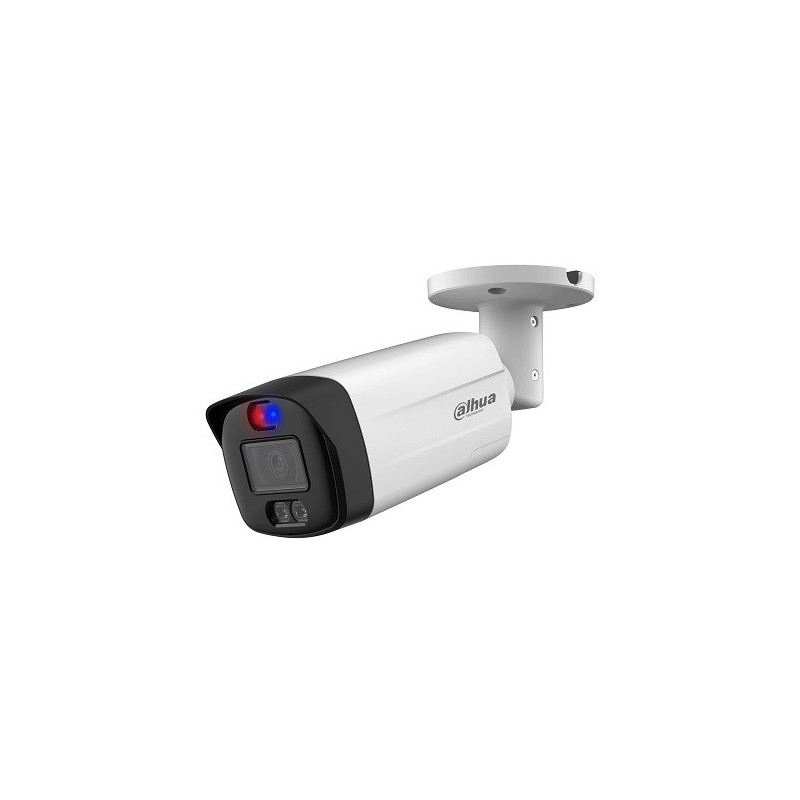

HD-CVI for STARLIGHT cylindrical 4K, 2.8mm obj. F1.0, LED+IR, WDR, with microphone

HD-CVI for STARLIGHT cylindrical 4K, 2.8mm obj. F1.0, LED+IR, WDR, with microphoneHD-CVI, TVI, AHD, CVBS smart 4K cylindrical camera, dual illumination, active deterrence, with red/blue flashing light and sound alarm; with integrated microphone, LED/IR illumination up to 40m (Smart IR), 4K CMOS sensor, 4K (3840 × 2160), max. 15fps, 2.8mm/F1.0 fixed lens (lens viewing angle 106°), 4x digital zoom; CVI/ CVBS/ AHD/ TVI signals are switchable, HD-CVI technology allows HD image transmission via coaxial cable without loss of quality up to 700m, 3-axis adjustment, 3D-NR, HLC, HLC-Pro, BLC, 120dB WDR, IP67, model: DH-ME1809TH-A-PV, 2.8mm. Brief technical characteristics: • 4K @15 fps ultra HD resolution TiOC HDCVI camera with dual IR LED illumination up to 40m and integrated microphone, compatible with AI XVR. • TVI, AHD, CVBS, CVI switching on the camera cable. • 4K CMOS sensor. • 2.8mm/F1.0 fixed lens (lens viewing angle 106°). • Number of effective pixels: 3840 (H) × 2160 (V). • Image resolution: 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480). • Compression rate: 4k@15 fps; 5M@25 fps; 4M@25 fps. • 2pcs. IR LEDs / 2pcs. LED - warm light. • LED/IR illumination up to 40m. Smart IR+LED, LED mode, IR mode. • Min. illumination: 0.001Lux/F1.0 color 30IRE; 0.0001Lux/F1.0 B/W 30IRE; 0Lux IR/LED on. • Privacy zones: 8 (on/off). • D/N: switches from color operation to black and white at a certain light intensity, IRC CUT filter. Auto ICR/ color/ B/W. • Electronic shutter: Auto/Manual, 1/3s~1/100,000s. • White balance: Auto/Manual BLC, HLC, HLC-Pro; 120dB WDR. • Signal-to-noise ratio (S/N ratio): > 65 dB. • Scanning system: progressive. • Fixed focal. • 3D-DNR: noise reduction technology. • Video output: 1 BNC HDCVI (high definition video output), switchable CVI/ CVBS/ AHD/ TVI. • Video format PAL. • Waterproof IP67. • 3-axis mechanism for camera adjustment (Pan: 0°~360°, Tilt: 0°~90°, Rotation: 0°~360°). • Audio warning: Audio 1: alarm; Audio 2: No parking allowed; Audio 3: No entry; Audio 4: warning zone, stay away; Audio 5: Welcome. Volume: high / medium / low; duration: 5 s-60 s; 110 dB. • With the intelligent dual lighting mechanism, the camera automatically switches to white light when the AI ​​XVR Perimeter Guard / SMD Plus function detects a target in the set area to capture clear and bright images. When the target leaves the set area, the camera automatically switches from white light to infrared light to greatly reduce light pollution. • Certifications: CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017); FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014); UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14). • Operating temperature: -40°C~+60°C, <95%RH (non-condensing). • Power supply: 12V DC ±30%. • Consumption: max. 10.45W. • Dimensions: 240.7mm×90.7mm×90.7mm. • Weight: 0.48 kg. • Compatible brackets: PFA130-E. PFB203W. PFA152-E.
