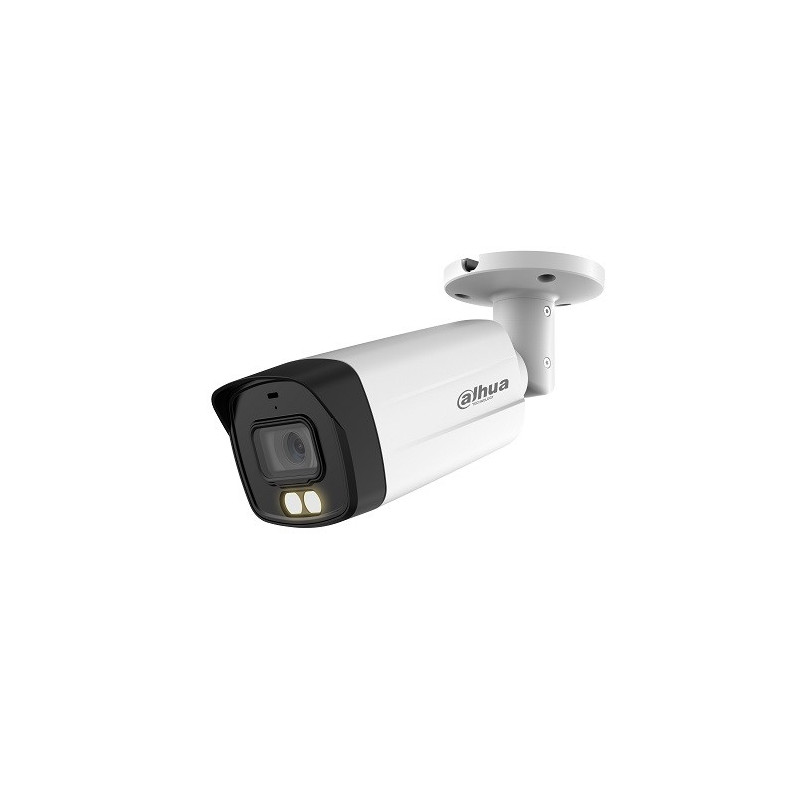

HD-CVI for STARLIGHT cylindrical 2MP, 3.6mm obj. F1.6, LED+IR, WDR, with microphone

HD-CVI camera STARLIGHT cylindrical 2MP, 3.6mm obj. F1.6, LED+IR, WDR, with microphone HD-CVI, TVI, AHD, CVBS 2MP camera cylindrical, with integrated microphone, dual illumination, LED/IR illumination up to 40m (Smart IR), 2MP CMOS sensor, 2MP (1920×1080), max. 25fps, 3.6mm/F1.6 fixed lens (lens viewing angle 86°), with microphone; CVI/ CVBS/ AHD/ TVI signals are switched, HD-CVI technology allows HD image transmission via coaxial cable without loss of quality up to 700m, 3-axis adjustment, 3D-NR, HLC, BLC, 130dB WDR, IP67, LITE series, model: DH-HFW1239TM-IL-A, 3.6mm. Short technical characteristics: • HD-CVI technology allows FULL HD image transmission via coaxial cable without loss of quality - max. distance up to 700m, via UTP cable 300m. • Integrated microphone (microphone transmission via the same coaxial cable). • TVI, AHD, CVBS, CVI switching on the camera cable. • 2MP FULL-COLOR CMOS sensor. • 3.6mm/F1.6 fixed lens (lens viewing angle 86°). • Image resolution: 1080P(1920×1080); 960H (960×576/960×480). • Effective pixel count 1920(H)×1080(V). • Compression rate: 1080P(1920×1080) @25fps. • 2pcs. IR LEDs / 2pcs. LED - warm light. • LED/IR illumination up to 40m. Smart IR+LED, LED mode, IR mode. • Min. illumination: 0.001Lux/F1.6 color 30IRE; 0.0001Lux/F1.6 B/W 30IRE; 0Lux IR/LED on. • Privacy zones: 8 (on/off). • D/N: switches from color to black and white at a certain light intensity, IRC CUT filter. Auto ICR/ color/ B/W. • Electronic shutter: Auto/Manual, 1/25s~1/100,000s. • White balance: Auto/Manual BLC, HLC, 130dB WDR. • Signal-to-noise ratio (S/N ratio): > 65 dB. • Scanning system: progressive. • Fixed iris. • 3D-DNR: noise reduction technology. • Video output: 1 BNC HDCVI (high definition video output), switchable CVI/CVBS/AHD/TVI. • Video format PAL. • Waterproof IP67. • 3-axis mechanism for camera adjustment (Pan: 0°~360°, Tilt: 0°~90°, Rotation: 0°~360°). • Certificates: CE (EN55032: 2015, EN61000-3-2: 2014, EN61000-3-3: 2013, EN55024: 2010+A1: 2015, EN55035: 2017, EN50130-4: 2011+A1: 2014, EN62368-1: 2014+A11: 2017), FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014), UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14). • Operating temperature: -40°C~+60°C, <95%RH. • Power supply: 12V DC ±30%. • Consumption: max.<4.0W. • Dimensions: 240.7mm×90.7mm×90.4mm. • Weight: 0.65 kg. Compatible mounts: • PFA130-E. • PFA135. • PFA152-E.
