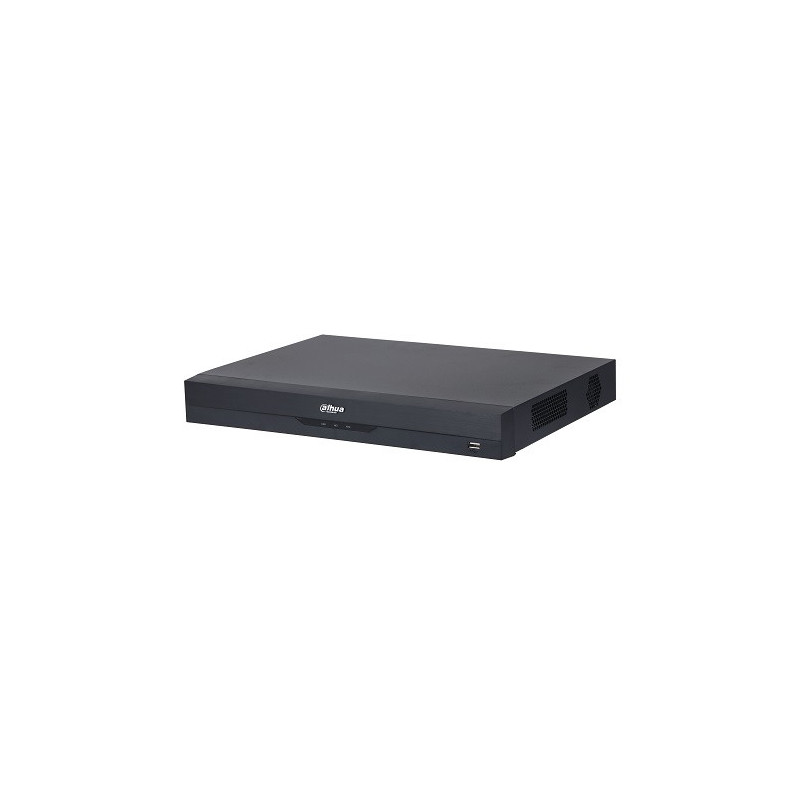

Pentabrid 4K recorder 8 cameras HDCVI 4K 7fps, 5MP 12fps(non-realtime), AI, SMD Plus

Pentabrid 4K-N/5MP 8-camera HDCVI 4K/AHD/TVI/CVBS/IP video recorder.

• Each channel can record HDCVI 4K/AHD/TVI/CVBS/IP cameras and + 8 IP cameras up to 8MP, max. 128 Mbps. HDCVI max. video recording resolution 8MP(3840x2160) 7fps (non-realtime), 5MP 12fps, 6MP 10fps, 5MP 12fps, 4K-N, 4MP/3MP 15 fps (non-realtime).


• The remaining channels are 4M-N/1080P/720P/960H/D1/CIF at 25fps (realtime).


• Compression H.265+/ H.265. 2 HDDs up to 16TB available. P2P, IOT, POS, IVS, AI, SMD Plus, 1 HDMI. ONVIF 16.12, CGI Conformant.


• Free program for video surveillance via computer, mobile phone, tablet. model: DHI-XVR5208A-4KL-I3.

Brief technical characteristics:• Pentabrid 4K 8-channel HDCVI 4K/AHD/TVI/CVBS/IP recorder recording 4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P,960H, D1, CIF HD-CVI and + 8 IP cameras 8MP image. HDCVI max. video recording resolution 8MP(3840x2160) for each channel at 7fps. Analog cameras recording resolution 960H 960x756 at 25fps. • Maximum 1080P video transmission distance via coaxial and UTP cable up to 800 meters, 720P 1200 meters, 4K/4MP 700 meters. • AI: Human face detection function (2 channels available) searches up to 12 faces simultaneously, supports up to 10 separate databases with a max. capacity of 20,000 images; perimeter protection (2 channels available). • IVS functions: crossing the line, intruding into the perimeter, missing object detection, appearing object detection (only 2 channels available). • SMD Plus (Smart Motion Detection): Human and vehicle motion detection (only 8 channels available). • Internet of Things (IoT). • POS system. • Convenient graphical user interface, controlled by mouse. • Software: Linux. • Next-generation processor. • AI Coding/H.265+/H.265/H.264+/H.264 stream compression technology. • Pentaplex - the following operations are performed simultaneously: recording, live video display, recording review, recording copy, device management, remote access via network. • Remote control and live monitoring via Ethernet (WEB): IE9, Chrome, Firefox. • Free software for device management, video viewing and archiving using a computer network or the Internet. • Free program that allows the user to monitor, view recordings of up to 144 cameras from different objects. • Free program for monitoring via mobile phone or handheld computer (DMSS mobile phone surveillance software) is suitable for phones: IPHONE, ANDROID, IPAD, GALAXY TAB. • Supported resolution HDCVI: 4K, 6MP, 5MP, 4MP, 1080P@25fps, 720P@50fps, 720P@25fps. • Supported resolution AHD: 4K, 5MP, 4MP, 3MP, 1080P@25, 720P@25fps. • Supported resolution TVI: 4K, 5MP, 4MP, 3MP, 1080P@25, 720P@25fps. • Supported resolution: HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720; VGA: 1920 × 1080, 1280 × 1024, 1280 × 720. • Recording speed HDCVI/AHD/TVI: Main stream: all channels 4K(1fps-7fps); 6MP(1fps-10fps); 5MP(1fps-12fps); 4K-N, 4MP/ 3MP(1fps-15fps); 4M-N/ 1080P/ 720P/ 960H/ D1/ CIF (1fps-25fps), Additional stream: 960H(1~15fps); D1/ CIF(1~25fps). • Bit Rate (data flow rate) HDCVI 4K/AHD/TVI/CVBS 32Kbps ~ 6144Kbps for each channel, IP maximum data flow rate up to 128Mbps. • 'Motion stream' function - that is: when motion is triggered, it records at maximum resolution (e.g. max. frames per second), when there is no motion, it records at normal resolution (minimum frames per second) - this saves data flow and space. • Max HDCVI 4K/AHD/TV camera inputs 8. • Max analog inputs 8. • Max IP camera inputs 8+8=16. • Automatic search for IP cameras. • Supported IP cameras: Dahua, Arecont, Axis, Canon, Panasonic, Brickom, Vivotek, RTSP, Pelco, Surveon, Bosch, Samsung, Sony, ONVIF 16.12, CGI Conformant, etc. • Video inputs: 16 BNC HDCVI/AHD/TVI/CVBS (HDCI - High Definition Composite Video Interface) or analog inputs 960H. • 1 HDMI connector: 3840×2160, 1920×1080, 1280×1024,1280×720. • 1 VGA output: 1920×1080, 1280×1024, 1280×720. • Audio compression: G.711A, G.711U, PCM, 64 kbps/channel. • Audio input: 4 channels RCA, 8 BNC (coaxial). • Audio output: 1 channel RCA. • Audio input/output (for two-way talk). • Alarm input: 8 channels. • Alarm output: 3 channels. • HDD type: SATA. • Max. number of hard drives (HDD): 2. • Max. 1 HDD capacity up to: 16TB. • USB port: 2 pcs.: 1x USB 2.0 + 1x USB 3.0. • Recording copy: USB 2.0 / USB HDD / LAN. • 10/100/1000 Mb/s network socket (Ethernet -RJ45) for connecting to the Internet. • Network protocols: HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P, IP Search, (supports Dahua IP cameras, DVR, NVS, etc.). • P2P iCloud technology (IE): Does not require a static IP address, no need to open ports. • Remote alarm notification: E-mail (sends photo), FTP server. • Motion detection: with programmable areas and sensitivity for each channel. • Control options: LAN, computer mouse. • Recording interval: 1 ~ 120 min. (default: 60 min.), according to the preparation results: 1 ~ 30 seconds, after recording: 10 ~ 300 sec. • Recording modes: Manual, Scheduled (Regular (Continuous), MD (Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop. • Recording search: by date/time or events (motion detection, alarm). • Programmable recording schedule (time/date, motion detection, continuous, according to schedule). • Video split: Full screen or split into 6 parts, or when the camera detects motion, the image is projected across the entire window. • Screen division: 1/4/8/9/16. • Automatic video channel switching. • Playback functions: play, pause, stop, rewind, fast forward, slow forward, next file forward, repeat, previous camera, archive selection, Digital Zoom zoom: infinite. • Recording playback channels: 1/4/8/9 synchronous playback. • SNAPSHOT: this function takes a snapshot when an alarm occurs. • Masked camera option, camera lock option. • Color, brightness and contrast settings for each camera. • Other functions: Pre- and post-alarm recording, camera name setting. • Time synchronization: automatic time synchronization via NTP server. • Automatic summer/winter time adjustment. • System recovery after power failure. • RS-485 connector: (dome camera (PTZ) connection). • Power supply: DC12V/4A. • Power consumption: <10W (without HDD). • Humidity: 10~90%RH. • Operating temperature: -10°C ~ +55°C. • Dimensions: 1U, 375 mm × 289 mm × 53 mm. • Weight: 1.64 kg (without HDD).
