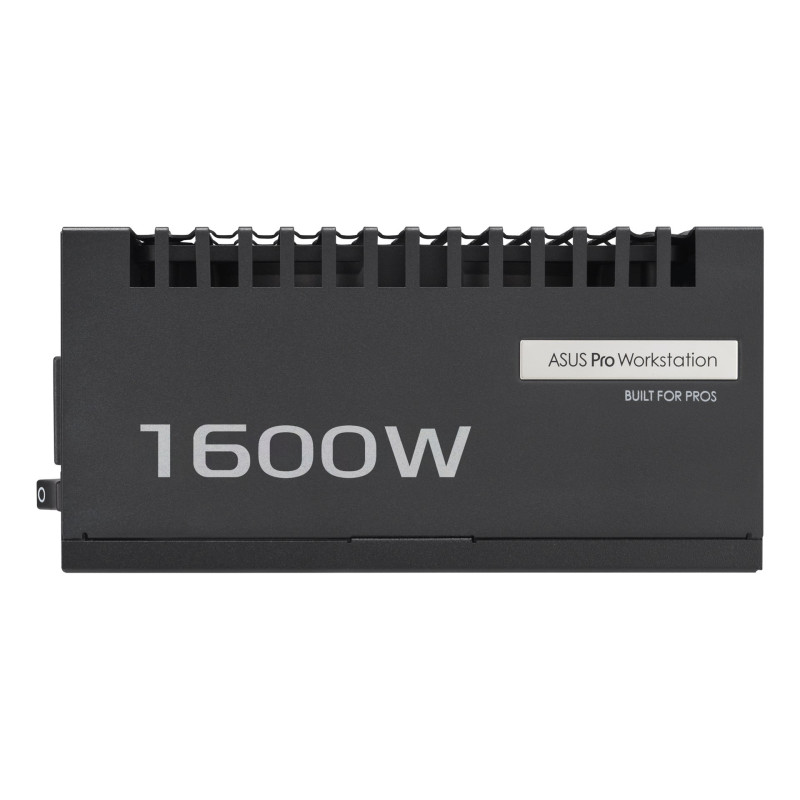

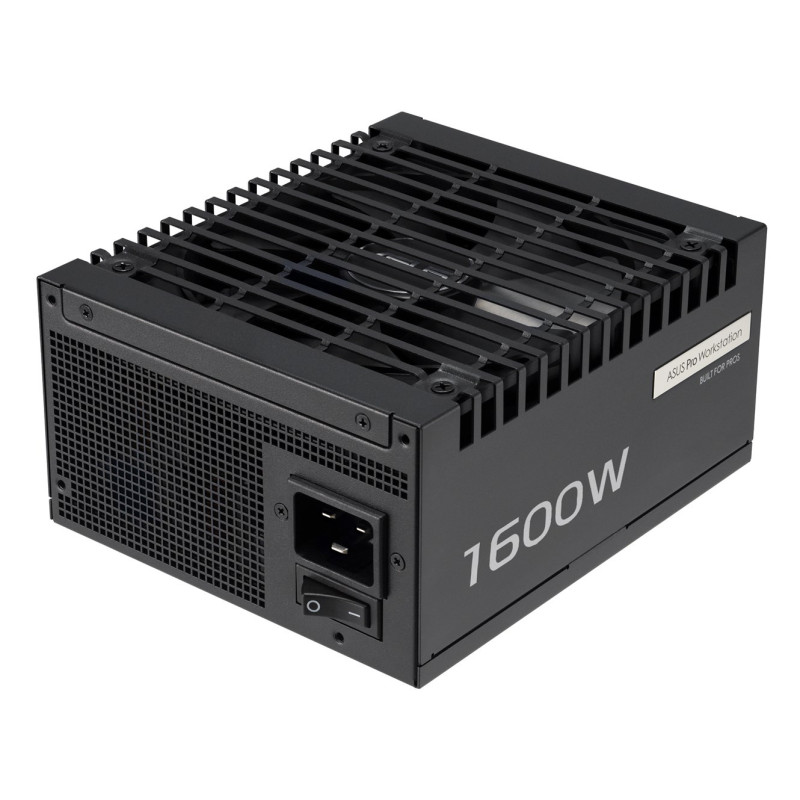

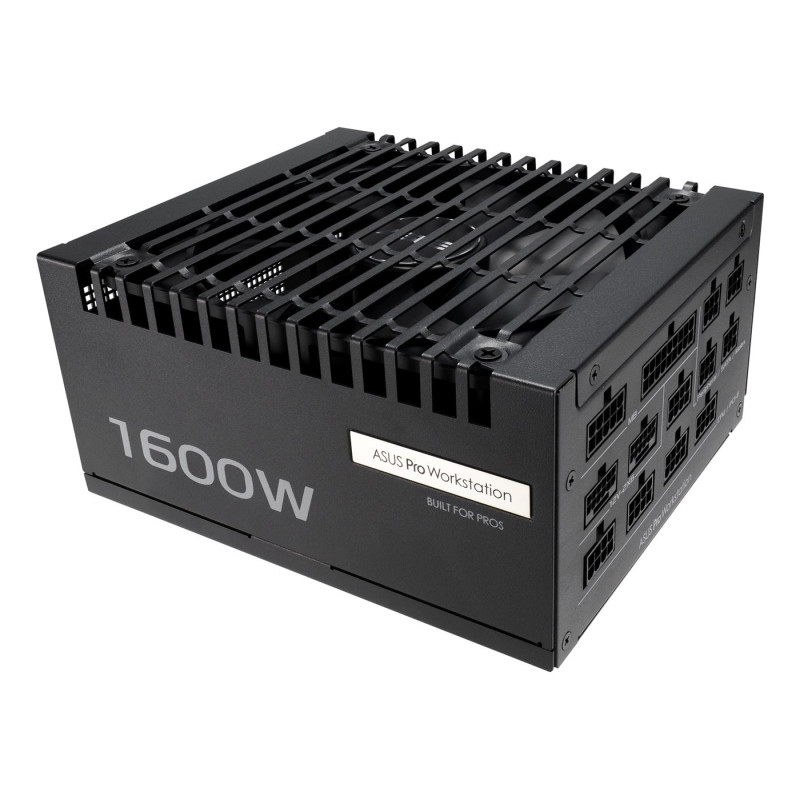

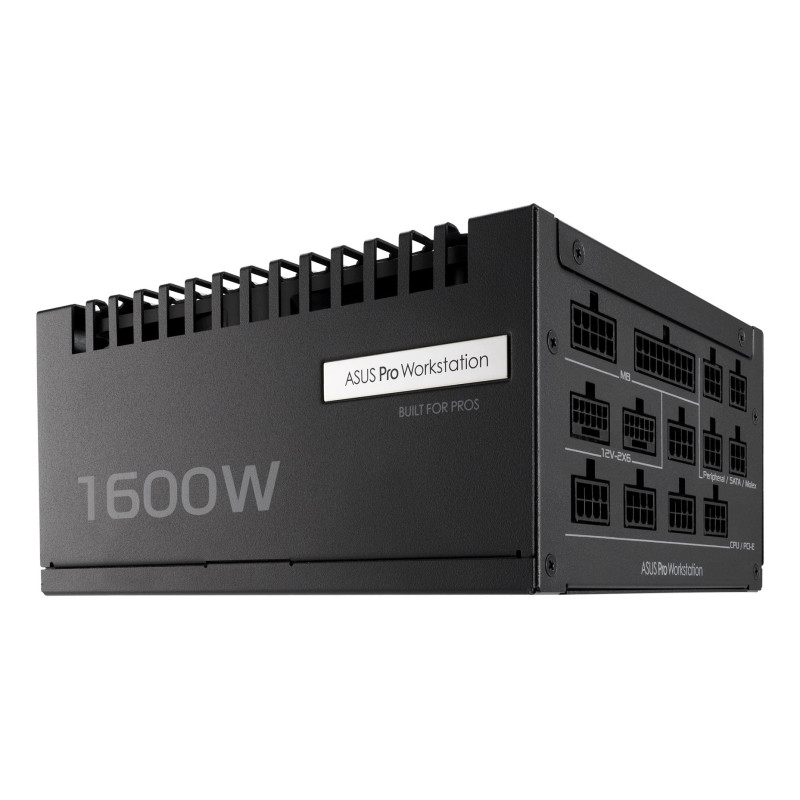

ASUS Pro WS 1600W Platinum power supply unit 20+4 pin ATX ATX Black

Product reference: 6-90YE00Z2-B0NA00

ASUS Pro WS 1600W Platinum power supply unit 20+4 pin ATX ATX Black

Product reference: 6-90YE00Z2-B0NA00

ASUS Pro WS 1600W Platinum power supply unit 20+4 pin ATX ATX Black

You have 3 products in compare list, please remove someone and try again

Add to compare

56166 €

Product in warehouse

Guarantee
120 month

Delivery from Europe in
6 - 11
business days

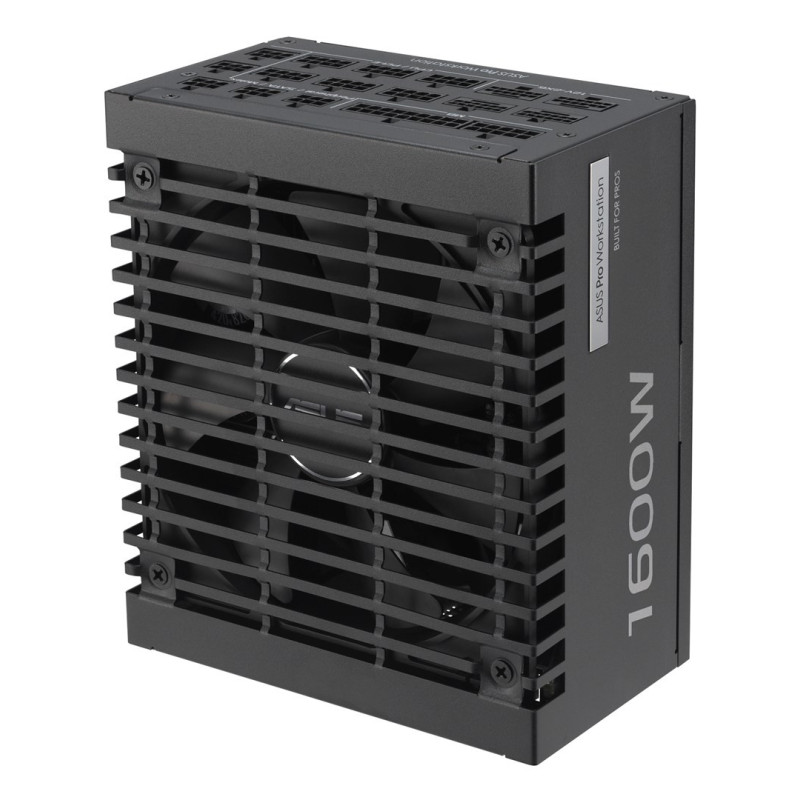

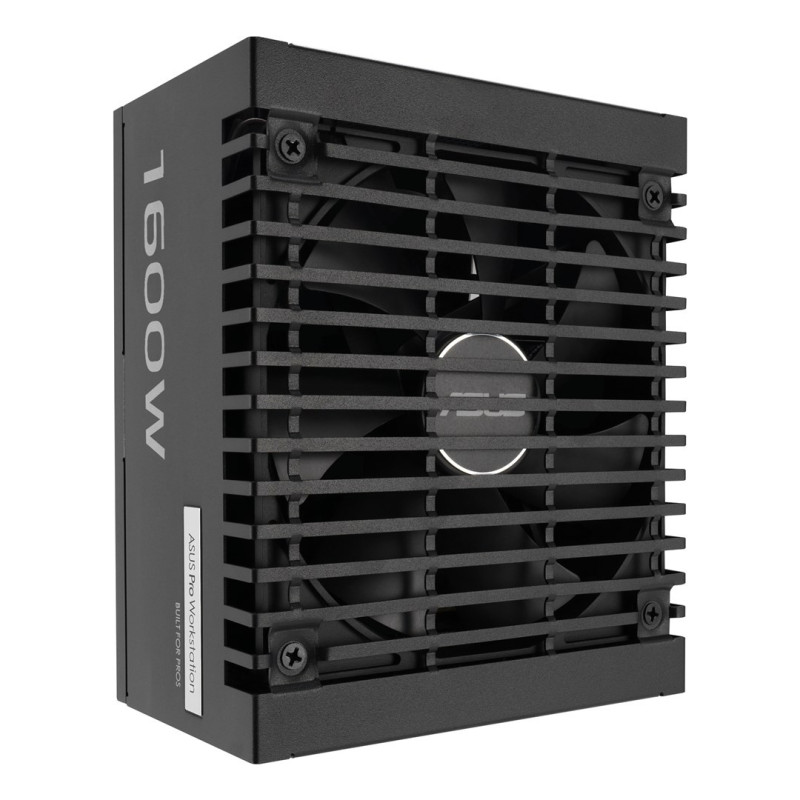

Cooling type	Active
Product colour	Black

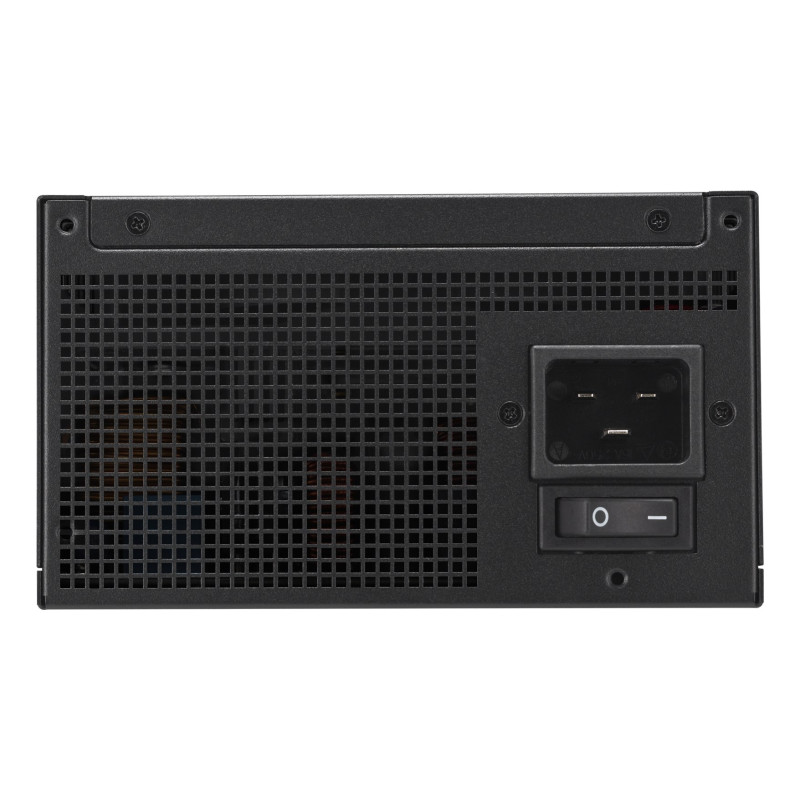

On/off switch	Yes
Max output current (+5Vsb)	3 A
Power protection features	Under voltage, Over current, Overheating, Over power, Short circuit, Over voltage
Combined power (+12V)	1600 W
Max output current (-12V)	0.8 A
Combined power (+3.3V)	130 W
Power Factor Correction (PFC) type	Active
Efficiency	92%
Combined power (+5V)	130 W
Max output current (+3.3V)	25 A
Total power	1600 W
Max output current (+12V)	133.3 A
Combined power (-12V)	9.6 W
Max output current (+5V)	25 A
AC input voltage	200 - 240 V
Combined power (+5Vsb)	15 W
Weight	2 kg
Depth	175 mm
Height	86 mm
Width	150 mm
Power supply unit (PSU) form factor	ATX
Bearing technology	Ball bearing
ATX version	3.1
80 PLUS certification	80 PLUS Platinum
Purpose	PC
Compliance certificates	RoHS

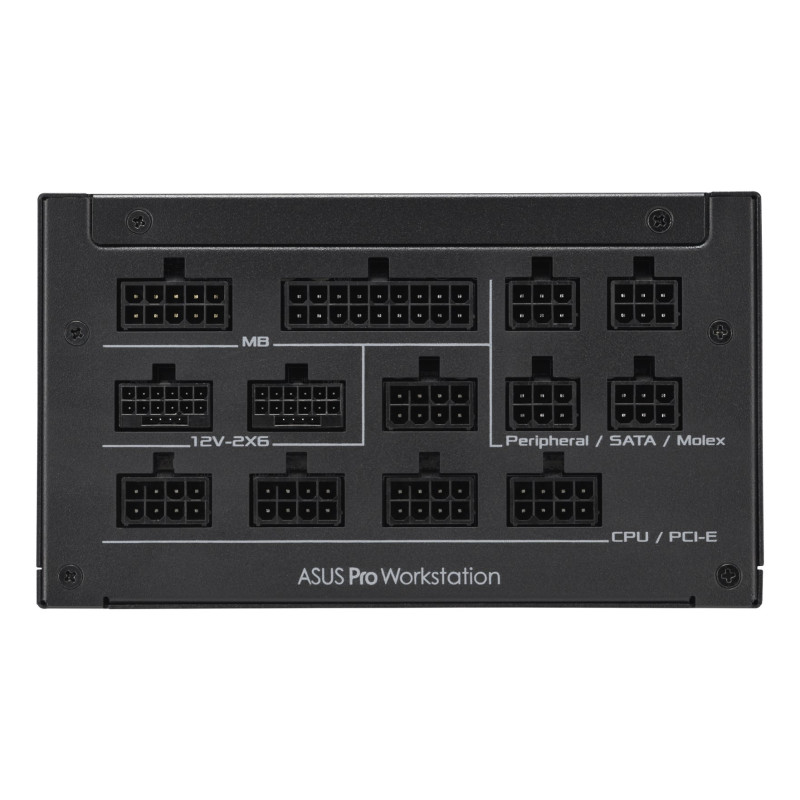

Peripheral (Molex) power connectors (4-pin)	3
PCI Express power cable length	75 cm
CPU power cable length	100 cm
ATX power connector (20+4 pin)	Yes
PCI Express power connectors (6+2 pin)	4
CPU power connector (4+4 pin)	Yes
SATA power cable length	120, 400 mm
Motherboard power connector	20+4 pin ATX
Cabling type	Fully-Modular
Number of SATA power connectors	9
Motherboard power cable length	61 cm
Peripheral (Molex) power cable length	400 mm, 150
PCI Express power connectors (16-pin)	2
Warranty period	10 year(s)
