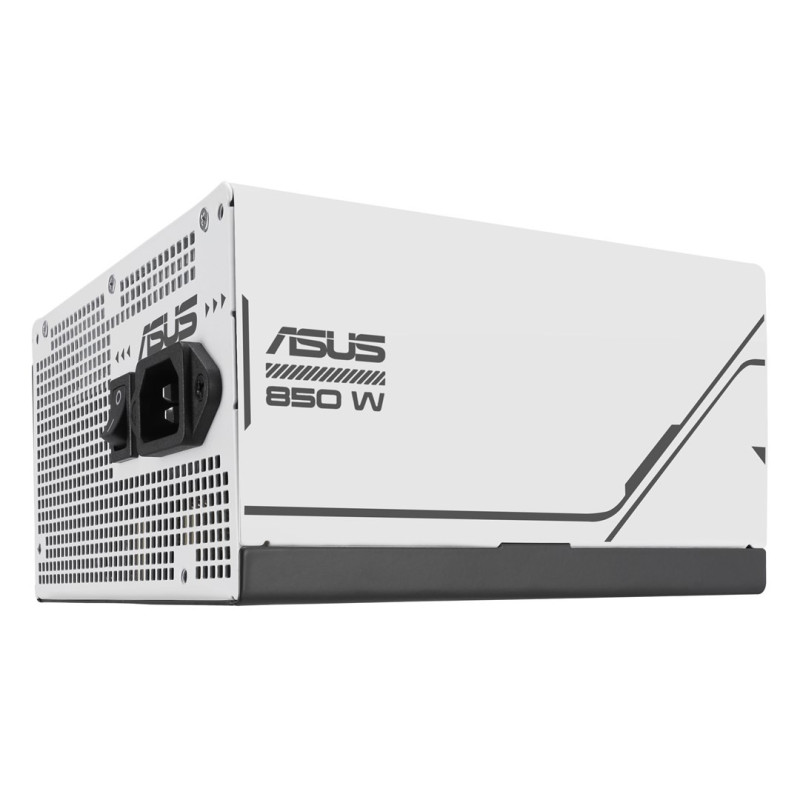

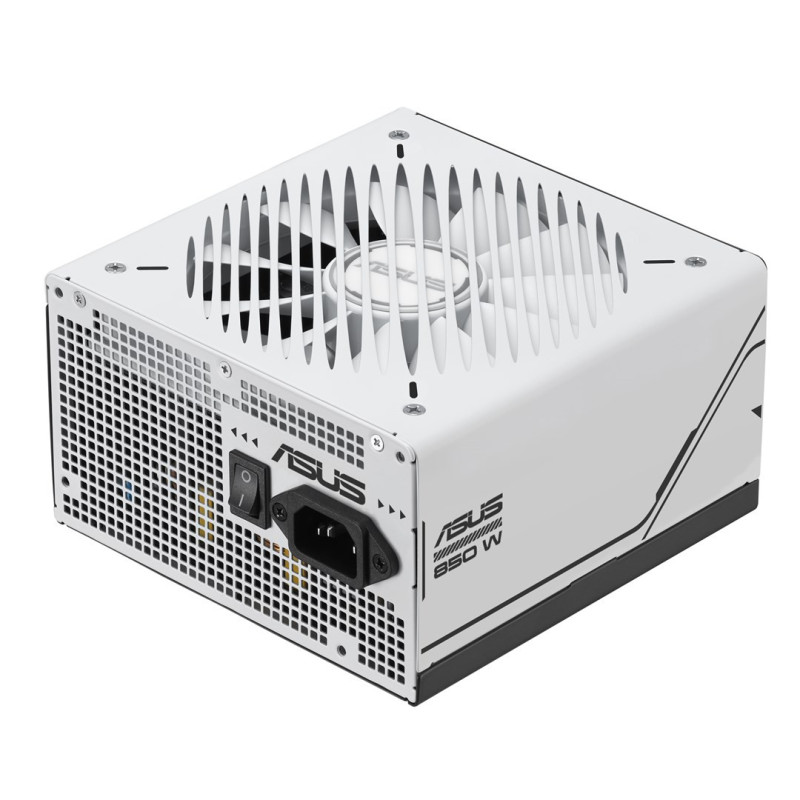

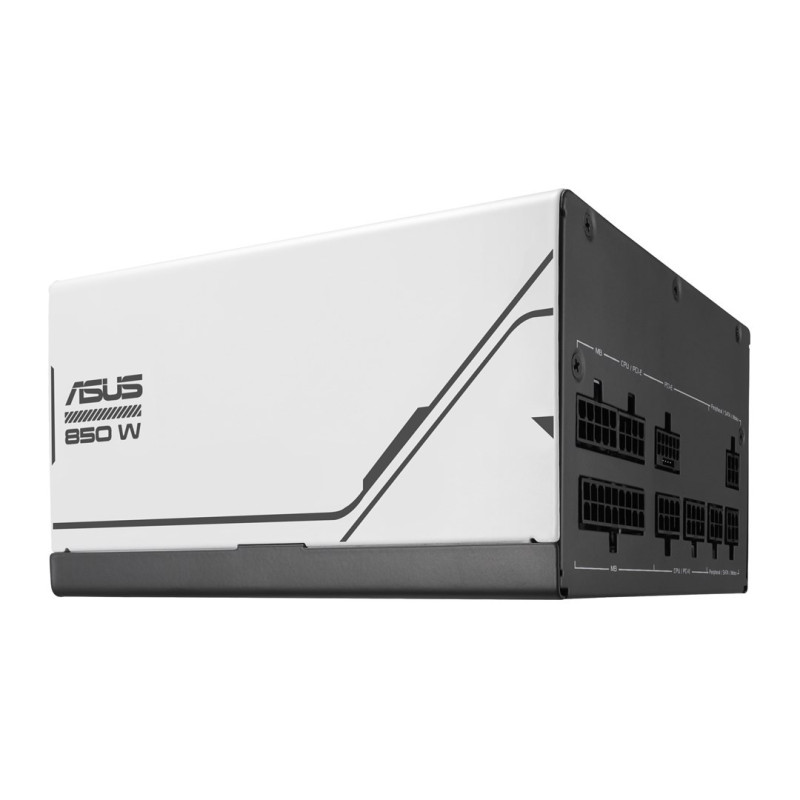

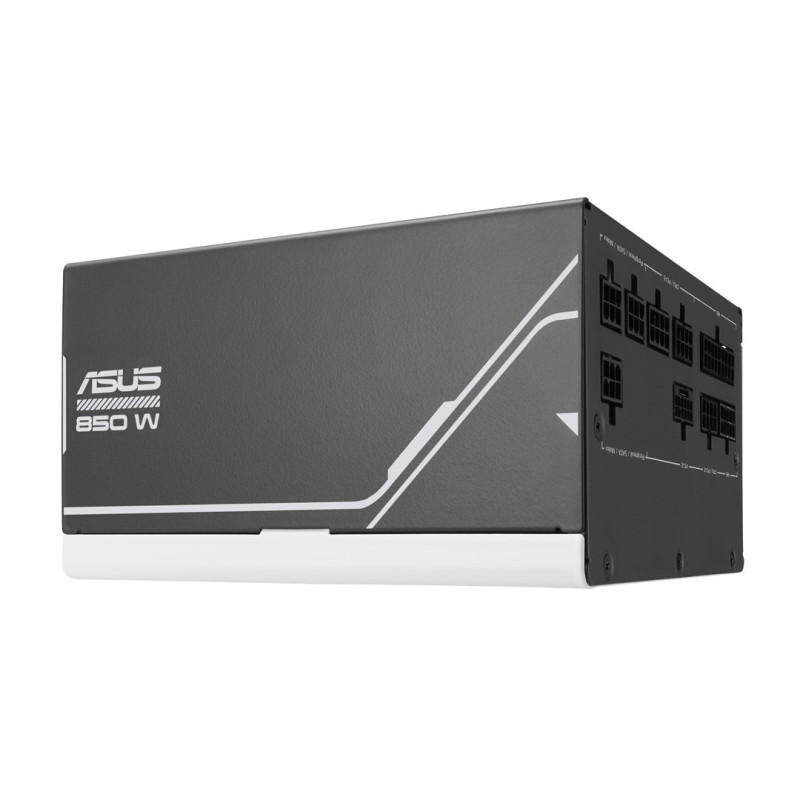

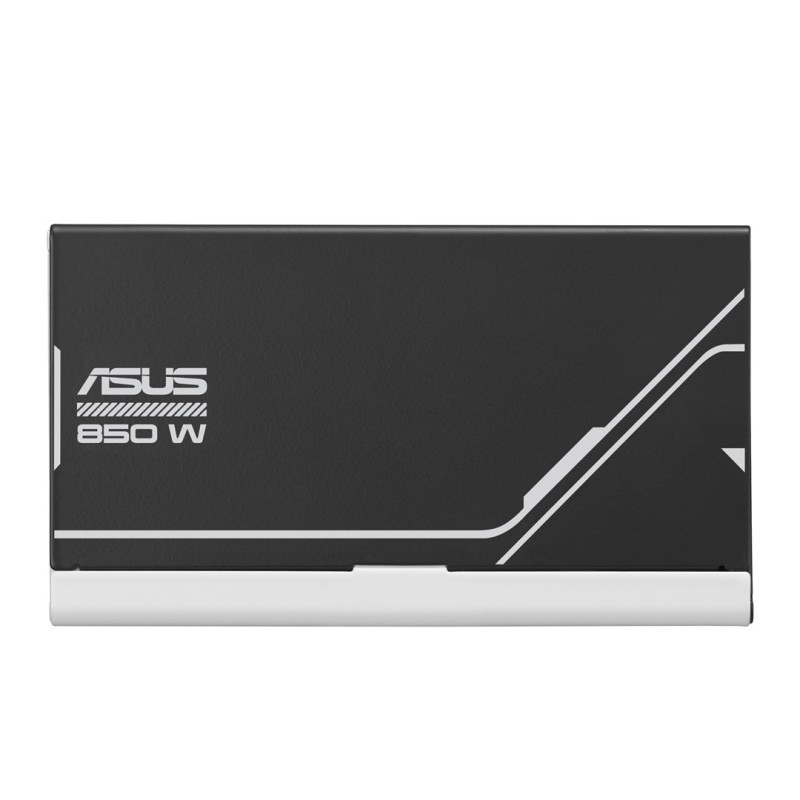

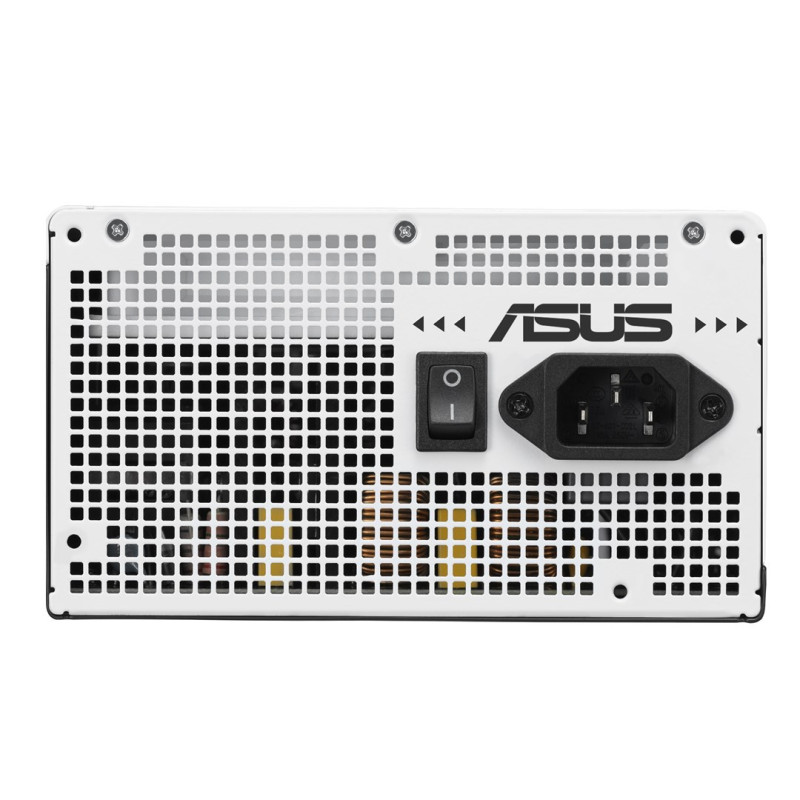

ASUS AP-850G power supply unit 850 W 20+4 pin ATX ATX Black, White
Product reference:
6-90YE00U0-B0NA00
ASUS AP-850G power supply unit 850 W 20+4 pin ATX ATX Black, White
ASUS AP-850G power supply unit 850 W 20+4 pin ATX ATX Black, White
Product reference:
6-90YE00U0-B0NA00
ASUS AP-850G power supply unit 850 W 20+4 pin ATX ATX Black, White
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
96 month
Delivery from Europe in
6 - 11
business days
| Cooling type | Active |
| Product colour | White, Black |
| Illumination | Yes |

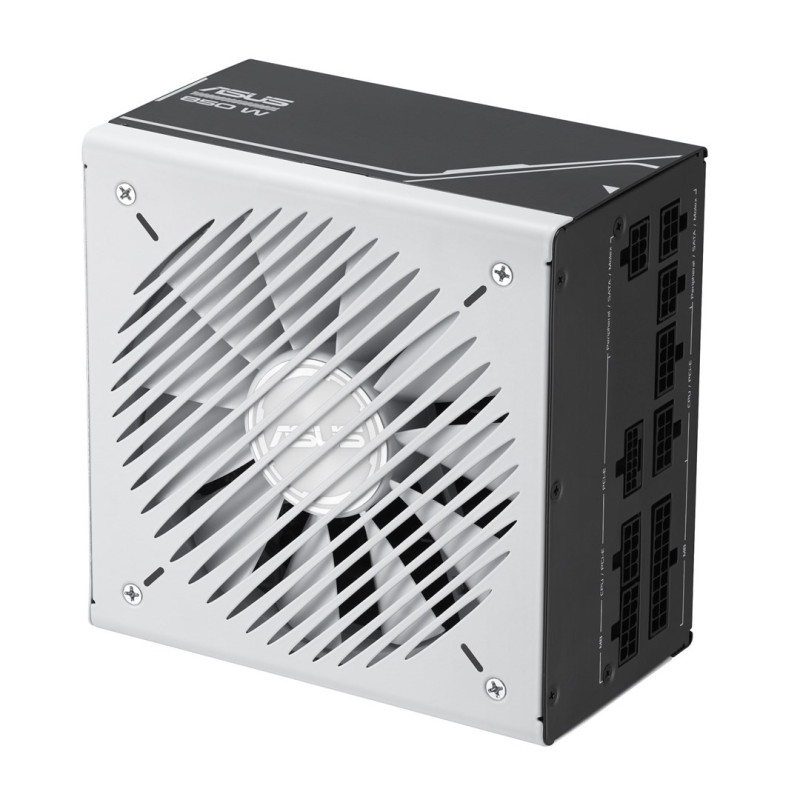

| Number of fans | 1 fan(s) |
| Fan location | Top |
| AC input voltage | 100 - 240 V |
| Max output current (+5V) | 20 A |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 846 W |
| Power protection features | Overheating, Under voltage, Over current, Over power, Short circuit, Over voltage |
| Total power | 850 W |
| Combined power (-12V) | 3.6 W |
| Power Factor Correction (PFC) type | Active |
| Max output current (+12V) | 70.5 A |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5V) | 110 W |
| Max output current (-12V) | 0.3 A |
| Width | 150 mm |
| Weight | 1.5 kg |
| Depth | 150 mm |
| Height | 86 mm |
| Power supply unit (PSU) form factor | ATX |
| Mean time between failures (MTBF) | 120000 h |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.0 |
| Purpose | PC |

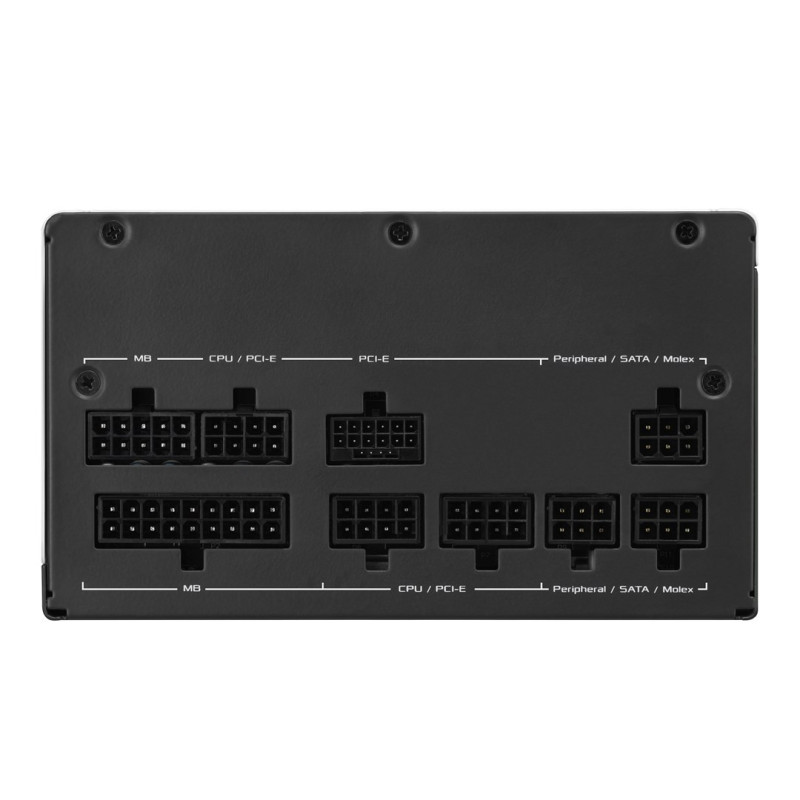

| Cables included | CPU, PCIe, SATA, Peripheral (Molex) |
| Compliance certificates | RoHS |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Cabling type | Fully-Modular |
| PCI Express power connectors (8-pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Peripheral (Molex) power cable length | 400 mm, 150 |
| SATA power cable length | 120, 400 mm |
| Number of SATA power connectors | 5 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| PCI Express power cable length | 67.5 cm |
