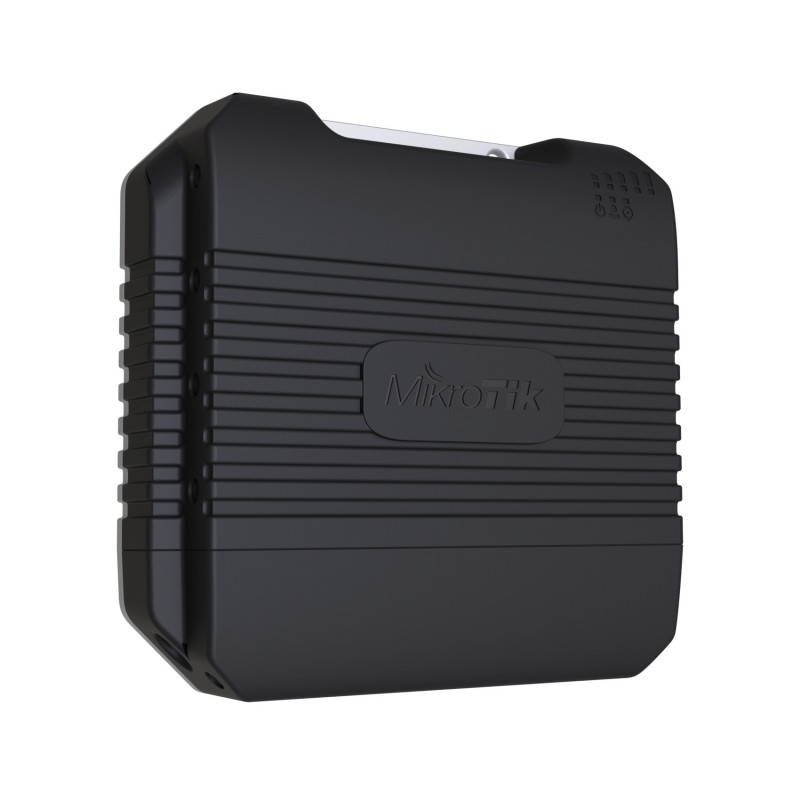

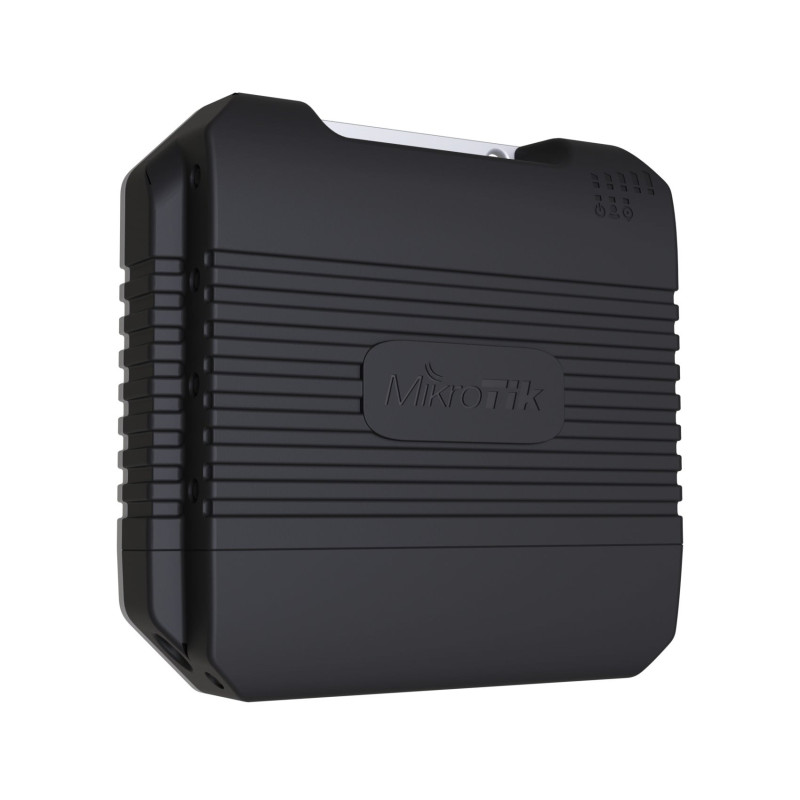

Wireless LAN access point MikroTik LtAP LTE6 kit (2.4GHz, 300Mbps, WiFi 4)
Product reference:
26-RLANMIKROTIKLTAPLTE6KIT
- Type: Wireless LAN access point with LTE
- Manufacturer: MikroTik
- Model: LtAP LTE6 kit
- Wi-Fi standard: Wi-Fi 4 (802.11b/g/n)
- Wi-Fi speed: up to 300 Mbps (2.4 GHz)
- Mobile connection: 4G LTE CAT6 modem
- LTE speed: up to 300 Mbps download
- Processor: 880 MHz
- RAM: 128 MB RAM
- Internal memory: 16 MB Flash
- Ethernet: 1 × Gigabit Ethernet
- SIM slots: 3 × Mini SIM
- Additional slots: 2 × miniPCIe
- GPS: Integrated
- Connectors: USB, serial port
- Power supply: 12-30 V DC, PoE-in, DC jack, car power supply
- Maximum power: 24 W
- Protection class: IP54
- Application: For transportation, mobile and outdoor network systems
Wireless LAN access point MikroTik LtAP LTE6 kit (2.4GHz, 300Mbps, WiFi 4)
Product reference:
26-RLANMIKROTIKLTAPLTE6KIT
- Type: Wireless LAN access point with LTE
- Manufacturer: MikroTik
- Model: LtAP LTE6 kit
- Wi-Fi standard: Wi-Fi 4 (802.11b/g/n)
- Wi-Fi speed: up to 300 Mbps (2.4 GHz)
- Mobile connection: 4G LTE CAT6 modem
- LTE speed: up to 300 Mbps download
- Processor: 880 MHz
- RAM: 128 MB RAM
- Internal memory: 16 MB Flash
- Ethernet: 1 × Gigabit Ethernet
- SIM slots: 3 × Mini SIM
- Additional slots: 2 × miniPCIe
- GPS: Integrated
- Connectors: USB, serial port
- Power supply: 12-30 V DC, PoE-in, DC jack, car power supply
- Maximum power: 24 W
- Protection class: IP54
- Application: For transportation, mobile and outdoor network systems
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
2 - 6
business days
- Specifications
- Product code RBLtAP-2HnDR11e-LTE6
- Architecture MMIPS
- CPU MT7621A
- Number of CPU cores 2
- CPU nominal frequency value 880MHz
- Number of CPU threads 4
- RouterOS license 4
- Operating system RouterOS
- RAM size 128MB
- Memory size 16MB
- Memory type FLASH
- MTBF Approx. 200'000 hours at 25C
- Tested ambient temperature -30°C to 70°C
- Power supply
- Number of DC inputs 3 (DC connector, PoE-IN, Automotive)
- DC link input voltage 12-30V
- Automotive input voltage 12-27 V
- Maximum power consumption 24W
- Maximum power consumption without accessories 12W
- PoE in Passive PoE
- Cooling type Pacific
- PoE input voltage 12-30V
- Mobile
- Category 2G Class12
- 2G bands 2 (1900MHz) 3 (1800MHz) 5 (850MHz) 8 (900MHz)
- 3G category R7 (21Mbps download, 5.76Mbps upload) / R8 (42.2Mbps download, 5.76Mbps upload)
- 3G bands 1 (2100MHz) 2 (1900MHz) 5 (850MHz) 8 (900MHz)
- LTE category 6 (300Mbit/s download, 50Mbit/s upload)
- LTE FDD bands 1 (2100MHz) 2 (1900MHz) 3 (1800MHz) 7 (2600MHz) 8 (900MHz) 20 (800MHz) 5 (850MHz) 12 (700MHz) 17 (700MHz) 25 (1900MHz) 26 (850MHz)
- LTE TDD bands 38 (2600MHz) 40 (2300MHz) 39 (1900MHz) 41n (2500MHz)
- TAC 35666210
- Wireless specifications
- Wireless 2.4 GHz Maximum data transfer rate 300 Mbps
- Wireless 2.4 GHz Number of links 2
- Wireless 2.4 GHz standards 802.11b/g/n
- Antenna gain dBi 2.4 GHz 2.5
- Wireless 2.4 GHz chip AR9382
- Wireless 2.4 GHz generation Wi-Fi 4
- Ethernet
- 10/100/1000 Ethernet ports 1
- Accessories
- Number of SIM card slots 3 Modem (Mini SIM)
- MiniPCI-e slots 2
- Serial console port RS232
- Number of USB ports 1
- USB power reset Yes
- USB port type USB Type-A
- Maximum USB current (A) 1
- Other
- PCB temperature monitoring Yes
- Voltage monitoring Yes
- GNSS standards GPS
- Certificates and approvals
- Certification CE, FCC, IC, E-MARK, EAC, ROHS
- IP IP54
| Weight | 0.77 kg |
