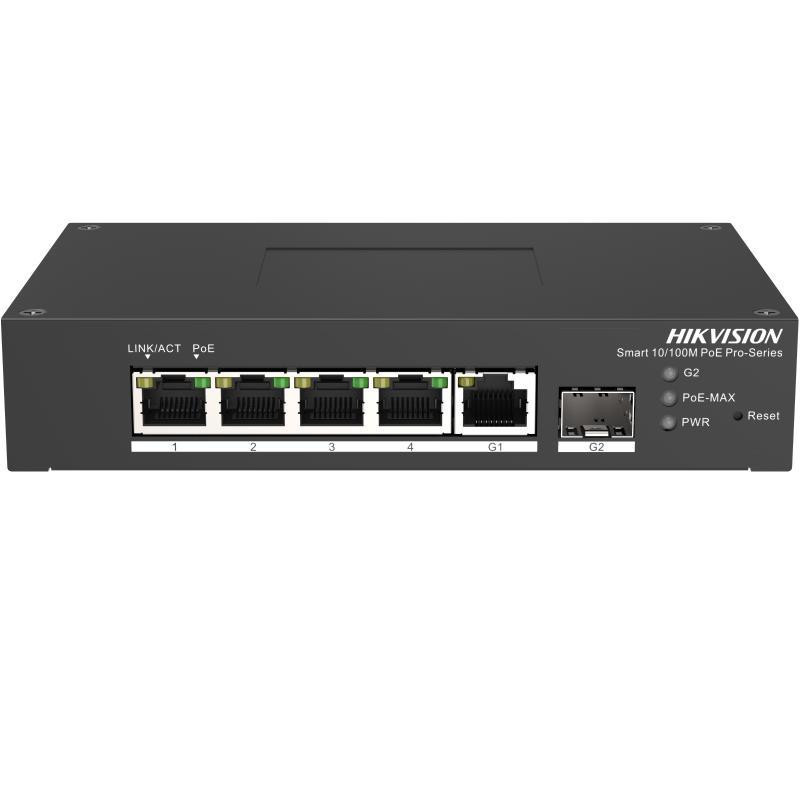

5-port, 4 PoE port switch Hik-vision DS-3T1306P-SI / HS
Product reference: 26-6931847175498
  • Visualized topology management.
  • Network health monitor.
  • Layer 2 functions: PoE monitor, STP/RSTP, VLAN, SNMP, QoS, ERPS, etc.
  • -30°C to 65°C wide temperature range in harsh environments.
5-port, 4 PoE port switch Hik-vision DS-3T1306P-SI / HS

5-port, 4 PoE port switch Hik-vision DS-3T1306P-SI / HS

Product reference: 26-6931847175498
  • Visualized topology management.
  • Network health monitor.
  • Layer 2 functions: PoE monitor, STP/RSTP, VLAN, SNMP, QoS, ERPS, etc.
  • -30°C to 65°C wide temperature range in harsh environments.
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
11563 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Network settings
  • Port 4 × 10/100 Mbps PoE port, 1 × 1 Gigabit RJ45 port, 1 × 1 Gigabit fiber optical port
  • Port type RJ45 port, full duplex, MDIMDI-X adaptive
  • Standard IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
  • Transmission mode Store-and-forward switching
  • Working mode Standard mode (default)
  • MAC address table 2 K
  • Switching capacity 4.8 Gbps
  • Packet forwarding speed 3.57 Mpps
  • Internal cache memory 1 Mbit
  • PoE
  • PoE standard IEEE 802.3af, IEEE 802.3at
  • PoE power connector

    End span: 1/2(-), 3/6(+)

    Mid-span: 4/5(+), 7/8(-)

    8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE port PoE: Ports 1 to 4
  • Max PoE port power 30W
  • PoE available power 60W
  • Software features
  • Device maintenance Support remote upgrade, default parameter restoration, logs viewing, basic network parameter configuration, import and export configuration, and time synchronization.
  • Port configuration Support port rate configuration, flow control, and ports enabling.
  • Long range mode Ports 1 to 4: up to 300 m
  • PoE configuration

    PoE watchdog: Ports 1 to 4 auto detect and restart the cameras that do not respond.

    PoE enabling: supported
  • Port speed limit Rate-limiting for ingress and egress ports
  • Storm control Storm control of unknown unicast, multicast, and broadcast
  • Port mapping Supported
  • Port insulation Ports in an isolation group cannot communicate with each other.
  • QoS WRR and SP scheduling and port priority
  • VLANs 4094 VLANs
  • STP STP and RSTP
  • SNMP SNMPv1 and SNMPv2c supported for obtaining node information of the system and interfaces
  • LLDP LLDP supported for port configuration, global configuration, and neighbor discovery
  • DHCP Supported
  • ERPS Supported
  • Home
  • Frame Metal material
  • Weight without packaging 0.4 kg (0.8 lb)
  • Weight with packaging 1.0 kg (2.2 lb)
  • Size 158.00 mm × 101.20 mm × 31.60 mm (6.20'' × 3.90'' × 1.20'')
  • Working conditions humidity -30 °C to 65 °C (-22 °F to 149 °F)
  • Storage conditions temperature -40 °C to 85 °C (-40 °F to 185 °F)
  • Working conditions humidity 5% to 95% (no condensation)
  • Relative humidity 5% to 95% (no condensation)
  • Power supply Power adapter: 48 VDC (working temperature: 0°C to 45°C); Grounding terminal: 48-57 VDC (working temperature: -30°C to 65°C)
  • Max. power consumption 65W
  • Power consumption in sleep mode < 5W
  • Approvals
  • EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
  • Security UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
  • Chemical analysis CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)

Weight0.807 kg
