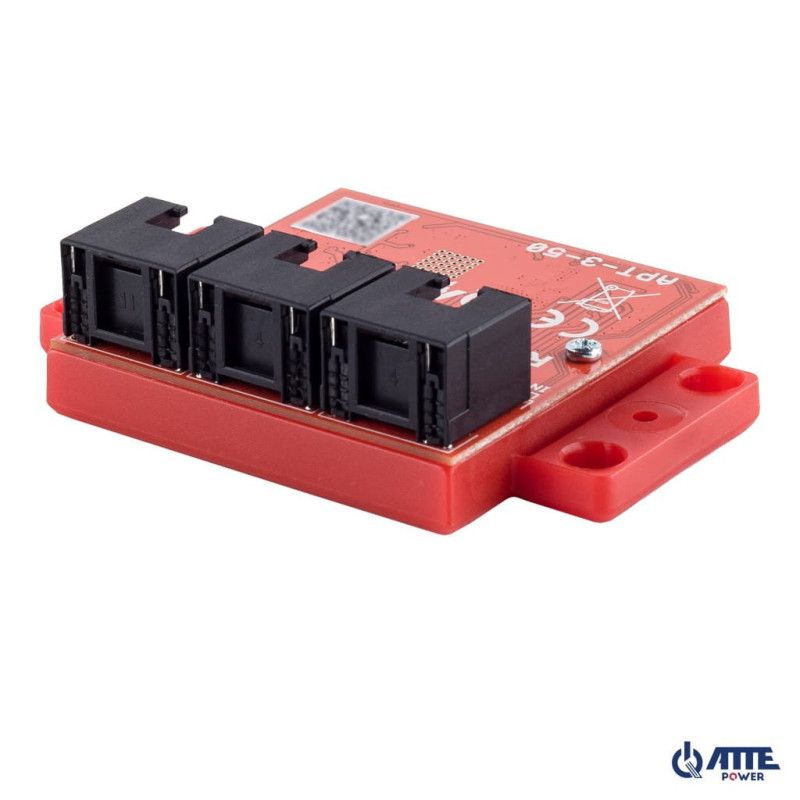

3-port switch ATTE APT-3-50
Product reference: 26-ATTEAPT350
  • Type: Switch / PoE extender
  • Model: ATTE APT-3-50
  • Ports: 3 (LAN1 input, LAN2-3 outputs)
  • PoE input: LAN1 - 802.3af/at, passive PoE
  • PoE output: LAN2-3 - 802.3af/at
  • Speed: 1000 Mbps (Gigabit)
  • Voltage: 58V
  • Power consumption: 0.3 W
  • Surge protection
  • IP class: IP20
  • Operating temperature: -25...+65 °C
3-port switch ATTE APT-3-50

3-port switch ATTE APT-3-50

Product reference: 26-ATTEAPT350
  • Type: Switch / PoE extender
  • Model: ATTE APT-3-50
  • Ports: 3 (LAN1 input, LAN2-3 outputs)
  • PoE input: LAN1 - 802.3af/at, passive PoE
  • PoE output: LAN2-3 - 802.3af/at
  • Speed: 1000 Mbps (Gigabit)
  • Voltage: 58V
  • Power consumption: 0.3 W
  • Surge protection
  • IP class: IP20
  • Operating temperature: -25...+65 °C
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
4827 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
2 - 6
business days

Your message has been successfully sent!
Fill in the required fields*
  • Specifications
  • PoE IN: LAN 1 PoE 802.3af/at, PoE Passive
  • PoE OUT: LAN 2 ... LAN 3 PoE 802.3af/at
  • LAN 1000Mbps ports: LAN 1 ... LAN 3
  • LAN + PoE OUT 1000Mbps ports: LAN 2 ... LAN 3
  • Input voltage: 44 ... 58 V
  • Output PoE voltage: Vout = Vin
  • Energy consumption: 0.3W
  • Output power control: Auto-negotiation
  • Surge protection: LAN 1 ... LAN 3
  • Overload protection: LAN 2 ... LAN 3 Overload protection up to 0.7 A
  • Energy indication: LAN 1 (yellow) - PoE power IN
  • PoE indication: LAN 2 ... LAN 3 (yellow) - PoE power OUT
  • Transmission indication: LAN 1 ... LAN 3 (green) - link and data transmission
  • Temperature range: -25°C ... +65°C
  • Dimensions: 51 x 51 (73) x 21 mm
  • Weight: 0.026 kg
  • IP class: IP20
  • Body construction: Universal mounting base
  • Assembly: Mounting studs, TH35 rail with additional bracket, can be screwed to flat surface
  • EAN code: 5902143691341
  • PKWiU code: 26.30.23.0
  • HS code: 8517 62
  • CN2020 code: 8517 62 00
