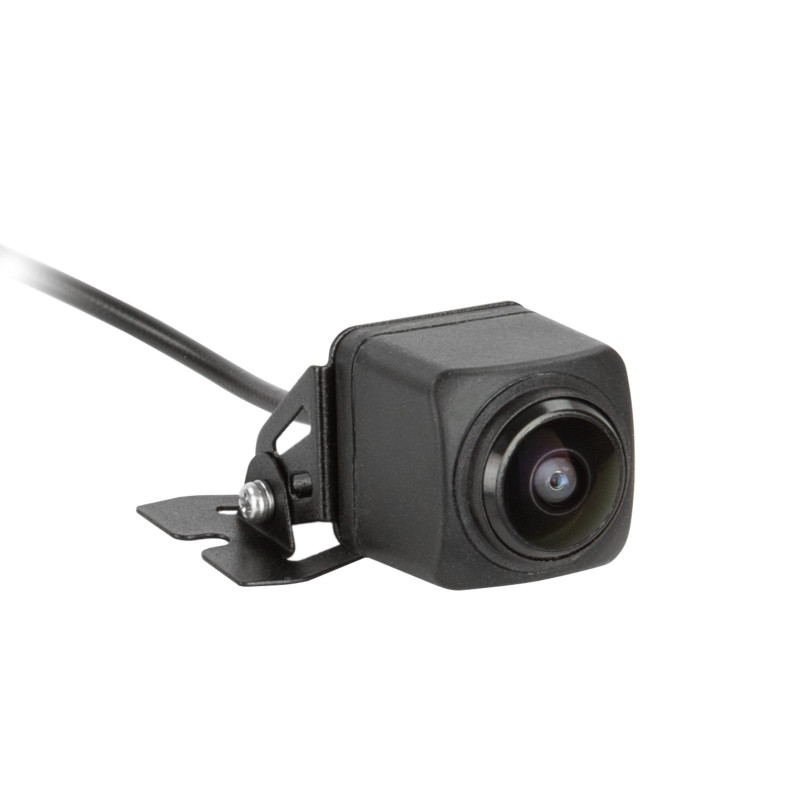

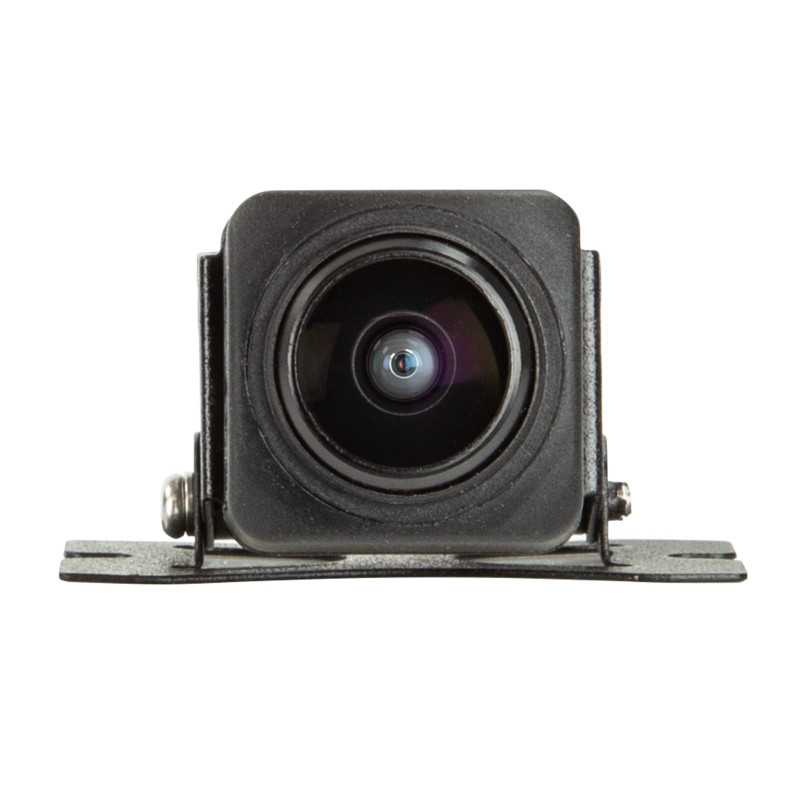

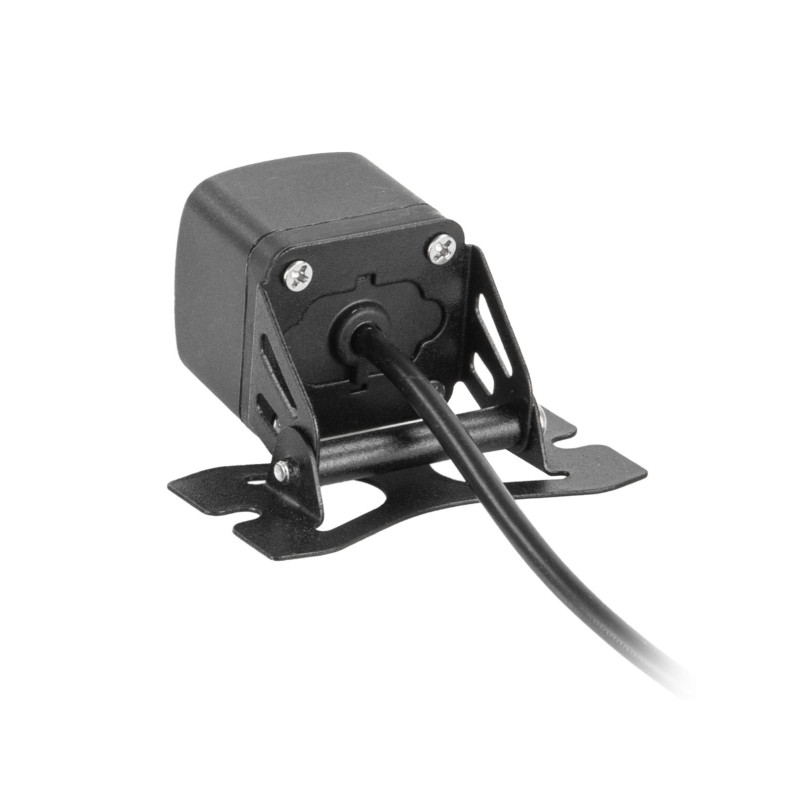

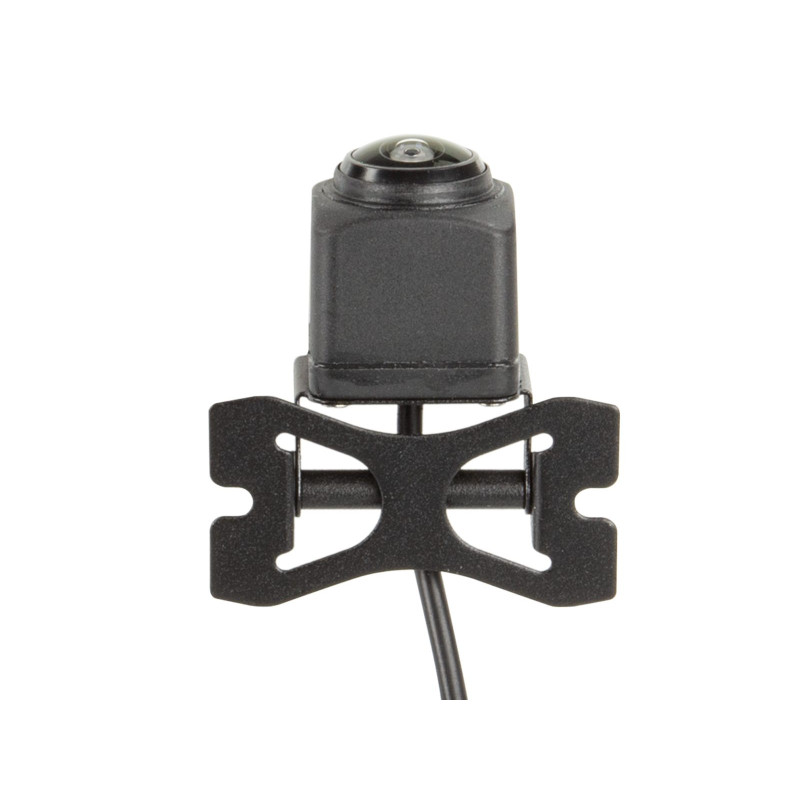

Reversing camera / front or rear camera NTSC 720 x 480 square design, mounting: substructure. Viewing angle 192°

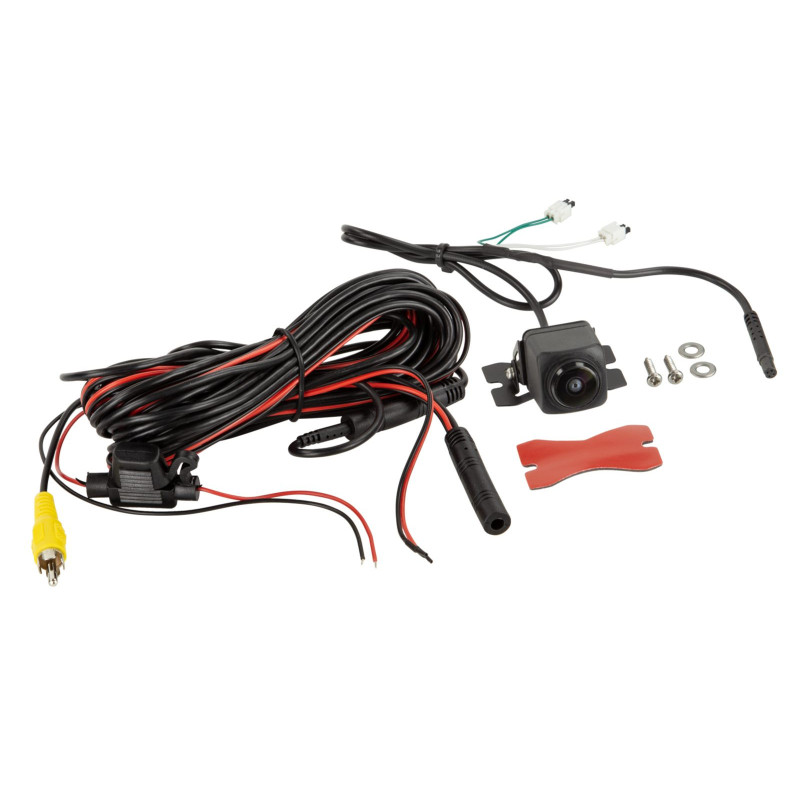

If you want to improve the safety of yourself, your passengers, and other road users, a universal rearview camera with lines can help. This professional-grade equipment is also available with additional night vision and rearview mirrors. Good quality equipment at a great price Our universal rearview camera fits a wide range of vehicles. Installation is easy and hassle-free. The product is made of plastic with an additional metal bracket. This model's horizontal viewing angle is 180 degrees. This universal rearview camera allows you to safely reverse in yards, parking lots, or tight alleys. It's useful for small passenger cars and slightly larger commercial vehicles. Universal rear view camera - you can trust it Our universal rearview camera operates smoothly, even in temperatures ranging from -30°C to 80°C. This makes it ideal for use in both hot and cold weather, year-round. The kit includes the cables needed to install the camera. Universal 192° front and rear camera.

Under-Mount/Mount camera with a 192° viewing angle is a universal solution for vehicles requiring both front and rear mounting.

Advantages of the camera

• Universal use - can work as a reversing camera or front camera.

• Wide viewing angle 192° - provides a very wide field of view and improves maneuvering safety.

• Flexible assembly - possibility of installation under a bodywork element or on its surface.

Important information

• Cameras ACV are adapted to continuous operation (can be powered and used for a long time without interruption, e.g. as a front camera while driving).

Technical specifications - 192° front/reversing camera Design and installation

• Form: rectangular

• Mounting type: under-mount / surface-mount

• Case: plastic + adjustable metal handle

• Color: black

Viewing angle and functions

• Viewing angle:

  • diagonal: 192°

  • horizontal: 194°

  • vertical: 142° (+5°)

• Parking guide lines: yes (switched on with jumper)

• Mirroring function: yes (switched on with jumper)

Electrical parameters

• Operating voltage: +12V DC

• Power supply: +12V DC

• Power consumption: 200 mA

Connection

• Red: +12V after ignition / stabilized / fuse protected
