Radio frame 9 inches Mercedes Sprinter, Volkswagen Crafter I 2006-2018 381191-91-1

Product description

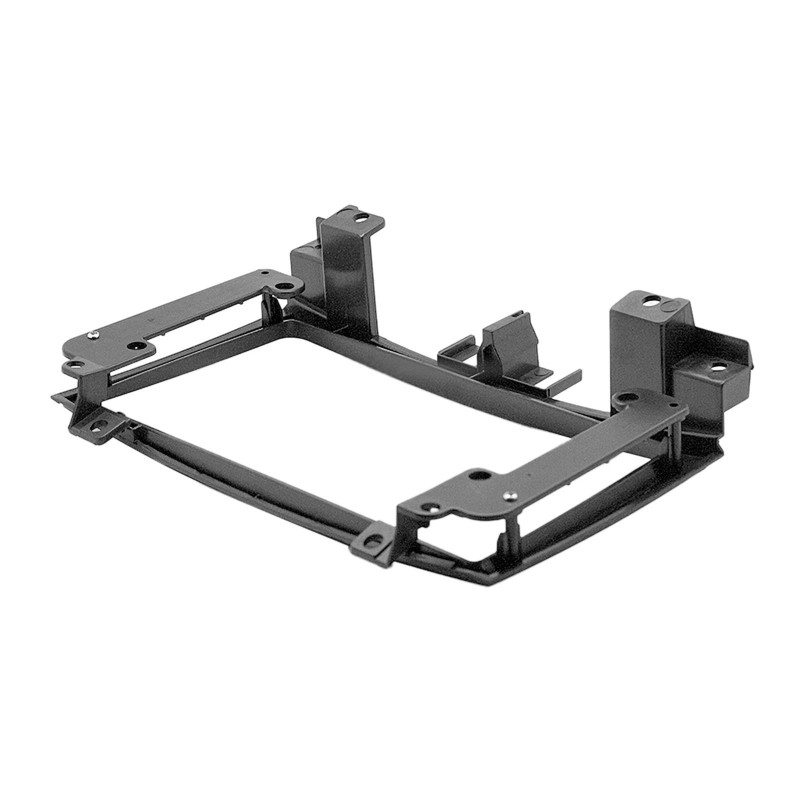

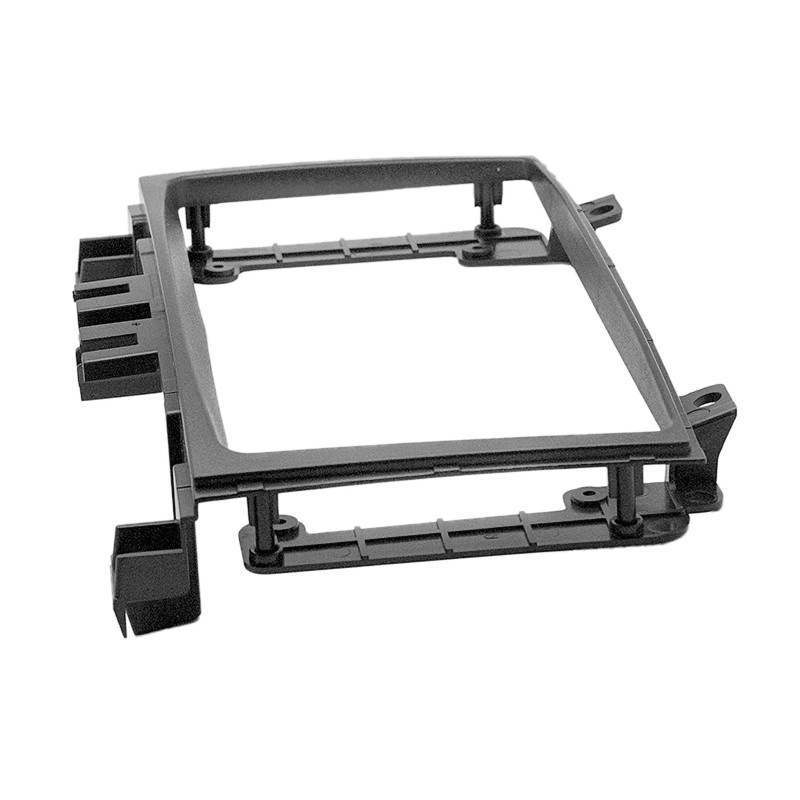

The 9-inch mounting frame for Mercedes-Benz Sprinter and Volkswagen Crafter vans allows you to replace the factory radio or navigation system with a modern 9-inch multimedia device.

In many vehicles, manufacturers use factory audio units that are designed to fit the vehicle's interior. When installing an aftermarket radio, a suitable mounting frame is essential, which will adjust the installation opening to the standard device size and provide an aesthetically pleasing finish to the dashboard.

The frame enables stable mounting of the radio and harmonious integration with the vehicle's dashboard.

Advantages of the radio frame

• Fits the vehicle's center console
• Allows installation of an aftermarket 9″ radio
• Aesthetically pleasing interior finish
• Solid construction made of durable materials
• Makes it easier to modernize your multimedia system

Vehicle compatibility

• Mercedes-Benz Sprinter (W906) 04/2006 - 08/2013
• Mercedes-Benz Sprinter (W906) 08/2013 - 05/2018
• Volkswagen Crafter I (2EC/2EK/2F) 03/2006 - 07/2011
• Volkswagen Crafter I (2EC/2EK/2F) 07/2011 - 11/2016

Technical data

• Radio size: 9 inches
• Color: black
• Material: high-quality plastic

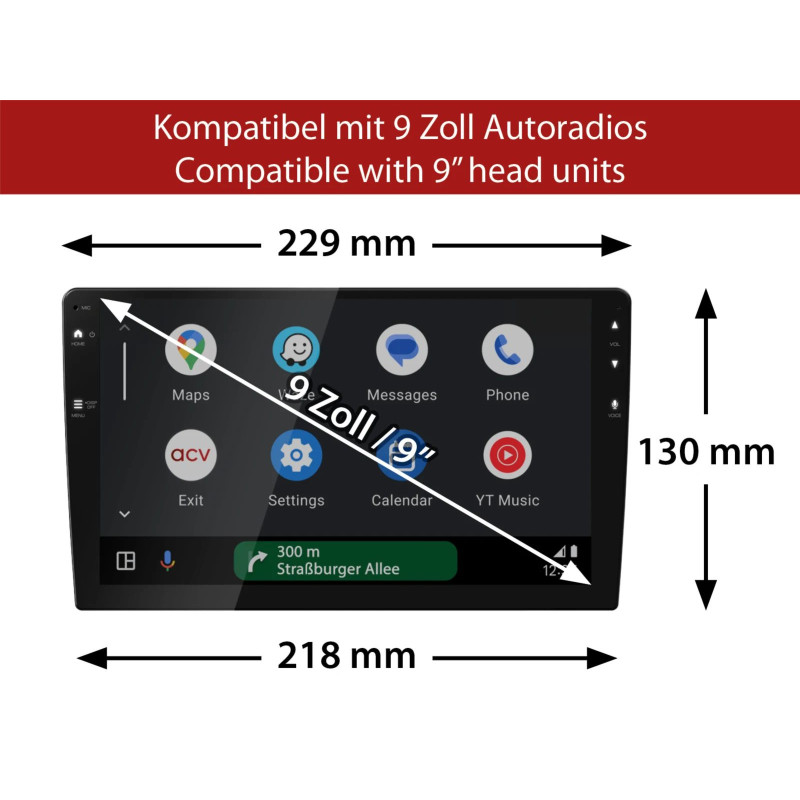

• Mounting hole dimensions: 230/220 × 130 mm

Additional adapters and interfaces

Depending on the vehicle's equipment version, additional installation components may be required:

• radio connection cables
• antenna adapter
• steering wheel control adapter
• reversing camera adapter
• active system adapter

Installation

• Installation of the device with individually selected accessories
• Mounting the display with the appropriate installation elements

Application

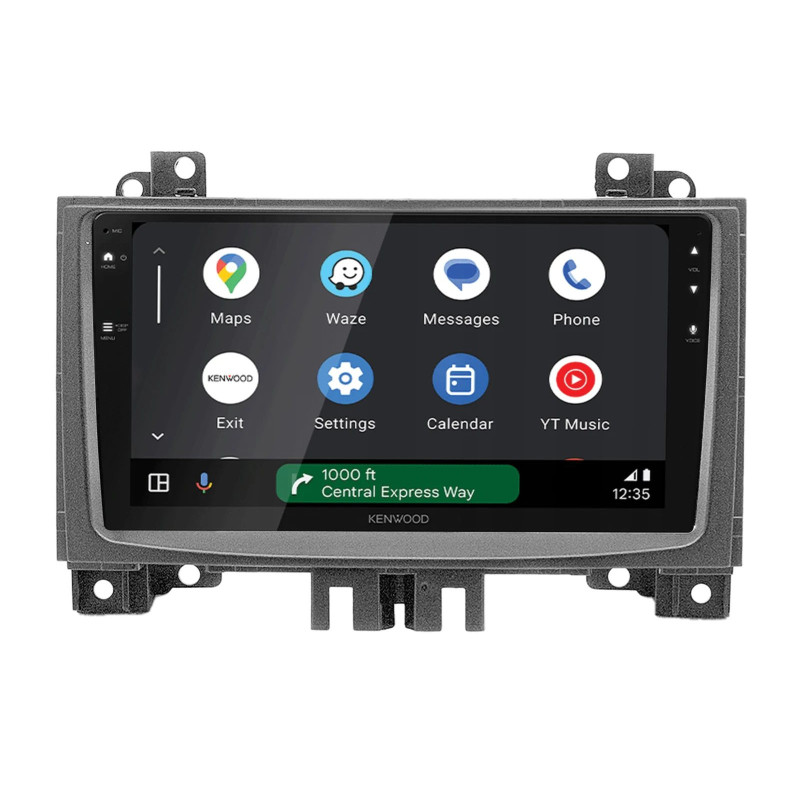

The frame enables the installation of modern 9″ multimedia stations with Android, GPS navigation, Bluetooth, reversing camera, Apple CarPlay and Android Auto in Mercedes-Benz Sprinter W906 and Volkswagen Crafter I vehicles.
