Smart home device - Shelly Pro 2PM 2-channel relay WiFi / LAN 16A
Product reference:
14-3800235268032
Shelly Pro 2PM is a 2-channel DIN rail relay that allows you to control devices with a maximum load of 16 A per channel, and also has built-in energy monitoring functions. It supports WiFi, LAN and Bluetooth connections, making it perfect for home and building automation.
Smart home device - Shelly Pro 2PM 2-channel relay WiFi / LAN 16A
Product reference:
14-3800235268032
Shelly Pro 2PM is a 2-channel DIN rail relay that allows you to control devices with a maximum load of 16 A per channel, and also has built-in energy monitoring functions. It supports WiFi, LAN and Bluetooth connections, making it perfect for home and building automation.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

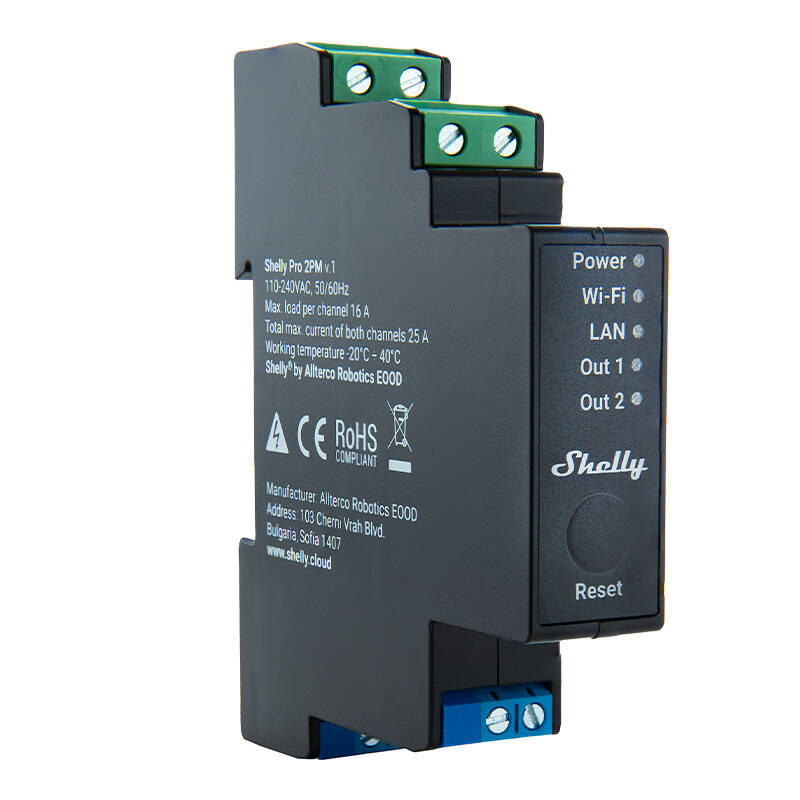

Shelly Pro 2PM DIN rail 2-channel relay, WiFi/LAN (Energy measurement)
Shelly Pro 2PM is a 2-channel DIN rail relay that allows you to control devices with a maximum load of up to 16 A per channel and has built-in energy monitoring capabilities. It supports WiFi, LAN and Bluetooth connectivity, making it suitable for home and building automation.
- Control two devices remotely with a maximum load of up to 16 A per channel, perfect for home automation.
- The integrated energy meter allows you to accurately monitor energy consumption for efficient use.
- Compatible with popular voice assistants such as Google Assistant, Amazon Alexa, and Samsung SmartThings.
- Supports WiFi, LAN and Bluetooth connectivity, providing a variety of installation options.
Features | |
|---|---|
| Product type | 2-channel DIN rail relay |
| Brand | Shelly |
| Model | SPSW-202PE16EU |
Specifications | |
| AC power supply voltage | 110 - 240V |
| Power | < 3W |
| Maximum AC switching voltage | 240V |
| Maximum AC inrush current | 16 A per channel, 25 A total |
| AC voltmeter | Yes |
| AC ammeter | Yes |
| Integrated temperature sensor | Yes |
| Wi-Fi protocol | 802.11 b/g/n |
| Wi-Fi range | Up to 30 m indoors, up to 50 m outdoors |
| Bluetooth protocol | 4.2 |
| Bluetooth range | Up to 10 m indoors, up to 30 m outdoors |
| CPU | ESP32-D0WDQ6 |
| Flash memory | 8MB |
| Dimensions | 94 x 19 x 69 mm ±0.5 mm |
| Installation | DIN rail |
| Housing material | Plastic |
| Working temperature | From -20°C to 40°C |
| Humidity | 30% to 70% RH |
| Maximum height | 2000 |
Safety warning | |
| Use the product only for its intended purpose to ensure safety and proper operation. | |
