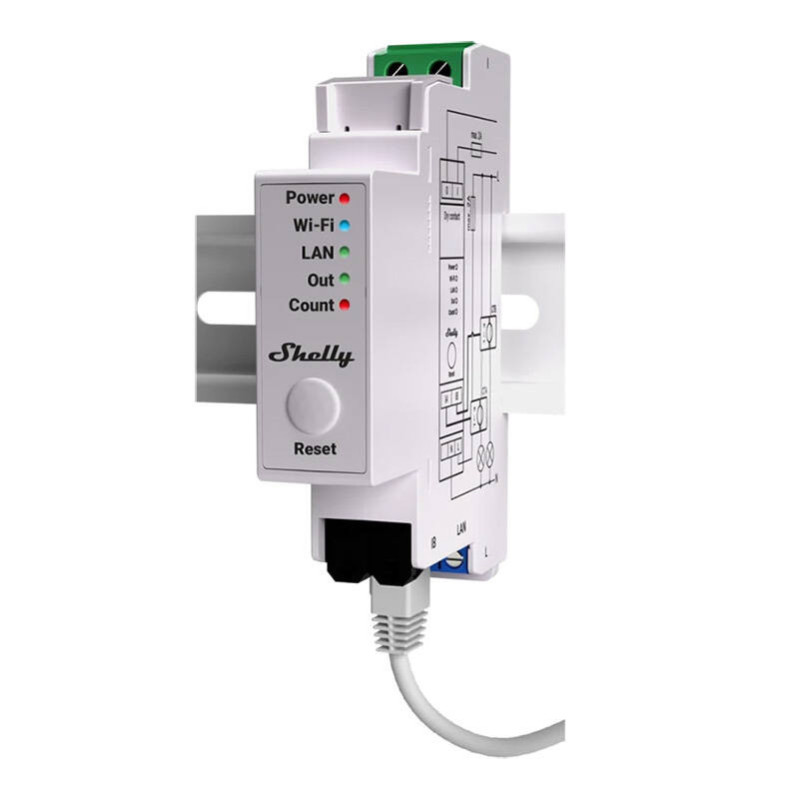

Energy meter - Shelly Pro EM-50 WiFi / LAN, 2-channel, single-phase, white
Product reference: 14-3800235268148

Shelly Pro EM-50 is a dual-channel, single-phase electricity consumption meter that measures voltage, current, active and apparent power in real time. It offers LAN and Wi-Fi connectivity for remote monitoring and data storage for up to 60 days.

Energijos matuoklis - Shelly Pro EM-50 WiFi / LAN, 2-kanalų, vienfazis, baltas

Energy meter - Shelly Pro EM-50 WiFi / LAN, 2-channel, single-phase, white

Product reference: 14-3800235268148

Shelly Pro EM-50 is a dual-channel, single-phase electricity consumption meter that measures voltage, current, active and apparent power in real time. It offers LAN and Wi-Fi connectivity for remote monitoring and data storage for up to 60 days.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
12074 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

Shelly Pro EM-50 Energy Meter, WiFi/LAN


Shelly Pro EM-50 is a dual-channel, single-phase electricity consumption meter that measures voltage, current, active and apparent power in real time. It offers LAN and Wi-Fi connectivity for remote monitoring and data storage for up to 60 days.


  • Real-time measurements of electricity consumption, voltage, current and power.
  • Supports Wi-Fi and LAN connectivity, allowing flexible integration with home automation systems.
  • Stores data for up to 60 days, allowing detailed analysis of energy usage patterns.
  • Easy setup with a user-friendly web interface for remote access and configuration.

Features

Product Type Electricity consumption meter
Product Brand Shelly
Model About EM-50

Specifications

Dimensions 94 x 19 x 69 ±0.5 mm
Weight 63 ±1g
Installation DIN rail
Housing Plastic
Color White
Ambient Temperature -20°C to 40°C
Humidity 30% to 70% RH
Maximum Height 2000
AC Power Supply Voltages 100 - 260V, 50/60Hz
Power < 3W
Maximum AC Switching Voltage 240V
Maximum Switching Current 2 A
Internal Temperature Sensor Yes
Voltmeter (RMS) 100 - 260V
Voltmeter Accuracy ±1%
Ammeter (RMS using CT) 0 - 50A
Ammeter Accuracy ±1% (5 - 50 A), ±2% (0 - 5 A)
Power and Energy Meters Active and apparent power, active and apparent energy, power factor
No Load Threshold 30 VA per phase
Measurement Data Storage At least 60 days with data resolution of 1 min
Data Export For CSV-recorded PQ values, JSON format export via RPC
Wi-Fi Range Up to 30 m indoors and 50 m outdoors (depending on local conditions)
Bluetooth Protocol 4.2
Bluetooth Range Up to 10 m indoors and 30 m outdoors (depending on local conditions)
CPU ESP32-D0WDQ6
Flash Memory 16MB
Webhooks (URL Sharing) 20 with 5 URLs per hook
Scripts Yes
MQTT Yes
CoAP No
