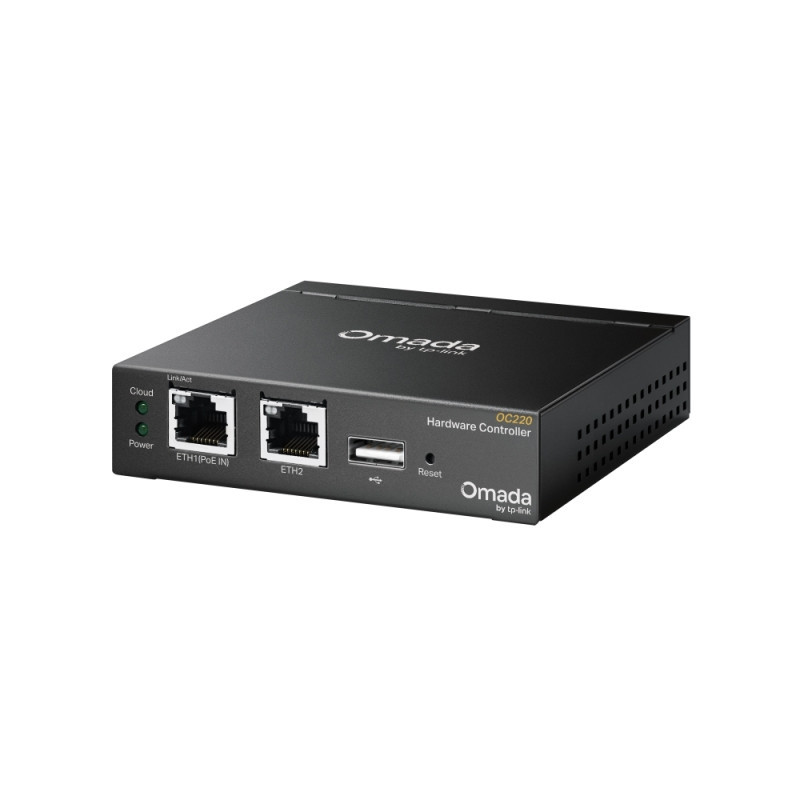

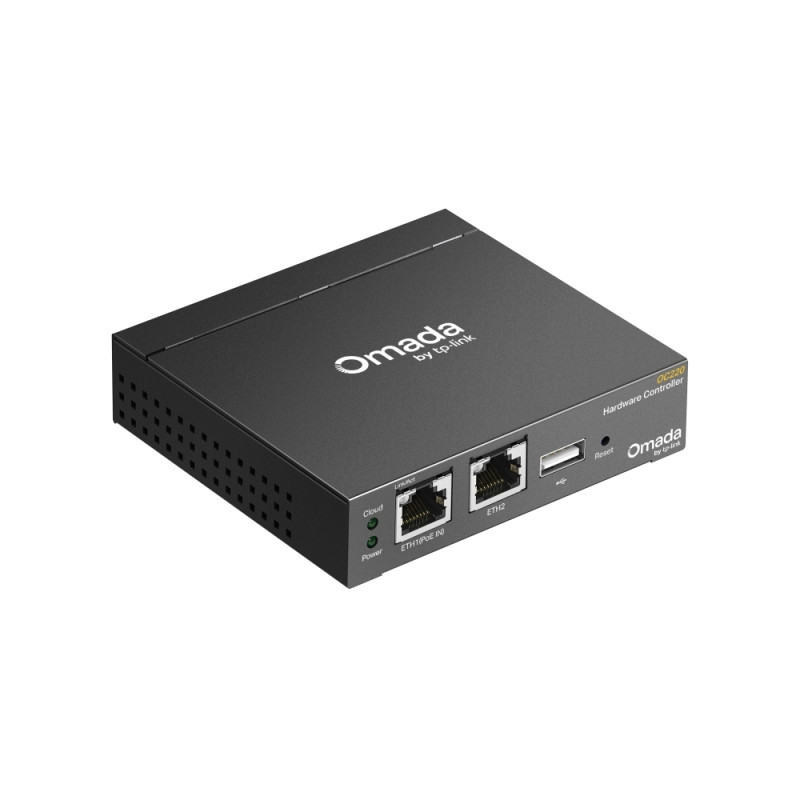

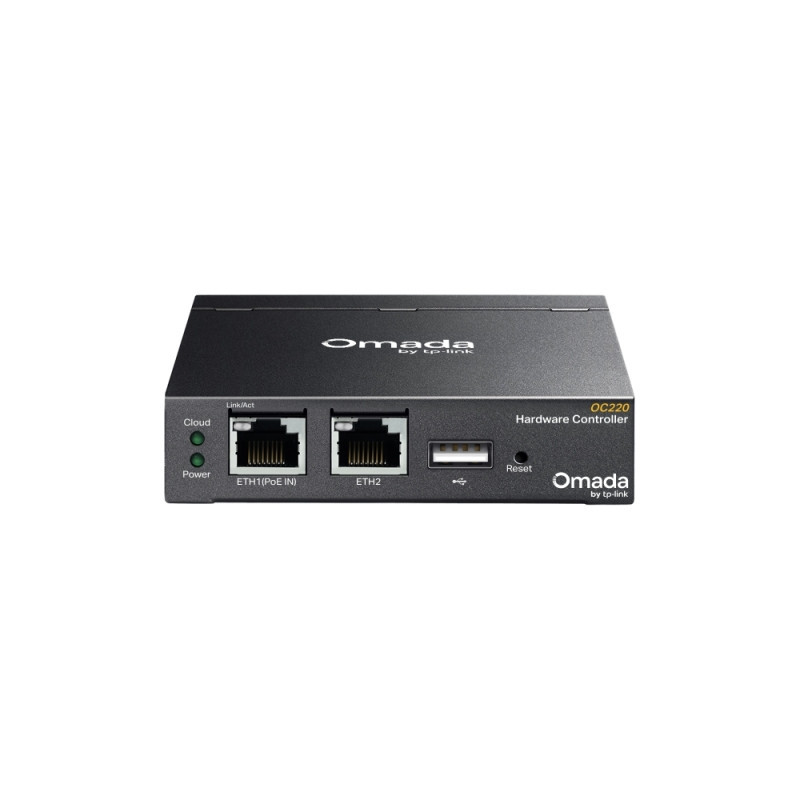

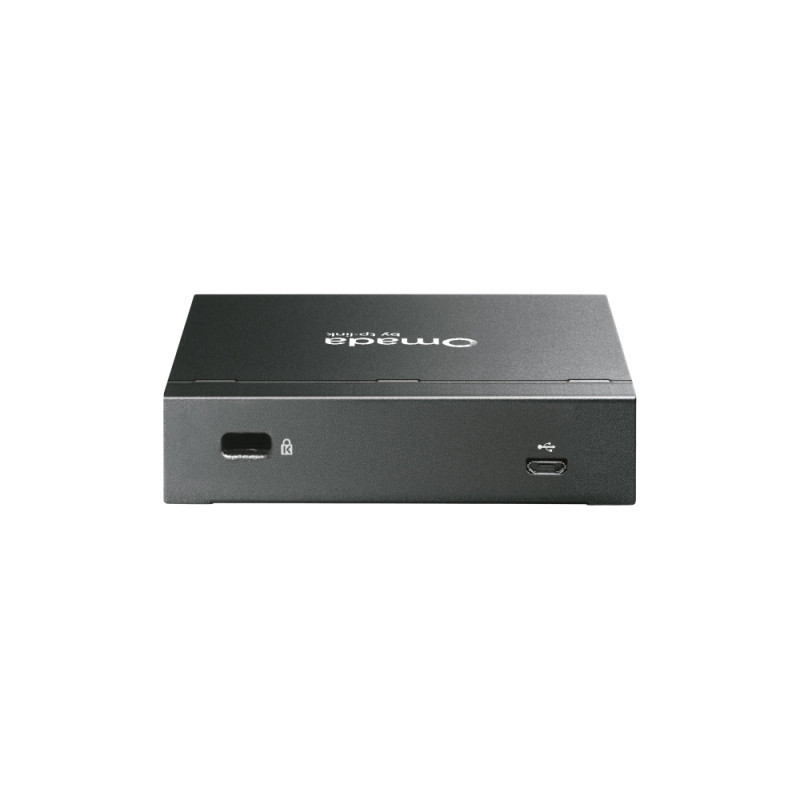

TP-LINK Omada Hardware Controller OC220
Product reference:
18-OC220
TP-LINK Omada Hardware Controller OC220
TP-LINK Omada Hardware Controller OC220
Product reference:
18-OC220
TP-LINK Omada Hardware Controller OC220
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 3
business days
- Centralized Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs
- Free Cloud Access:Manage and monitor with the Omada app or Web UI from anywhere, anytime.
- On-Premises Management:Locally monitor and manage devices with the ultimate stability and complete privacy.
- Hardware Design for Businesses:Features a powerful chipset, durable metal casing, USB 2.0 port for data backup, and two Gigabit Ethernet ports.

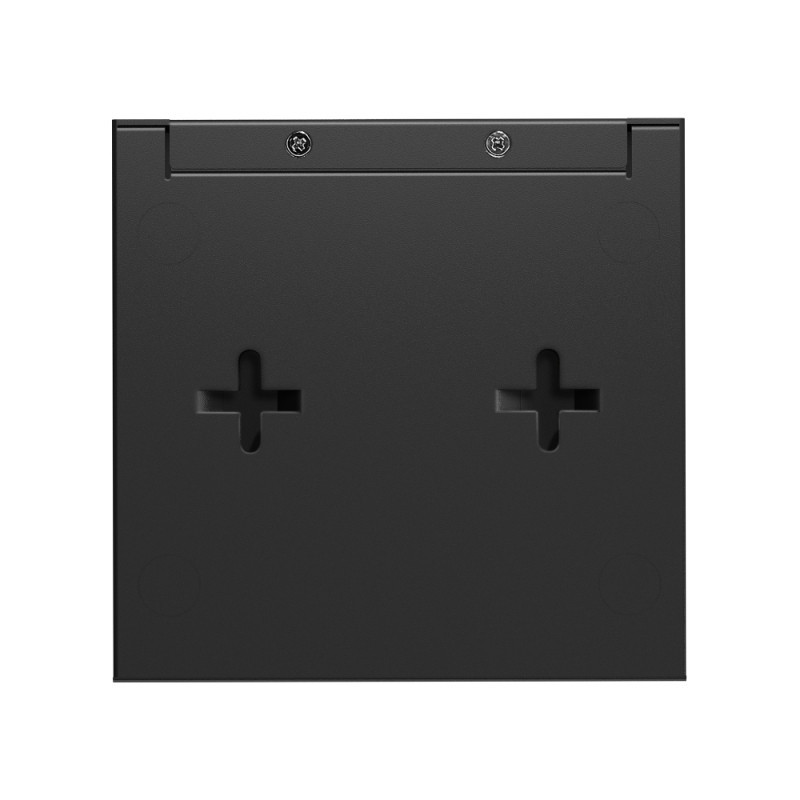

- Flexible Deployment:Powered via 802.3af PoE or Micro USB (DC 5V/Minimum 1A) with a compact desktop or wall mount installation.
| HARDWARE FEATURES | |
|---|---|
| Interface | • 2× Gigabit Ethernet Ports • 1× USB 2.0 Port • 1× Micro USB Port |
| Power Supply | • 802.3af PoE • Micro USB（DC 5V/Minimum 1A） |
| Dimensions (W x D x H) | 3.9×3.9×1.0 in (100×98×25 mm) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • 100 Omada access points • 10 Omada gateways • A maximum of 20 Omada switches • A maximum of two select DeltaStream GPON OLTs Note: Please refer to www.omadanetworks.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC220 *†The number of supported Omada switches decreases by five for each DeltaStream GPON OLT added. Refer to ithttps://www.omadanetworks.com/omada-sdn/product-list/#sp-gponto find all the DeltaStream GPON OLTs that are supported by the controller. |
| Cloud Access | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • Omada Hardware Controller OC220 • Quick Installation Guide • RJ45 Ethernet Cable |
| System Requirements | Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Environment | • Operating Temperature: -5-50 (23-122 ) • Storage Temperature: -40-70 (-40-158 ) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing |
