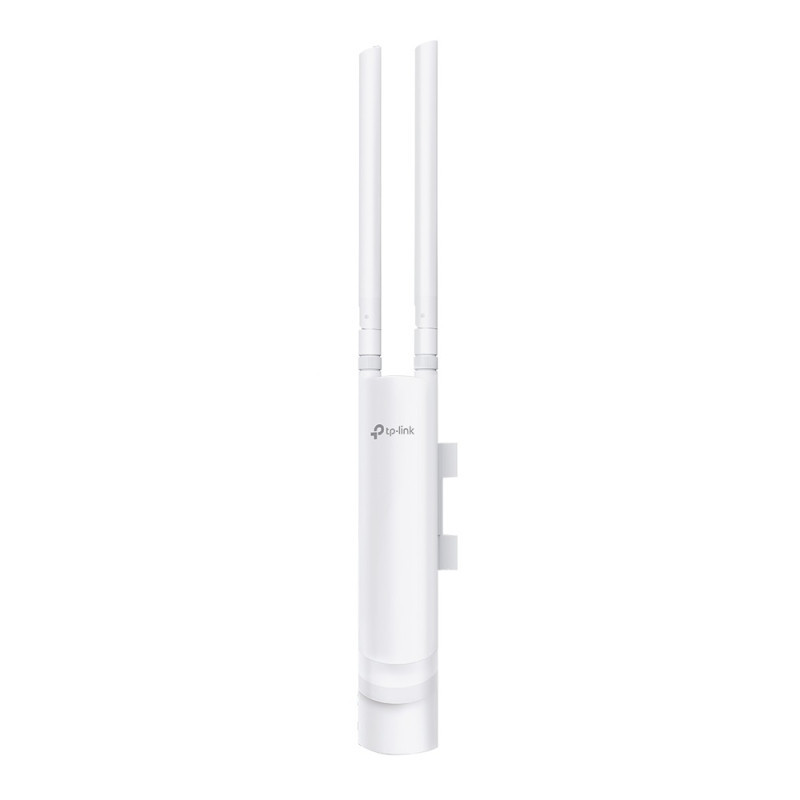

TP-LINK 300Mbps Wireless N Outdoor Access Point
Product reference:
18-EAP113-Outdoor
TP-LINK 300Mbps Wireless N Outdoor Access Point
TP-LINK 300Mbps Wireless N Outdoor Access Point
Product reference:
18-EAP113-Outdoor
TP-LINK 300Mbps Wireless N Outdoor Access Point
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
12 month
Delivery from Lithuania in
2 - 3
business days
Not available
- Ideal for Outdoor Environments: IP65 weatherproof enclosure for outdoor Wi-Fi applications.
- Fast Wi-Fi: Up to 300Mbps Wi-Fi with 2×2 MIMO.

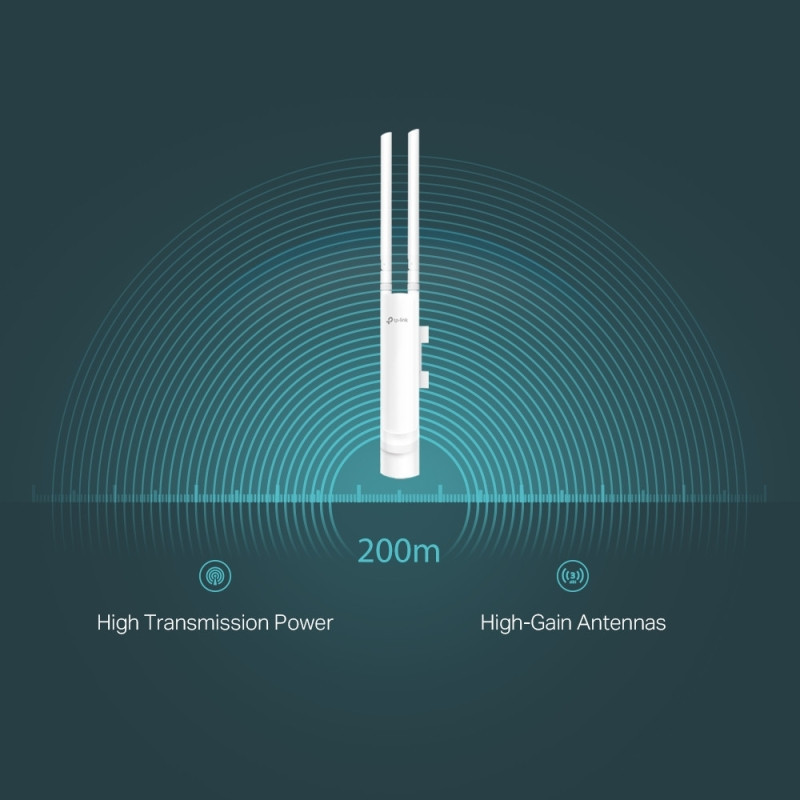

- Long-Range Coverage: Dedicated high-power amplifier and professional antennas.
- Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- PoE Support: Support both standard 802.3af and 48V Passive PoE for flexible installations.
- Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.
| HARDWARE FEATURES | |
|---|---|

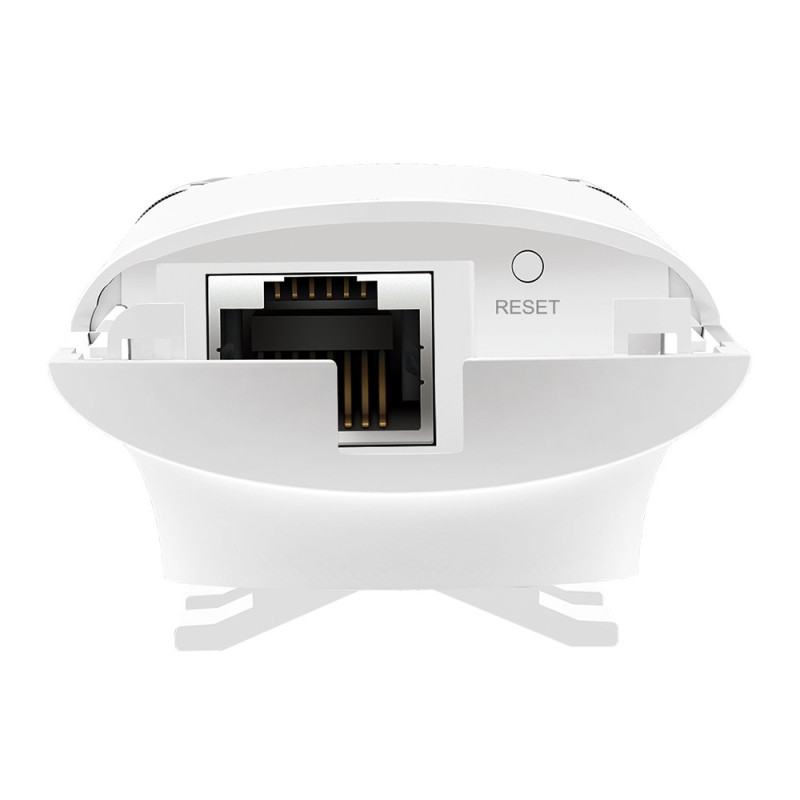

| Interface | 1× Fast Ethernet (RJ-45) Port (Support 48V Passive PoE/802.3af PoE) |
| Button | Reset |
| Power Supply | 48V Passive PoE (+4.5pins; -7.8pins); 802.3af PoE |
| Power Consumption | 4.11 W |

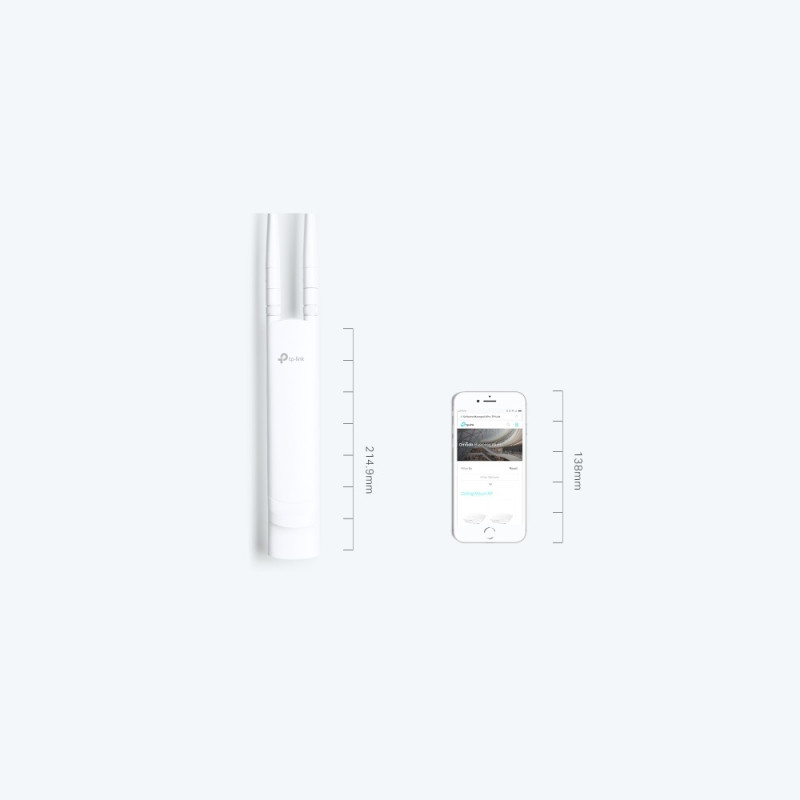

| Dimensions (W x D x H) | 8.5 × 1.8 × 1.5 in (214.9 × 46 × 37.7 mm) |
| Antenna Type | 2× 3 dBi External Omni waterproof |
| Weatherproof Enclosure | IP65 |

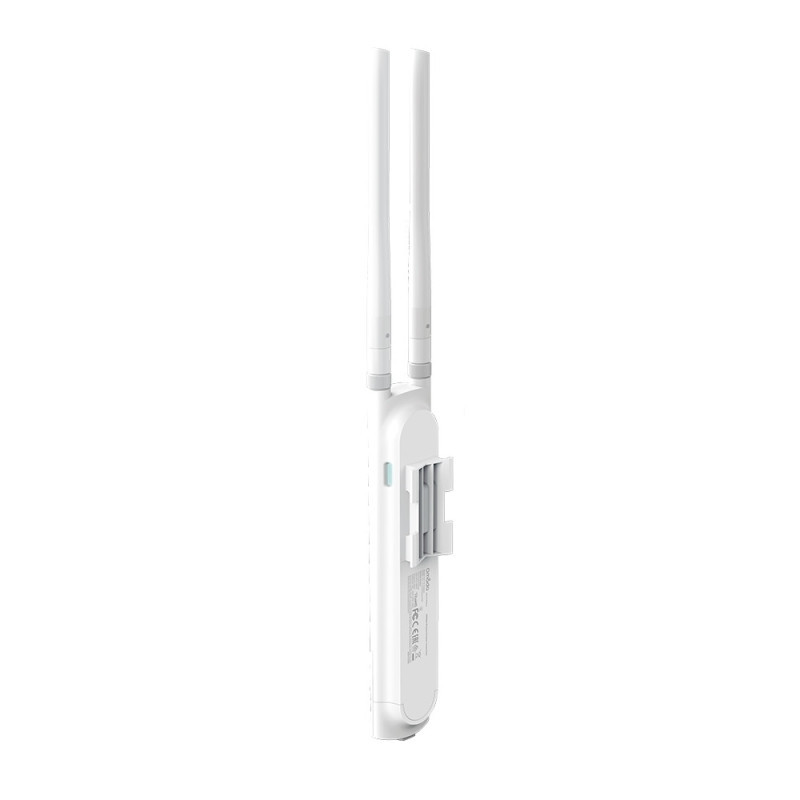

| Mounting | Pole / Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Client Capacity | 100+** |
| Wireless Standards | IEEE 802.11n/g/b |
| Frequency | 2.4 GHz |
| Signal Rate | • 11n: Up to 300 Mbps (dynamic) • 11g: Up to 54 Mbps (dynamic) • 11b: Up to 11 Mbps (dynamic) |
| Transmit Power | • CE: ≤20 dBm (EIRP) • FCC: ≤22 dBm |
| Wireless Functions | • Multiple SSIDs（Up to 8 SSIDs） • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control （Adjust Transmit Power on dBm） • QoS(WMM) • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • 300Mbps Wireless N Outdoor Access Point, EAP113-Outdoor • Mounting Kits • Waterproof Rubber Insert • Waterproof Antennas • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Environment | • Operating Temperature: -30-65 (-22-149 ) • Storage Temperature: -40-70 (-40-158 ) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing |
