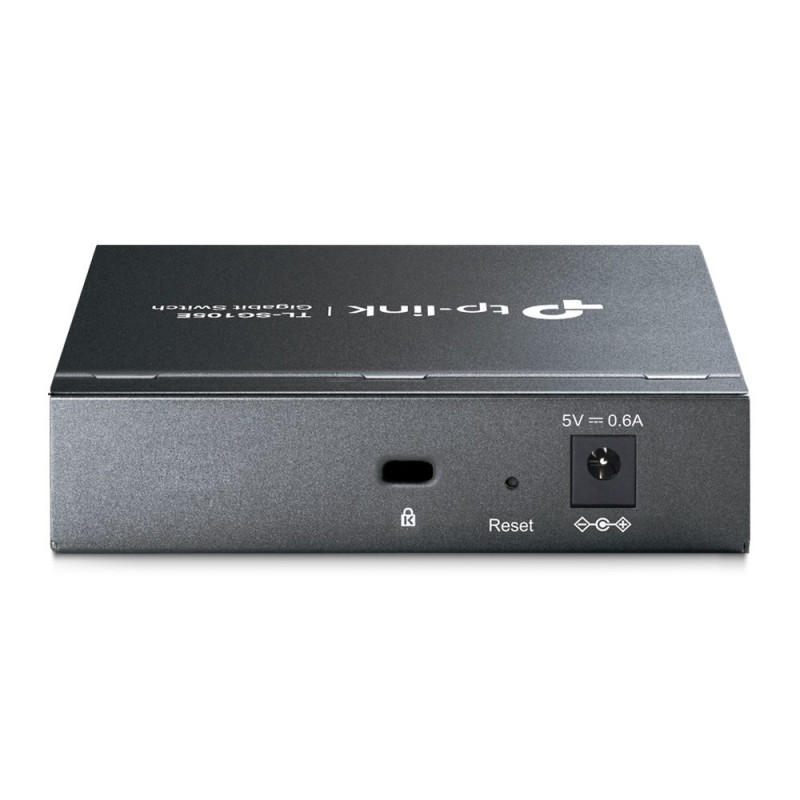

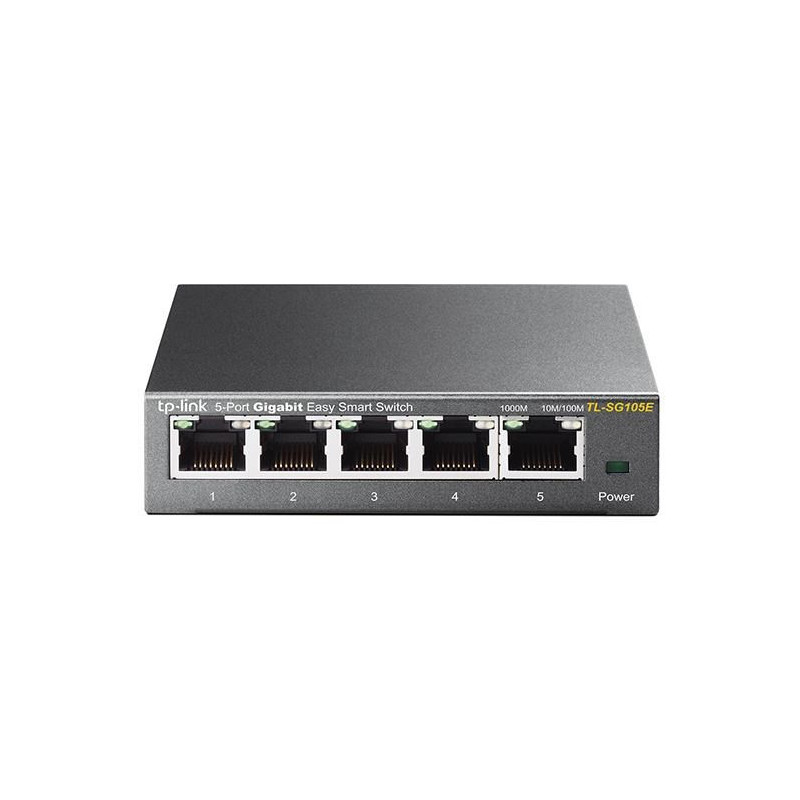

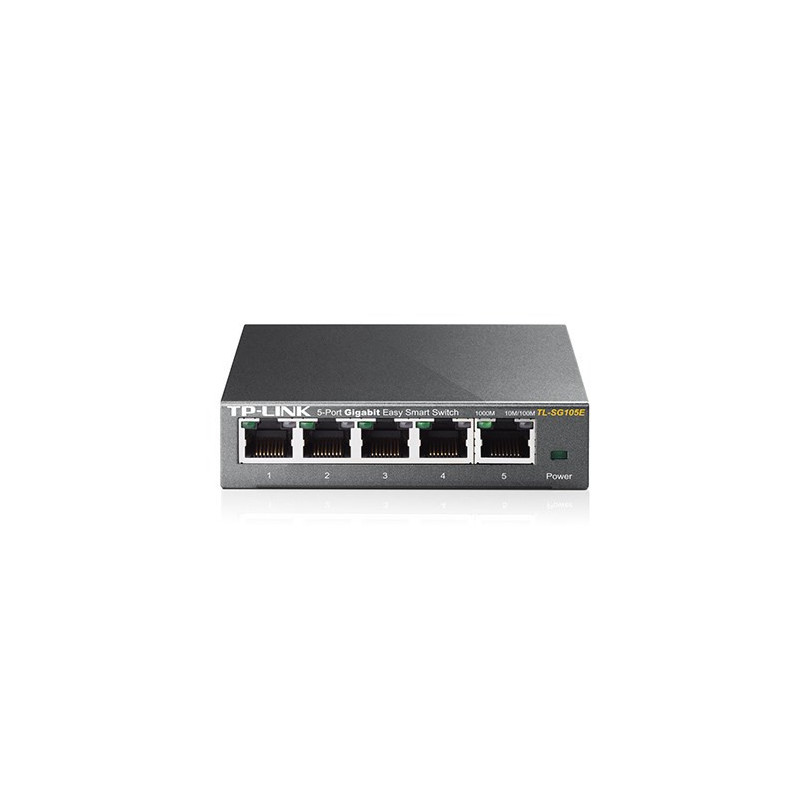

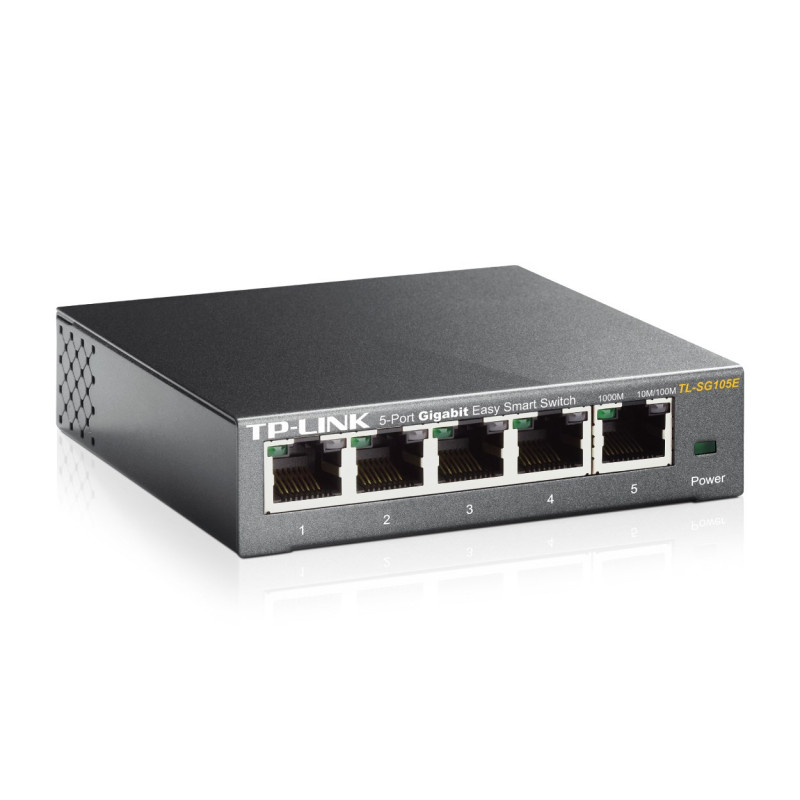

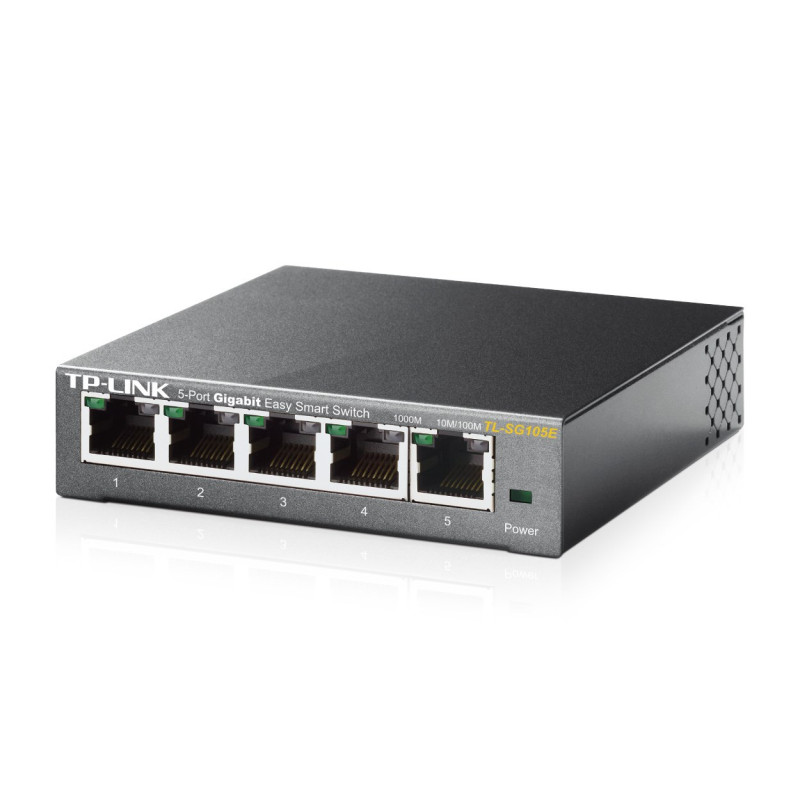

Network Switch - TP-Link 5-Port Gigabit Easy Smart Switch
Product reference:
14-6935364022037
The TP-Link 5-Port Gigabit Easy Smart Switch with 5 Gigabit Ethernet ports supports up to 32 VLANs for efficient network segmentation, and offers quality of service and port mirroring features for traffic monitoring.
Network Switch - TP-Link 5-Port Gigabit Easy Smart Switch
Product reference:
14-6935364022037
The TP-Link 5-Port Gigabit Easy Smart Switch with 5 Gigabit Ethernet ports supports up to 32 VLANs for efficient network segmentation, and offers quality of service and port mirroring features for traffic monitoring.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Not available
Network switch - TP-Link 5-port Gigabit Easy Smart Switch
A compact, unmanaged Gigabit Ethernet switch for small networks. It features five RJ-45 ports that support VLANs, port mirroring, and quality of service (QoS).
Main features:
- 5 Gigabit Ethernet ports
- Complies with IEEE 802.1Q and IEEE 802.3x standards
- VLAN support up to 32 VLANs
- Port mirroring for traffic monitoring
Design | |
|---|---|
| LED indicators | Yes |
| Product color | Black |
Power | |
| Maximum power consumption | 2.82W |
| Power source | DC |
| Voltage | 5V |
| Power supply included | Yes |
| Input current | 0.6A |
Security | |
| IGMP snooping | Yes |
Operating conditions | |
| Heat dissipation | 9.62 BTU/h |
| Operating relative humidity | 10 - 90% |
| Operating temperature | 0 - 40 °C |
| Storage temperature | -40 - 70 °C |
| Storage relative humidity | 5 - 90% |
Control functions | |
| Web-based management | Yes |
| Switch type | Uncontrollable |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
Weight and dimensions | |
| Height | 26 mm |
| Depth | 98 mm |
| Width | 99.8 mm |
Network | |
| Network standards | IEEE 802.1Q, IEEE 802.3x, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3u |
| Copper Ethernet cable technologies | 100BASE-TX, 10BASE-T, 1000BASE-T |
| Port mirroring | Yes |
| VLAN support | Yes |
| Number of VLANs | 32 |
| 10G support | No |
| Virtual LAN features | Port-based VLAN |
| Automatic tuning | Yes |
| Auto MDI/MDI-X | Yes |
| Connection aggregation | Yes |
Packaging details | |
| Quick Start Guide | Yes |
| Cables included | AC |
| Package width | 128mm |
| Package height | 92 mm |
| User manual | Yes |
| Mounting frame kit | Yes |
| Package depth | 125mm |
| Packaging type | Box |
Ports and interfaces | |
| Number of main RJ-45 Ethernet ports | 5 |
| Type of main RJ-45 Ethernet ports | Gigabit Ethernet (10/100/1000) |
| Number of Gigabit Ethernet (copper) ports | 5 |
Data transfer | |
| Transmission speed | 7.44 Mpps |
| MAC address table | 2000 entries |
| Packet buffer memory | 1MB |
| Connection capacity | 10 Gbps |
| Store-and-forward | Yes |
| Jumbo frame support | Yes |
| Jumbo frames | 16000 |
Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
Operation | |
