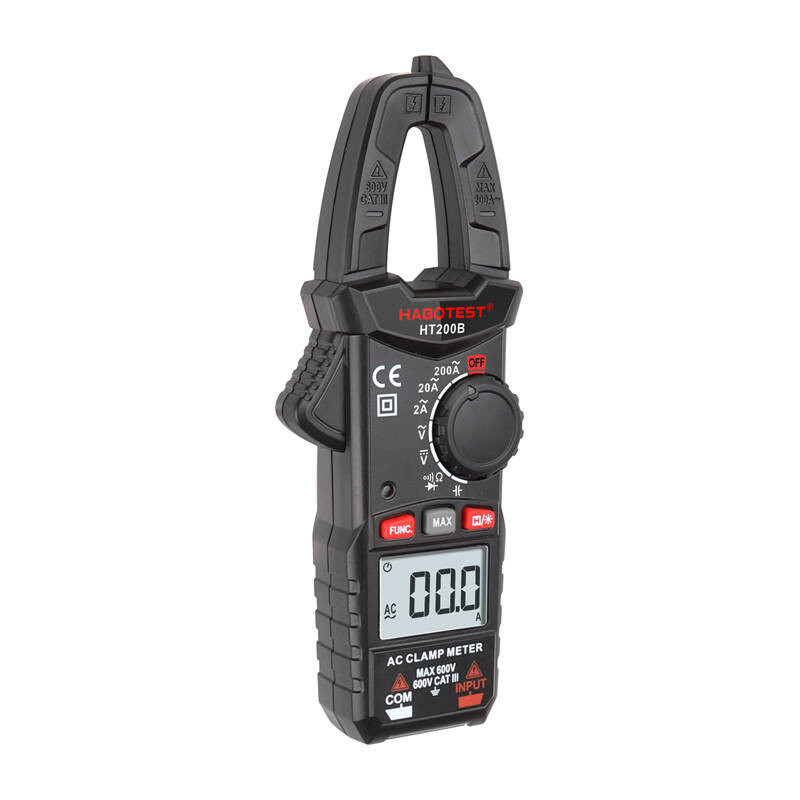

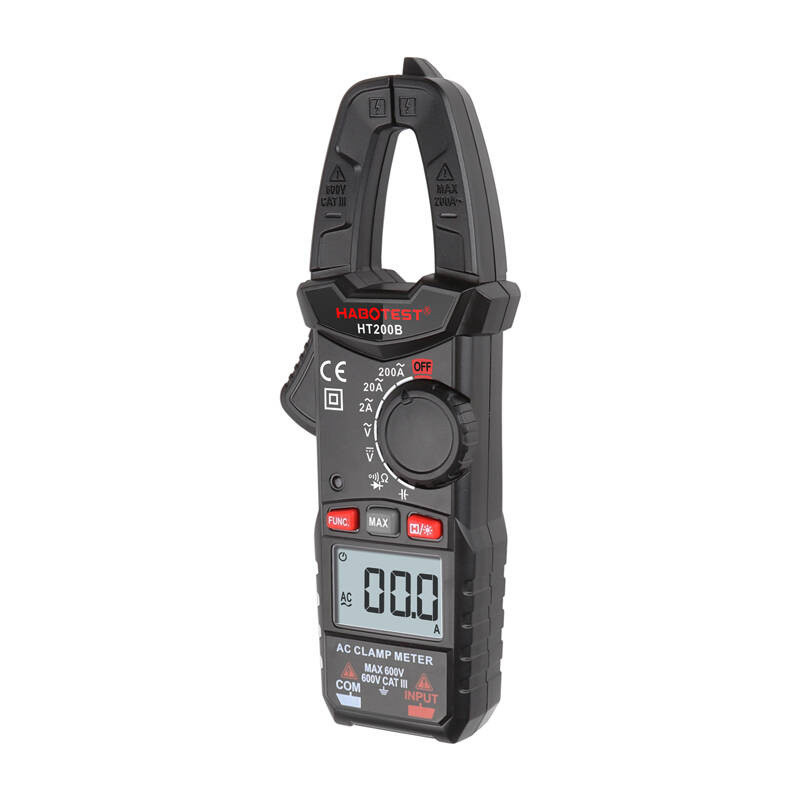

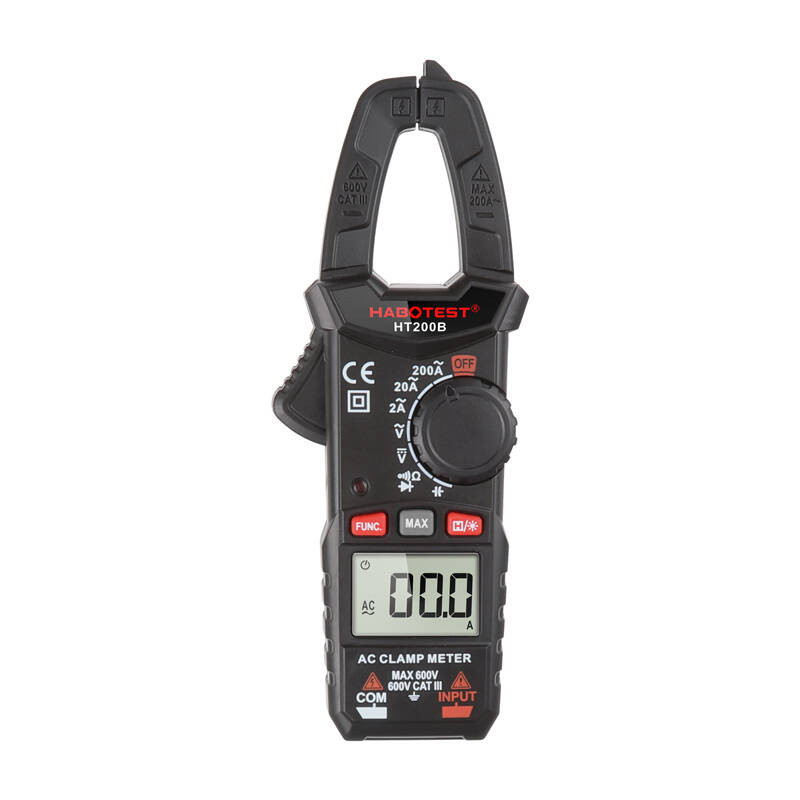

Meter - Habotest HT200B Digital Clamp Meter AC / DC Voltage, Current, Resistance, Backlit Display
Product reference:
14-5907489606684
The Habotest HT200B is a compact digital ammeter that measures AC and DC voltage, AC current, resistance, capacitance and continuity. It features a backlit HD display, data hold function and a jaw width of up to 18 mm, allowing for convenient use in a variety of applications.
Meter - Habotest HT200B Digital Clamp Meter AC / DC Voltage, Current, Resistance, Backlit Display
Product reference:
14-5907489606684
The Habotest HT200B is a compact digital ammeter that measures AC and DC voltage, AC current, resistance, capacitance and continuity. It features a backlit HD display, data hold function and a jaw width of up to 18 mm, allowing for convenient use in a variety of applications.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Not available
Digital clamp multimeter Habotest HT200B
The Habotest HT200B is a compact digital clamp multimeter that measures AC and DC voltage, AC current, resistance, capacitance and continuity. It has a backlit HD display, data hold function and a clamp size of up to 18 mm, which makes it easy to use in a variety of applications.
- Compact and lightweight design, weighing only 150g, for comfortable carrying.
- Measures AC/DC voltage, AC current, resistance, capacitance, and also has diode and continuity testing functions.
- Backlit HD display with low battery indicator and two-color backlighting for better visibility.
- The data hold function allows you to easily read and store measurement results.
Features | |
|---|---|
| Product type | Digital clamp multimeter |
| Brand | Habotest |
| Model | HT200B |
Specifications | |
| DC voltage measurement | 200mV/2V/20V/200V/600V ±(0.5%+5) |
| AC voltage measurement | 2V/20V/200V/600V, ±(1.0%+5) |
| AC current measurement | 2A/20A/200A, ±(2.5%+8) |
| Resistance measurement | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ, ±(1.0%+5) |
| Capacity measurement | 20nF/200nF/2uF/20uF/200uF/2mF, ±(4.0%+5) |
| Numbers | 2000 |
| Data storage function | Yes |
| Continuity testing | Yes, sound and light signal |
| Diode test | Yes |
| True RMS | Yes |
| Low battery indicator | Yes |
| Two-color lighting | Yes |
| Automatic shutdown | Yes |
| MAX function | Yes |
| Power supply | 2x AAA 1.5V batteries |
| Weight | About 150g |
| Dimensions | 164x61x30mm |
| Pliers size | Ø18x36mm |
| Safety standards | EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V |
