KVM Extender - HDMI 4K30, USB HID, IR over IP Network, 150m, HDCP 1.4
Product reference:
14-4002888382649
Extends HDMI 4K@30Hz, USB HID and IR signals over an IP network up to 150 m. Supports HDCP 1.4 and operates in a temperature range of 0°C to 55°C.
KVM Extender - HDMI 4K30, USB HID, IR over IP Network, 150m, HDCP 1.4
Product reference:
14-4002888382649
Extends HDMI 4K@30Hz, USB HID and IR signals over an IP network up to 150 m. Supports HDCP 1.4 and operates in a temperature range of 0°C to 55°C.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

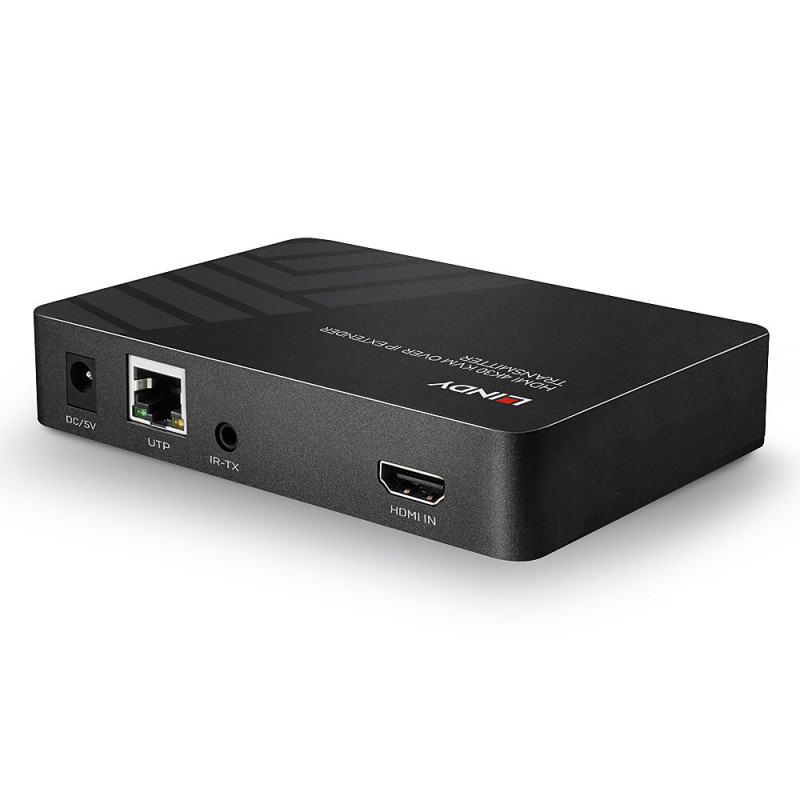

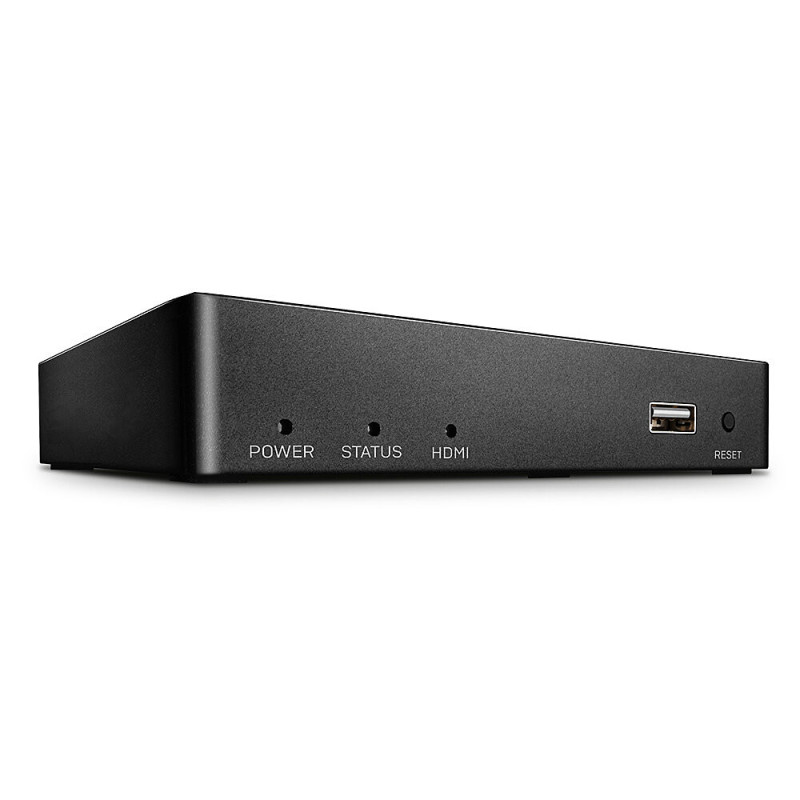

KVM over IP Extender, Transmitter HDMI® 4K30, USB HID and IR over IP network
Extends HDMI 4K@30Hz, USB HID and IR signals over an IP network up to 150m. Supports HDCP 1.4 and operates in a temperature range of 0°C to 55°C.
- Extends HDMI® 4K@30Hz video and USB HID signals over an IP network up to 150m (492ft).
- Supports HDCP 1.4 and audio pass-through over HDMI® for a complete AV experience.
- IR signal transmission (25-56kHz) for remote control function is included.
- Compact and lightweight design with a sturdy plastic body, ideal for a variety of environments.
Features | |
|---|---|
| Product type | KVM over IP Extender |
| Model | KVM over IP Extender, Transmitter |
Specifications | |
| AV interface | HDMI® |
| Console interface | USB |
| Interface standard | HDMI® 1.4, USB (HID) |
| Supported bandwidth | 10.2Gbps |
| Maximum distance | 150m (492ft) (Point to Point) |
| Maximum resolution | 4K@30Hz (3840x2160@30Hz) |
| HDCP support | HDCP 1.4 |
| Audio transmission supported | Audio transmission via HDMI® signal |
| Transmission protocol | IP |
| Transmission medium | Cat.5e/6 |
| Special features | IR signal (25-56kHz) transmission |
Connectors | |

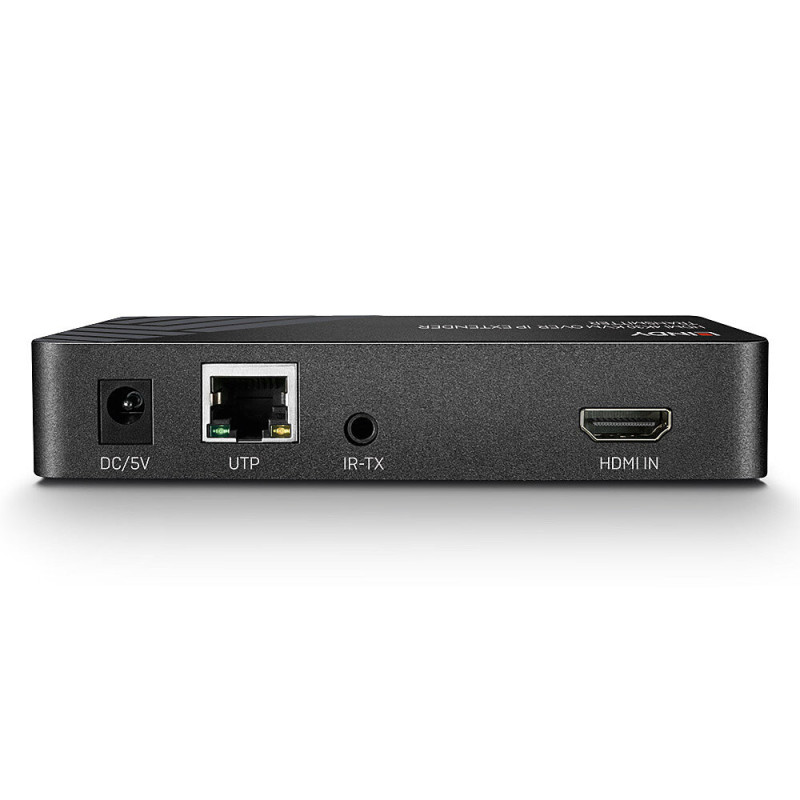

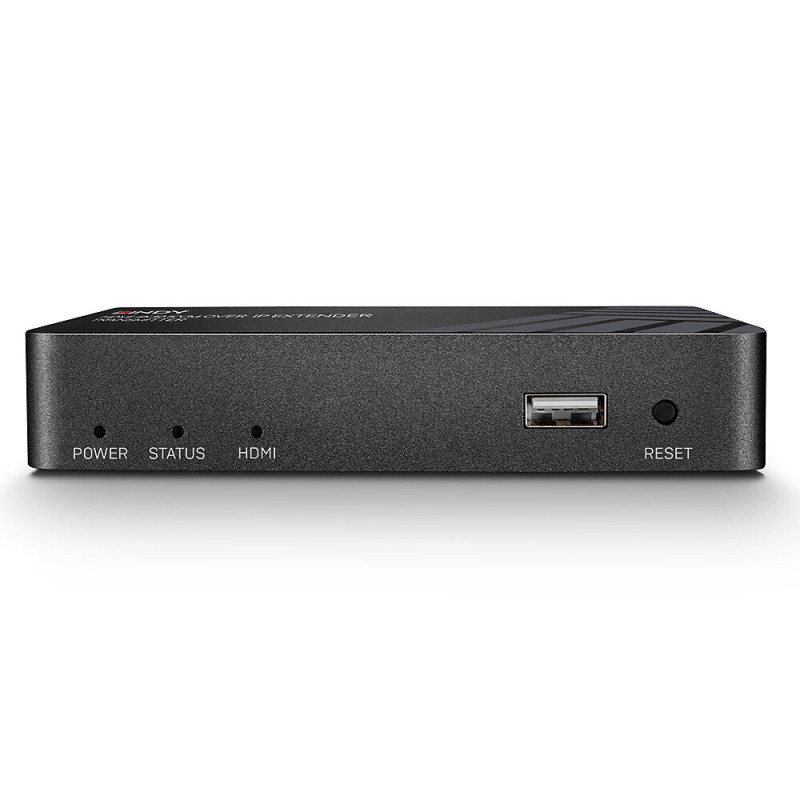

| Transmitter KVM interfaces | HDMI® (Female), USB Type A (Female) |
| Transmitter expansion port | RJ45 |
| Other interfaces | IR 3.5mm (Female) |
| Power supply | 5.5/2.1mm DC jack |
Physical properties | |
| Dimensions (approximate) | 124x85x24mm (4.88x3.35x0.94in) |
| Housing material | Plastic |
| Net weight | 0.2kg (0.45lb) |
| Operating temperature | 0°C - 55°C (32°F - 131°F) |
| Storage temperature | -10°C - 75°C (14°F - 167°F) |
| Humidity | 10 - 80% RH (non-condensing) |
| Power requirements | 5VDC 1A |
| Color | Black |
Miscellaneous | |
| Packaging type | Cardboard box |
| Package dimensions | 220x170x60mm (8.66x6.69x2.36in) |
| Total weight | 0.8kg (1.76lb) |
| Certification | CE, FCC, RoHS, REACH |
