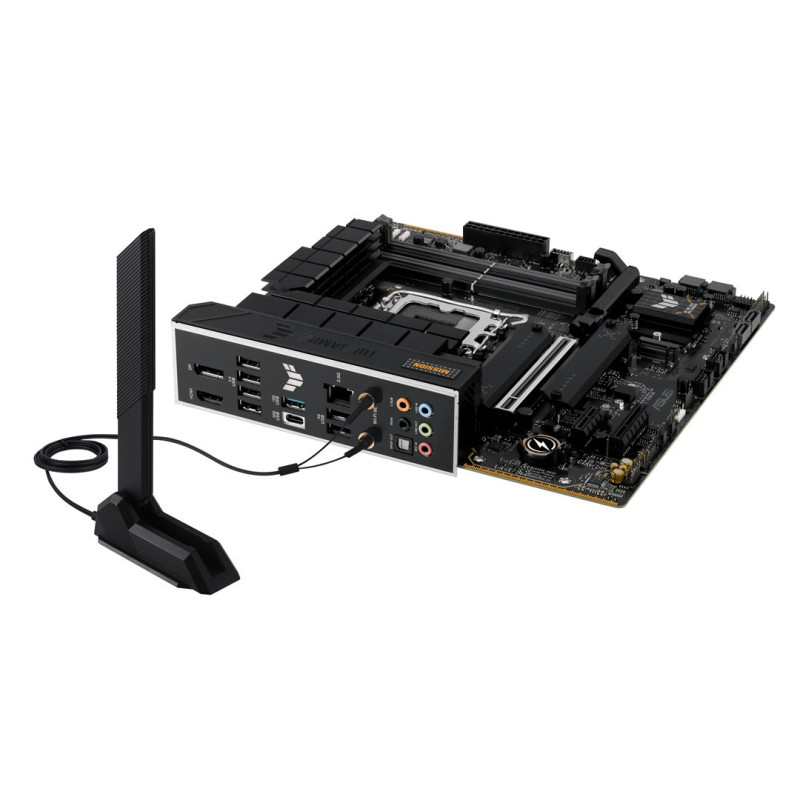

ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX
Product reference:
6-90MB1HE0-M0EAY0
ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX
ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX
Product reference:
6-90MB1HE0-M0EAY0
ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Supported processor sockets | LGA 1700 |
| Parallel processing technology support | Not supported |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 |
| Windows operating systems supported | Windows 11, Windows 10 |
| Cooling type | Passive |
| Product colour | Black |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR5-SDRAM |
| Supported memory clock speed (max) | 7800 MHz |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 5200, 4800, 5000, 5800, 6800, 6200, 6000, 6400, 6600, 7000, 5600, 7800, 5400 |
| Memory channels | Dual-channel |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Depth | 244 mm |
| Width | 244 mm |
| Ethernet LAN | Yes |
| Bluetooth version | 5.3 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| 12V power connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| RGB LED pin header | Yes |
| Front panel audio connector | Yes |
| Thunderbolt headers | 1 |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| USB 2.0 connectors | 3 |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| User guide | Yes |
| Number of storage drives supported | 7 |
| Number of HDDs supported | 4 |
| RAID levels | 5, 1, 10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| WiFi-AP antenna jack | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Line-in | Yes |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| S/PDIF out port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| Weight | 982 g |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage., Before starting any maintenance or installation, disconnect the product from the power supply., Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
