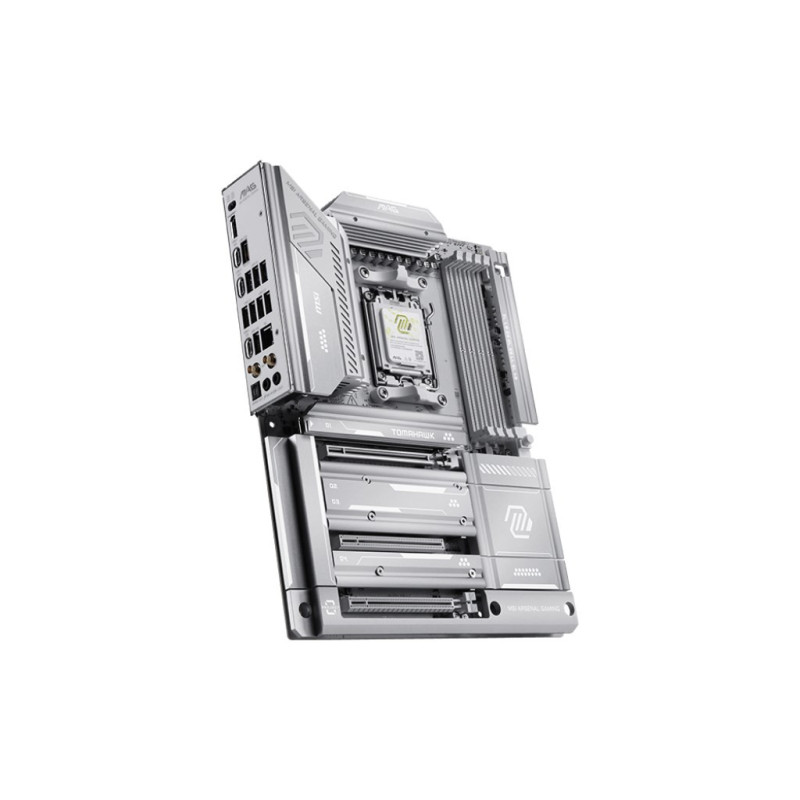

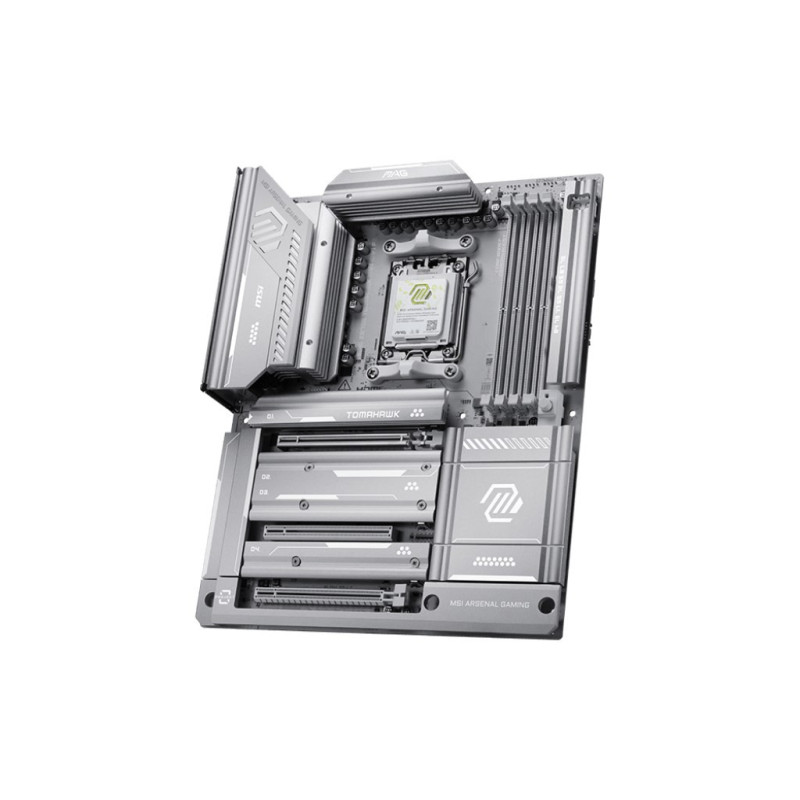

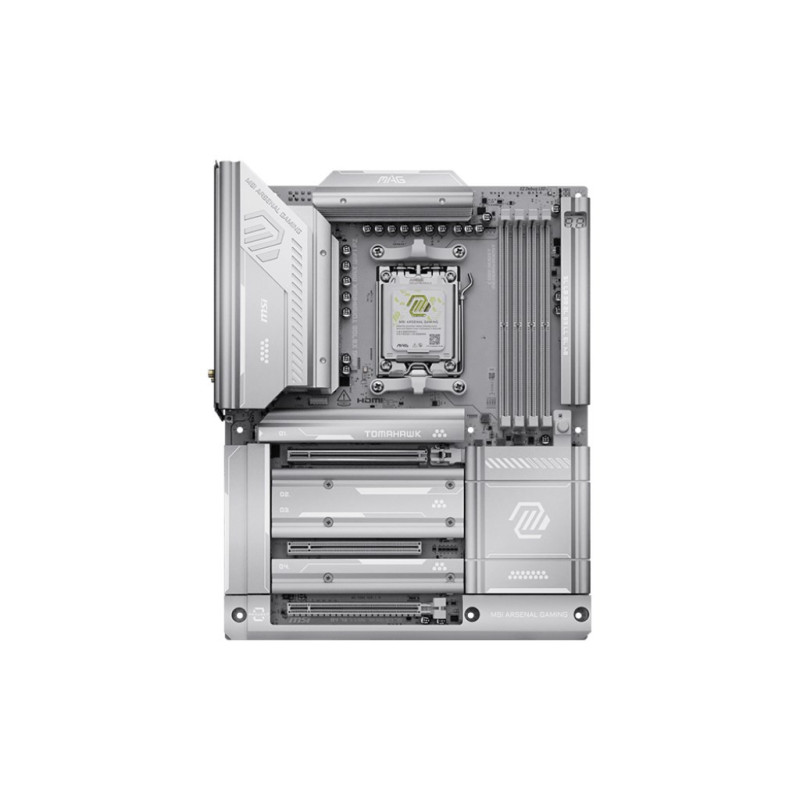

MSI MAG X870E TOMAHAWK MAX WIFI PZ motherboard AMD X870E Socket AM5 ATX
Product reference:
6-MAG X870E TOMAHAWK MAX WIFI PZ
MSI MAG X870E TOMAHAWK MAX WIFI PZ motherboard AMD X870E Socket AM5 ATX
MSI MAG X870E TOMAHAWK MAX WIFI PZ motherboard AMD X870E Socket AM5 ATX
Product reference:
6-MAG X870E TOMAHAWK MAX WIFI PZ
MSI MAG X870E TOMAHAWK MAX WIFI PZ motherboard AMD X870E Socket AM5 ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 9000 Series, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| On-board graphics card | No |
| Motherboard form factor | ATX |
| PC health monitoring | Temperature, CPU, Fan, Voltage |
| Motherboard chipset family | AMD |
| Audio output channels | 7.1 channels |
| Product colour | White |
| Motherboard chipset | AMD X870E |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 8400 MHz |
| Unbuffered memory | Yes |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 6400, 4800, 8400 MHz, 5600 |
| Maximum internal memory | 256 GB |
| Depth | 304.8 mm |
| Width | 243.8 mm |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11g |
| Ethernet LAN | Yes |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| LAN controller | Realtek RTL8126 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Total number of SATA connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
| CPU fan connector | Yes |
| Front panel connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| USB 2.0 connectors | 4 |
| BIOS type | UEFI AMI |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID levels | 10, 1 |
| RAID support | Yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Microphone in | Yes |
| DisplayPorts quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 4 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| S/PDIF out port | Yes |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 largest key size | 2280 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 highest PCI Express generation | 4.0 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 4th M.2 largest key size | 2280 |
| Warnings | Avoid contact with liquids to prevent electronic damage., Do not disassemble to avoid damage to internal components and loss of warranty., Dispose of in accordance with local regulations for electronic waste. |
