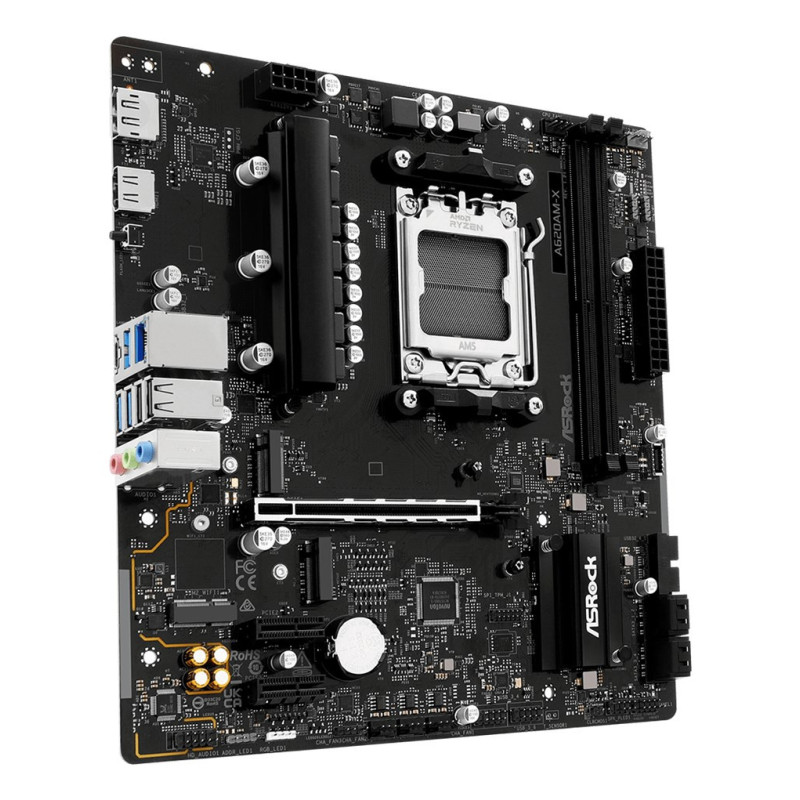

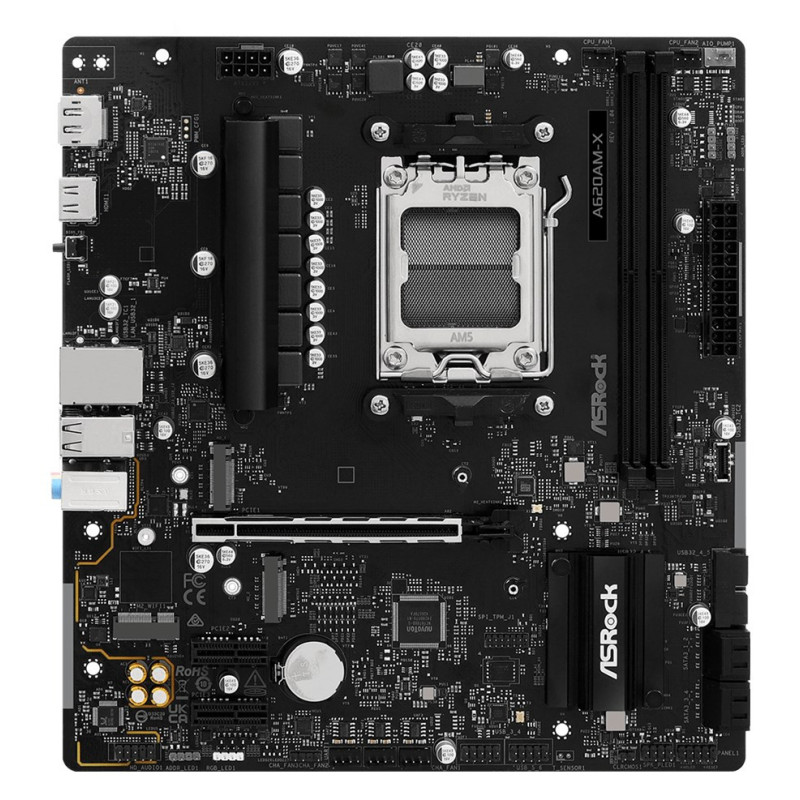

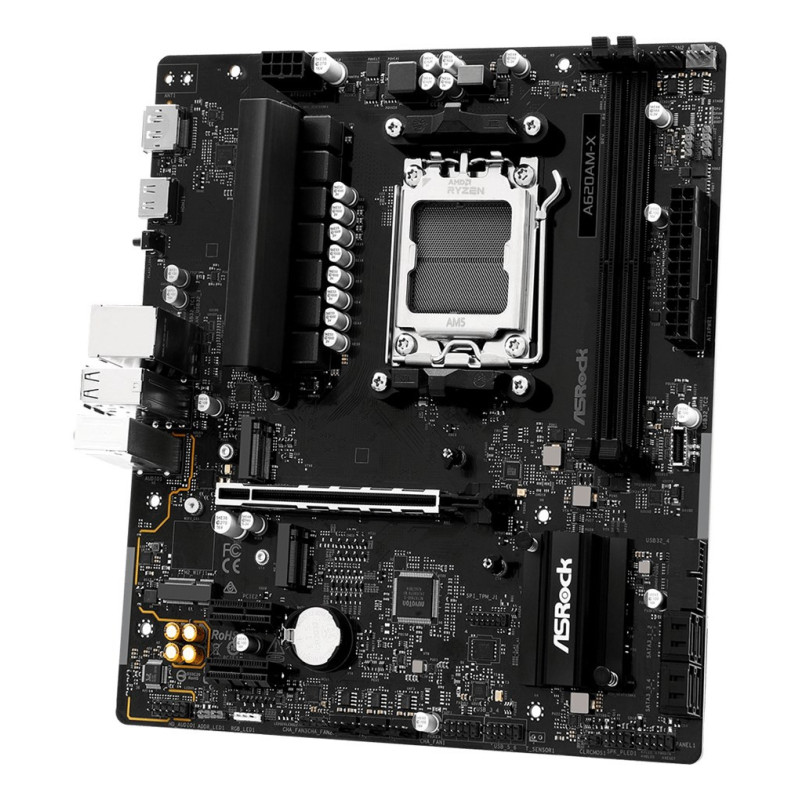

Asrock A620AM-X motherboard AMD A620 Socket AM5 micro ATX
Product reference:
6-A620AM-X
Asrock A620AM-X motherboard AMD A620 Socket AM5 micro ATX
Asrock A620AM-X motherboard AMD A620 Socket AM5 micro ATX
Product reference:
6-A620AM-X
Asrock A620AM-X motherboard AMD A620 Socket AM5 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Compatible processor series | AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, AMD Ryzen 7000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Graphics card family | AMD |
| On-board graphics card | Yes |
| Graphics card | AMD RDNA 2 |
| Maximum resolution | 3840 x 2160 pixels |
| Parallel processing technology support | Not supported |
| HDCP | Yes |
| High Dynamic Range (HDR) supported | Yes |
| HDCP version | 2.3 |
| Cooling type | Passive |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Motherboard chipset | AMD A620 |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC897 |
| Product colour | Black |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Unbuffered memory | Yes |
| Supported memory clock speeds | 8000 |
| Maximum internal memory | 128 GB |
| ECC сompatibility | ECC & Non-ECC |
| Width | 244 mm |
| Depth | 244 mm |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Dragon RTL8125BG |
| Bluetooth | No |
| ATX Power connector (24-pin) | Yes |
| TPM connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Front panel audio connector | Yes |
| USB 2.0 connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of RGB LED pin headers | 1 |
| Number of water pump connectors | 3 |
| Number of CPU fan connectors | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Audio connector | Yes |
| BIOS type | UEFI AMI |
| BIOS flashback button | Yes |
| Cables included | SATA |
| Manual | Yes |
| Screws included | Yes |
| RAID levels | 10, 1 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, NVMe, SATA III |
| Supported storage drive types | HDD & SSD |

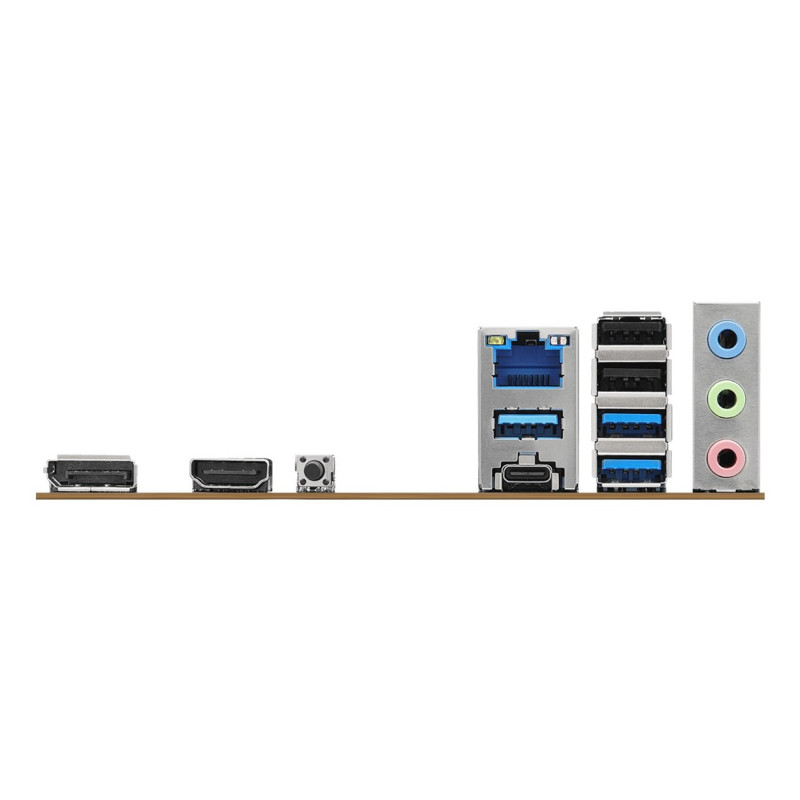

| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| USB 2.0 ports quantity | 2 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Rear speaker out | Yes |
| Line-in | Yes |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Intel Extreme Memory Profile (XMP) | Yes |
| AMD Extended Profiles for Overclocking (EXPO) | Yes |
