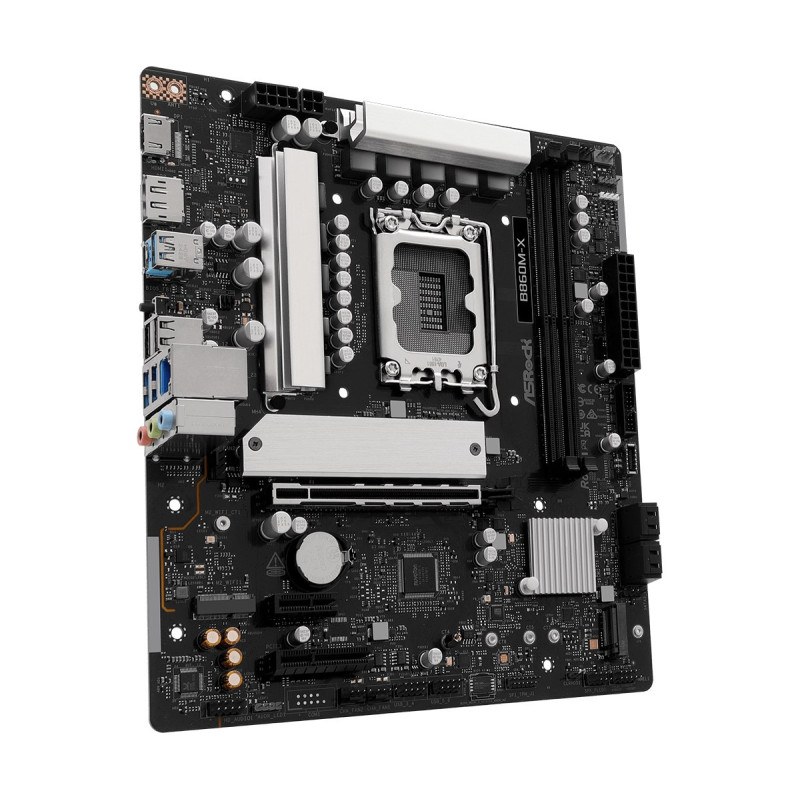

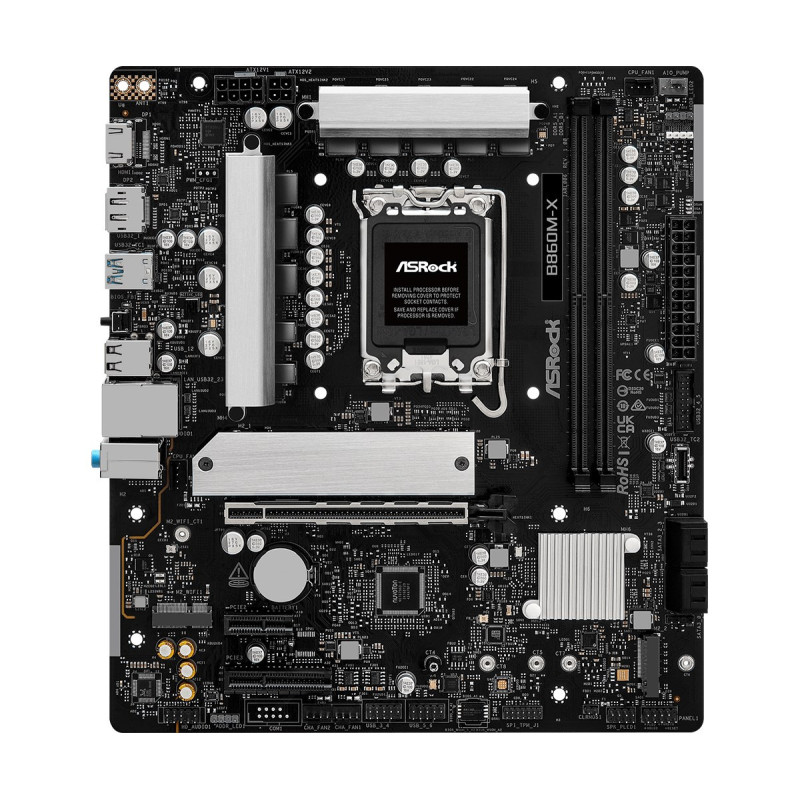

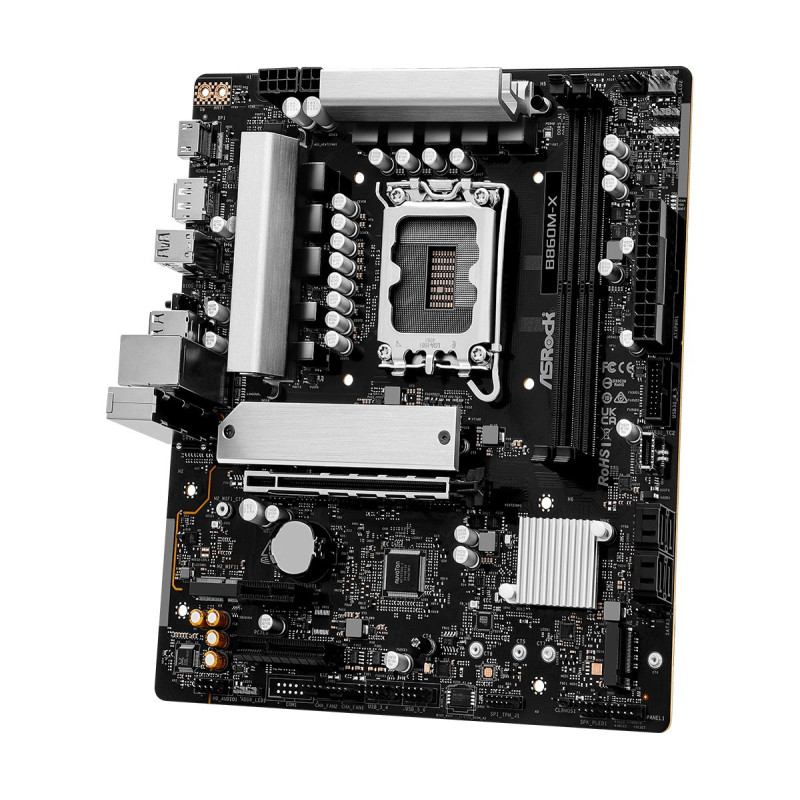

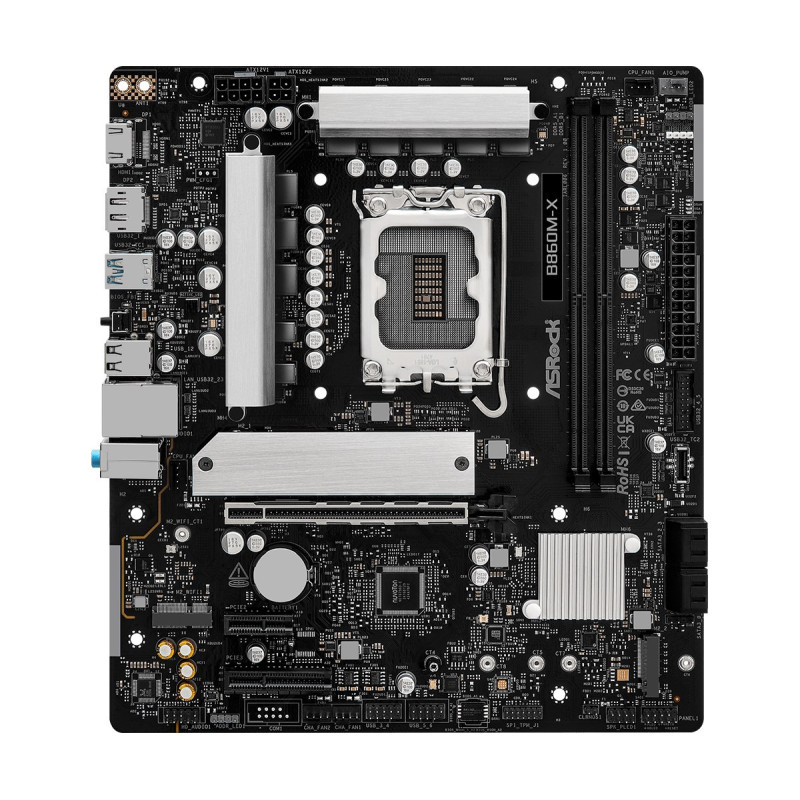

Asrock B860M-X Intel B860 LGA 1851 (Socket V1) micro ATX
Product reference:
6-B860M-X
Asrock B860M-X Intel B860 LGA 1851 (Socket V1) micro ATX
Asrock B860M-X Intel B860 LGA 1851 (Socket V1) micro ATX
Product reference:
6-B860M-X
Asrock B860M-X Intel B860 LGA 1851 (Socket V1) micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| On-board graphics card | Yes |
| Windows operating systems supported | Windows 11 x64 |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B860 |
| Audio chip | Realtek ALC897 |
| Product colour | Black |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 9066 MHz |
| Depth | 218 mm |
| Width | 244 mm |
| LAN controller | Dragon RTL8125BG |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Number of EPS power connectors (8-pin) | 1 |
| Number of CPU fan connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 2 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| RAID levels | 10, 5, 1 |
| RAID support | Yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 2 |
| Microphone in | Yes |
| Line-in | Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
