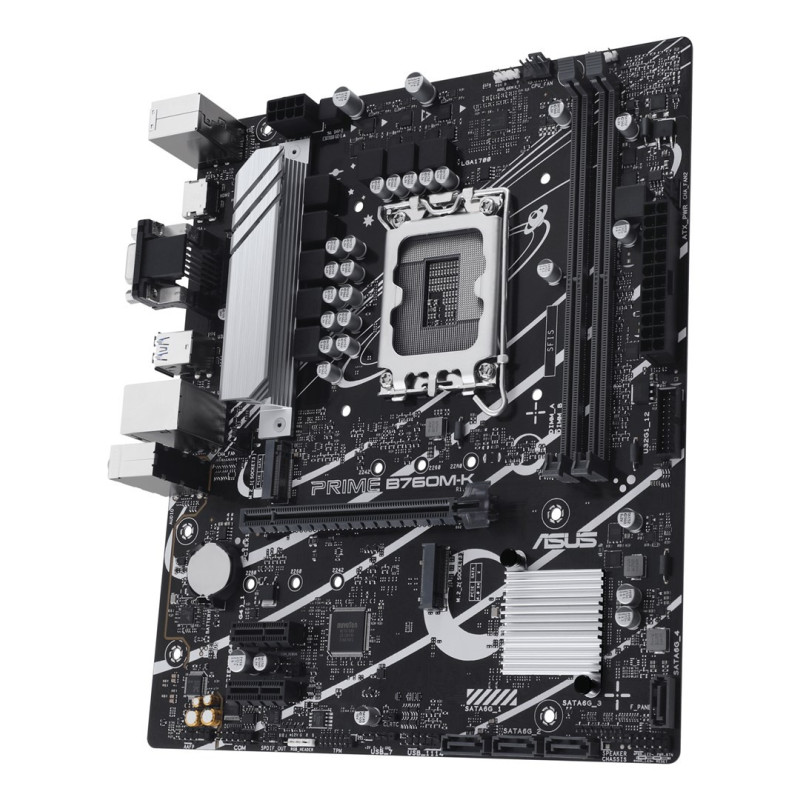

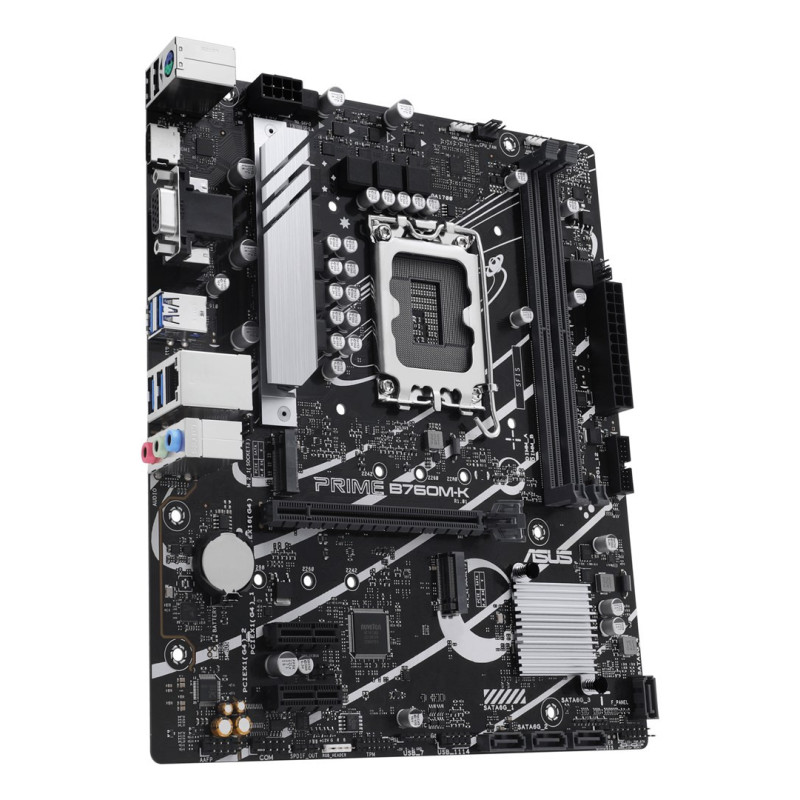

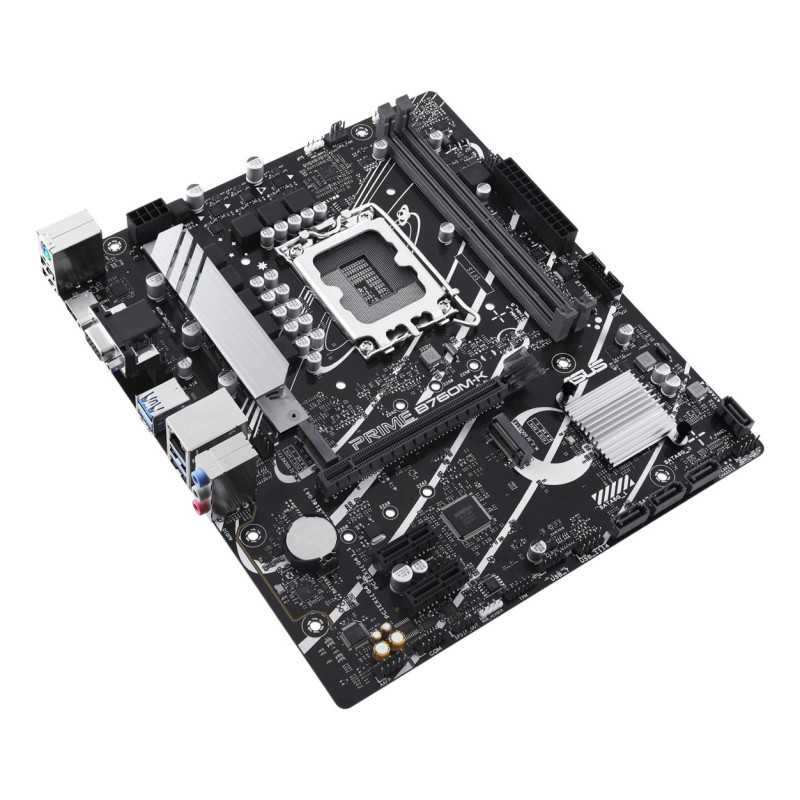

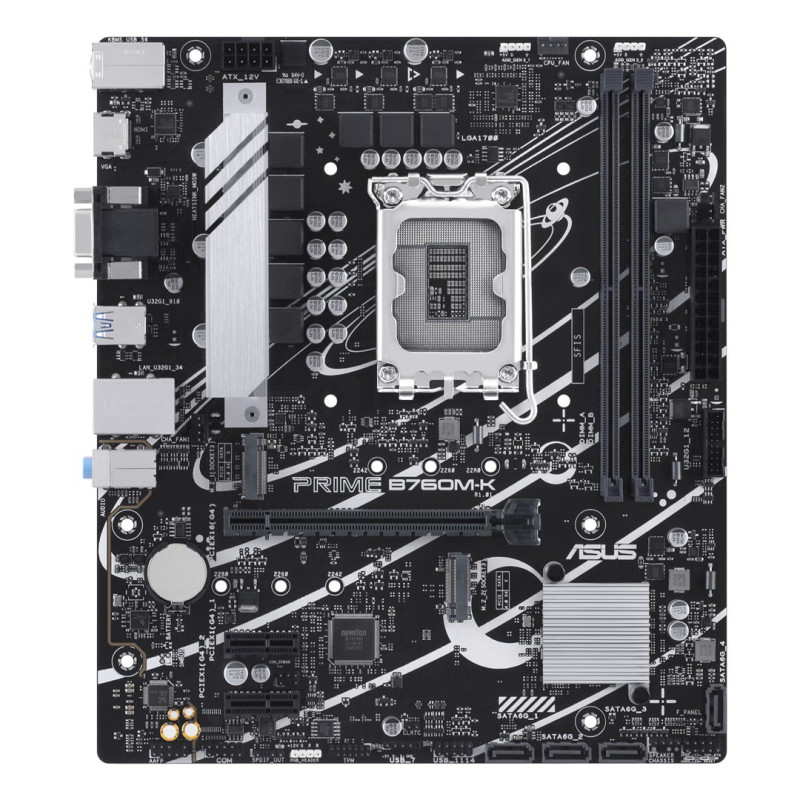

ASUS PRIME B760M-K Intel B760 LGA 1700 micro ATX
Product reference:
6-90MB1FI0-M1EAY0
ASUS PRIME B760M-K Intel B760 LGA 1700 micro ATX
ASUS PRIME B760M-K Intel B760 LGA 1700 micro ATX
Product reference:
6-90MB1FI0-M1EAY0
ASUS PRIME B760M-K Intel B760 LGA 1700 micro ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Compatible processor series | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3 |
| Supported processor sockets | LGA 1700 |
| Maximum number of SMP processors | 1 |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Parallel processing technology support | Not supported |
| Motherboard chipset family | Intel |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard form factor | micro ATX |
| Supported memory clock speeds | 6000, 7600, 6400, 6800, 7400, 5600, 7200, 5000, 5200, 6600, 5800, 5400, 8000, 7800, 6200, 7000, 4800 |
| Memory channels | Dual-channel |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 8000 MHz |
| Depth | 211 mm |
| Width | 244 mm |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 1 |
| S/PDIF out connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| RAID support | Yes |
| RAID levels | 1, 10, 5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 6 |
| Number of HDDs supported | 4 |
| S/PDIF out port | Yes |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x1 (Gen 4.x) slots | 2 |
