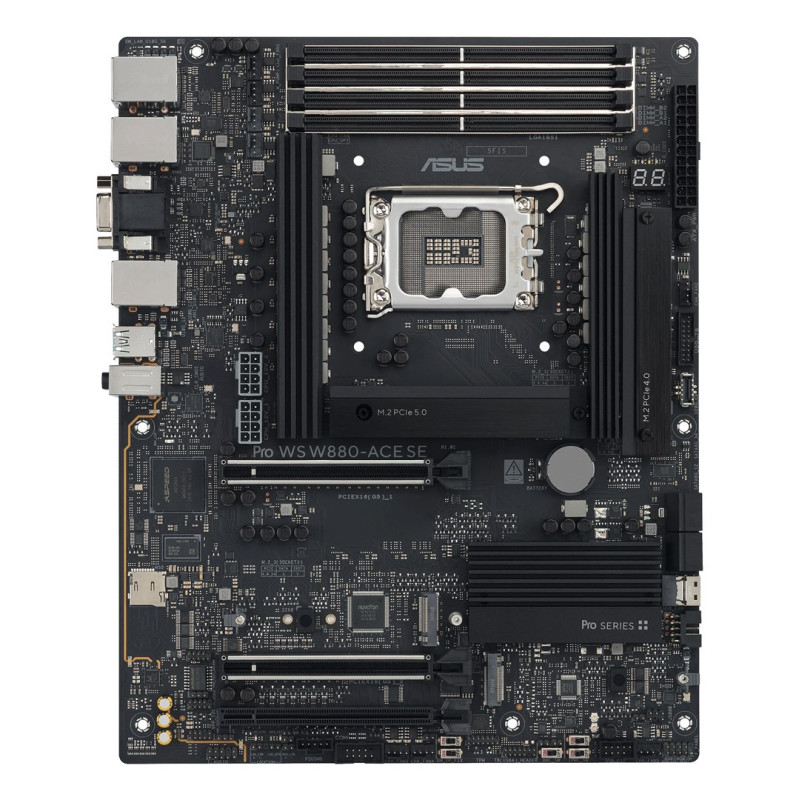

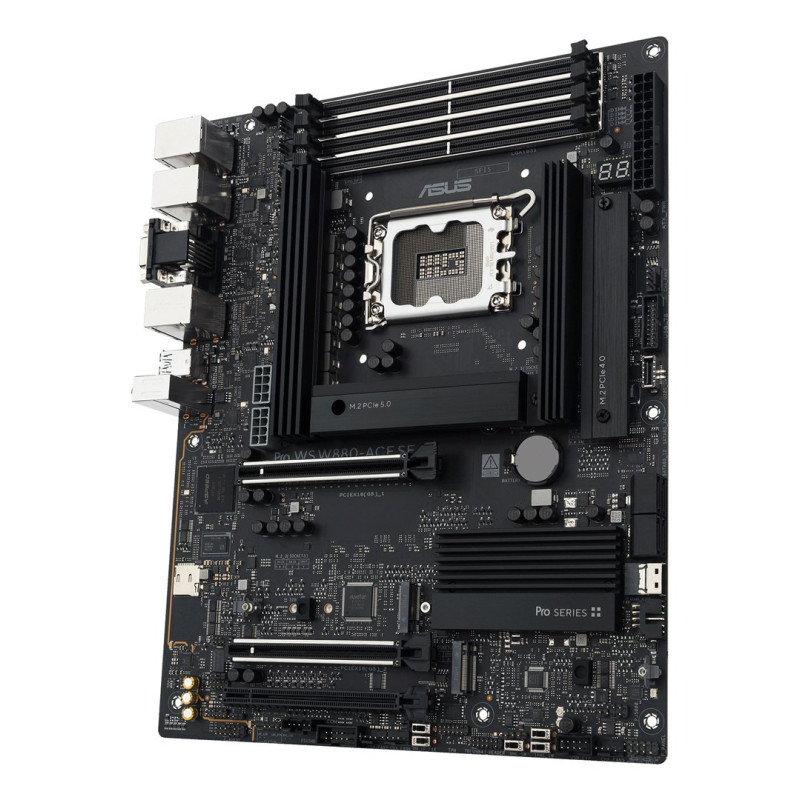

ASUS PRO WS W880-ACE SE Intel W880 LGA 1851 (Socket V1) ATX
Product reference:
6-90MB1KV0-M0EAY0
ASUS PRO WS W880-ACE SE Intel W880 LGA 1851 (Socket V1) ATX
ASUS PRO WS W880-ACE SE Intel W880 LGA 1851 (Socket V1) ATX
Product reference:
6-90MB1KV0-M0EAY0
ASUS PRO WS W880-ACE SE Intel W880 LGA 1851 (Socket V1) ATX
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | Intel LGA1851 |
| Processor socket | LGA 1851 (Socket V1) |
| Maximum resolution | 3840 x 2160 pixels |
| Parallel processing technology support | Not supported |
| Motherboard chipset | Intel W880 |
| Motherboard form factor | ATX |
| Cooling type | Passive |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Audio output channels | 7.1 channels |
| Component for | Workstation |
| Power source type | ATX |
| Motherboard chipset family | Intel |
| Product colour | Grey |
| Audio chip | Realtek ALC1220P |
| Unbuffered memory | Yes |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Supported memory clock speed (max) | 9066 MHz |
| Memory slots type | DIMM |
| Width | 305 mm |
| Depth | 244 mm |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Wi-Fi | No |
| USB 2.0 connectors | 2 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 5 |
| CPU fan connector | Yes |
| Front panel connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of water pump connectors | 1 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of temperature sensor headers | 1 |
| 12V power connector | Yes |
| Integrated SAS ports | 1 |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| BIOS type | UEFI AMI |
| Cables included | SATA |
| RAID levels | 10, 1, 5 |
| RAID support | Yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of storage drives supported | 8 |
| Number of HDDs supported | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| HDMI version | 2.1 |
| DisplayPort version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Thunderbolt ports quantity | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Number of M.2 (M) slots | 4 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 4th M.2 largest key size | 2280 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
